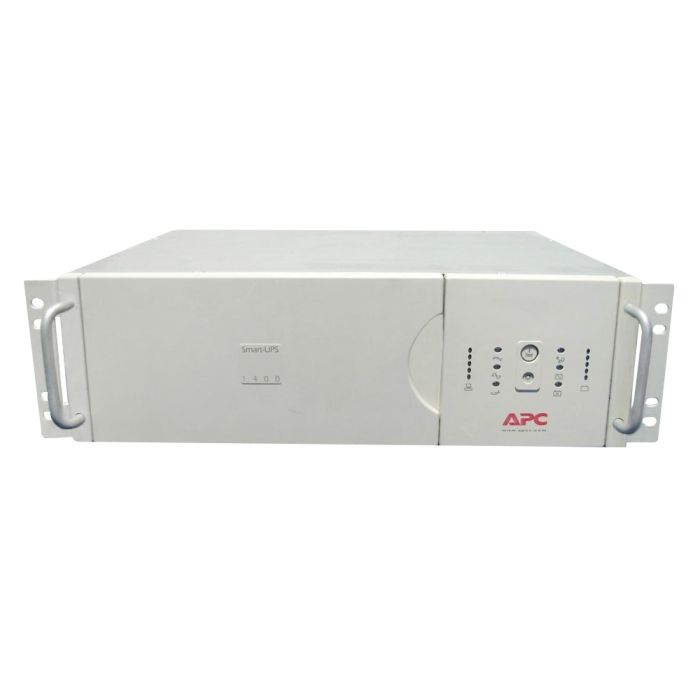

APC Smart-UPS 1400VA 950W RM 3U 120V SU1400RM - Refurbished
APC Smart-UPS 1400VA 950W RM 3U
Model: SU1400RM
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$219.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 1400VA 120V
Condition: New batteries, refurbished UPS
Part Number: SU1400RM
Maximum output: 950W / 1400VA
Typical backup time at half load: 22.7 minutes (475 Watts)
Typical backup time at full load: 6.4 minutes (950 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1400VA 950W RM 3U 120V SU1400RM Manual
SU1400RM - APC Smart-UPS 1400VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
950W |
||
|
Rated Power in VA |
1400VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
3U |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
4.2 h |
|
RBC Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC8 |
|
Battery Charge Power (Watts) |
80 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
5.20 in (13.2 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
14.02 in (35.6 cm) |
|
Net Weight |
58.11 lb(US) (26.36 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
86...154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1
|
|
Harmonic Distortion |
Less than 5 % at Full Load |
|
Maximum Configurable Power in VA |
1400VA |
|
Max Configurable Power (Watts) |
950W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA
|
Environmental:
|
Acoustic Level |
45 dBA
|
|
Heat Dissipation |
135 Btu/h
|
|
Operating Altitude |
0...10000 ft
|
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C)
|
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m)
|
|
Relative Humidity |
0…95%
|
|
Storage Relative Humidity |
0…95%
|
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional
|
|
Free Slots |
1
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection & Filtering:
|
Surge Energy Rating |
320 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
