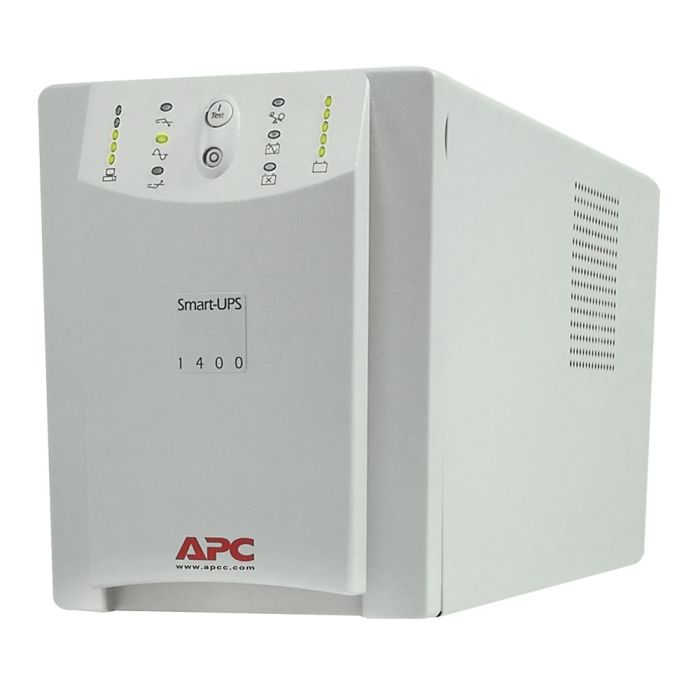

APC Smart-UPS 1400VA 950W Tower 120V SU1400BX120 - Refurbished
APC Smart-UPS 1400VA 950W SU1400BX120
Model: SU1400BX120
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$299.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 1400VA 950W Tower 120V Black, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: SU1400BX120
Maximum output: 950W / 1400VA
Typical backup time at half load: 25.2 minutes (475 Watts)
Typical backup time at full load: 7 minutes (950 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1400VA 950W Tower SU1400BX120 Manual
SU1400BX120 - APC Smart-UPS 1400VA 950W Tower Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
950W |
||
|
Rated Power in VA |
1400VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
0U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
||
|
Provided Equipment |
CD with software |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC7 |
|
Battery Charge Power (Watts) |
136 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
|
Variant Option |
Black |
Physical:
|
Color |
Black |
|
Height |
8.50 in (21.6 cm) |
|
Width |
6.69 in (17 cm) |
|
Depth |
17.28 in (43.9 cm) |
|
Net Weight |
53.11 lb(US) (24.09 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
86...154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1
|
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
1400VA |
|
Max Configurable Power (Watts) |
950W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Environmental:
|
Acoustic Level |
45 dBA
|
|
Heat Dissipation |
135 Btu/h |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0…95% |
|
Storage Relative Humidity |
0…95% |
Surge Protection & Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
