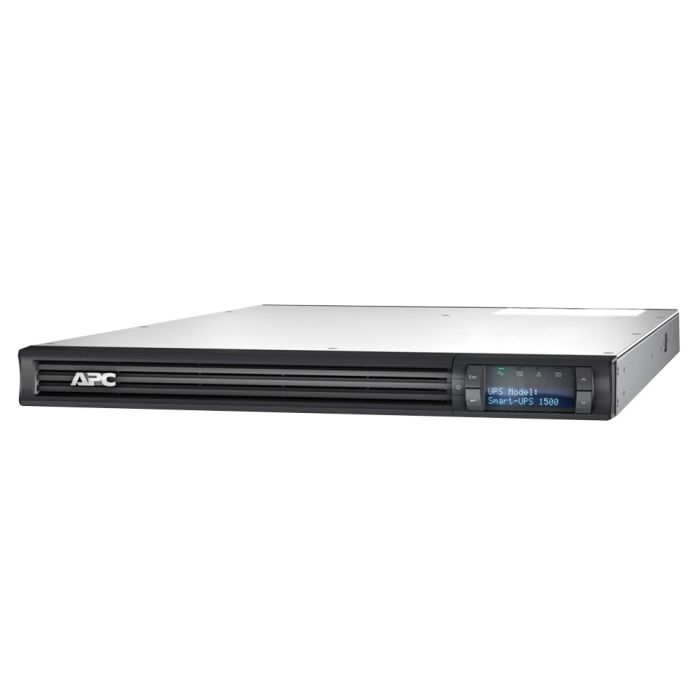

APC Smart-UPS 1500VA 1000W LCD RM 1U 120V Output: (4)5-15R, SMT1500RM1U - Refurbished
APC Smart-UPS 1500VA 1000W LCD RM 1U
Model: SMT1500RM1U
Input: NEMA 5-15P (15A, 120V)
Output: (4) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$499.99
Back Order
Manufacturer: APC
Model:Â APC Smart UPS 1500VA 1000W, LCD, RM, 1U, 120VÂ
Condition: New batteries, refurbished UPS
Part Number:Â SMT1500RM1U
Maximum output: 1000WÂ /Â 1500VA
Typical backup time at half load: 16.6 minutes (500 Watts)
Typical backup time at full load: 4.8 minutes (1000 Watts)
Warranty:Â 1 year full replacement warranty)
APC Smart UPS 1500VA 1000W RM SMT1500RM1U - User Manual
SMT1500RM1U - APC Smart UPS Specifications:
Main:
|
Main Input Voltage |
120 V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1000W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
1U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
4 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC88 |
|
Battery Power in VAH |
293 VAh runtime |
|
Battery Charge Power (Watts) |
73 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
1.73 inches (44mm, 4.4cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
26.18 inches (665mm, 66.5cm) |
|
Net Weight |
53.11 lbs. (24.09kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Maximum Input Current per Phase |
12 A |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1000W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
46 dBA |
|
Heat Dissipation |
88 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Free Slots |
1
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
