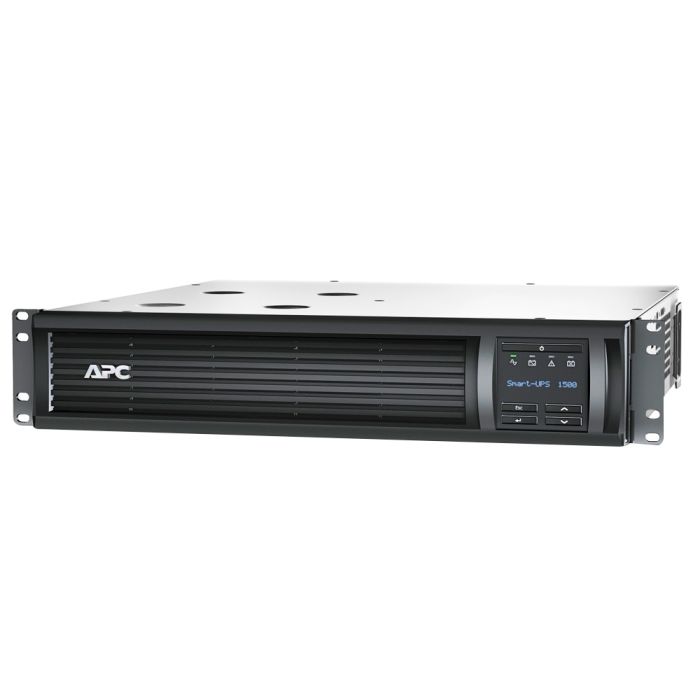

APC Smart-UPS 1500VA 1000W SmartConnect LCD RM 2U 15A 120V SMT1500RM2UC - Refurbished
APC Smart-UPS 1500VA 1000W LCD RM 2U with SmartConnect 120V
Model: SMT1500RM2UC
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Pure Sinewave Output
SmartConnect Cloud Monitoring Enabled
New batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$569.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS 1500VA 1000WÂ LCD, RM, 2U, 15A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMT1500RM2UC
Maximum output: 1000WÂ /Â 1500VA
Typical backup time at half load:Â 25.9 minutes (500 Watts)
Typical backup time at full load: 7.2 minutes (1000 Watts)
Warranty: 1 Year Full Replacement Warranty
Description:Â The APC Smart-UPS SMT1500RM2UC is a 1500VA / 1000W line-interactive UPS designed to provide reliable power protection for servers, network switches, storage devices, telecommunications equipment, and other critical IT applications. Featuring pure sine wave output, Automatic Voltage Regulation (AVR), a multifunction LCD display, and APC SmartConnect cloud-enabled monitoring, the SMT1500RM2UC delivers advanced power conditioning and remote management capabilities. Equipped with (6) NEMA 5-15R outlets, USB and serial communications, intelligent battery management, and industry-leading surge protection, this 2U rackmount UPS provides dependable backup power and simplified monitoring for business environments. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Â
APC Smart-UPS 1500VA 1000W SMT1500RM2UC - User Manual
Â
Â
SMT1500RM2UC - APC Smart-UPS 1500VA 1000W LCD Specifications:
| Key Features | Â |
| UPS Topology | Line Interactive |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Capacity | 1500VA / 1000W |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Other Input Voltage | 110V, 125V |
| Other Output Voltage | 110V, 125V |
| Waveform Type | Pure Sine Wave |
| Input Plug | NEMA 5-15P |
| Output Receptacles | (6) NEMA 5-15R |
| LCD Display | Multifunction LCD |
| SmartConnect Cloud Monitoring | Yes |
| Product Family | Smart-UPS |
| Product Web Sub-Family | Cloud-Enabled Monitoring |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 120V |
| Input Voltage Range | 75V - 154V Adjustable |
| Adjustable Range | 82V - 144V |
| Input Frequency | 50/60 Hz ±3% Auto-Sensing |
| Input Connection Type | NEMA 5-15P |
| Input Phase | Single-Phase |
| Number of Power Cords | 1 |
| Input Cord Length | 8 ft (2.44 m) |
| Â | Â |
| Output | Â |
| Rated Output Capacity | 1500VA |
| Rated Output Power | 1000W |
| Maximum Configurable Power | 1440VA |
| Maximum Configurable Power (Watts) | 1000W |
| Output Voltage | 120V |
| Output Frequency | 50/60 Hz ±3% Sync to Mains |
| Transfer Time | 6 ms Typical |
| Maximum Transfer Time | 10 ms |
| Waveform Type | Pure Sine Wave |
| Harmonic Distortion | Less Than 5% |
| Output Receptacles | (6) NEMA 5-15R |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge Protection | Yes |
| Power Conditioning | Full-Time Multi-Pole Noise Filtering |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Lead-Acid |
| Replacement Battery | APCRBC159 |
| RBC Quantity | 1 |
| Battery Capacity | 432 VAh |
| Typical Runtime @ Half Load | 25.9 Minutes (500W) |
| Typical Runtime @ Full Load | 7.2 Minutes (1000W) |
| Typical Recharge Time | 3 Hours |
| Battery Life | 4-6 Years |
| Battery Charge Power | 144W |
| Hot-Swappable Batteries | Yes |
| Extendable Runtime | No |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Â | Â |
| Communications & Management | Â |
| Control Panel | Multifunction LCD Status and Control Console |
| LCD Display | Load Status |
| Â | Battery Status |
| Â | Runtime Remaining |
| Â | Input Voltage |
| Â | Output Voltage |
| Â | Event Notifications |
| SmartConnect Cloud Monitoring | Yes |
| USB Port | Yes |
| Serial Port | Yes |
| SmartSlot | 1 |
| Network Management Card Support | Yes |
| AP9630 Compatible | Yes |
| AP9631 Compatible | Yes |
| AP9640 Compatible | Yes |
| AP9641 Compatible | Yes |
| Remote Monitoring | Supported |
| Remote Shutdown | Supported |
| Event Logging | Supported |
| Email Notifications | Supported with NMC |
| Environmental Monitoring | Supported with AP9631/AP9641 |
| Alarm Notifications | On Battery |
| Â | Low Battery |
| Â | Configurable Delay Alarms |
| Firmware Upgradable | Yes |
| Â | Â |
| Surge Protection & Filtering | Â |
| Surge Energy Rating | 680 Joules |
| Noise Filtering | Full-Time Multi-Pole Noise Filtering |
| IEEE Surge Let-Through | 0.3% |
| Response Time | Zero Clamping Response Time |
| Compliance | Meets UL 1449 |
| Â | Â |
| Physical | Â |
| Color | Black |
| Height | 3.39 in (86 mm) |
| Width | 17.0 in (432 mm) |
| Depth | 18.78 in (477 mm) |
| Net Weight | 58.42 lbs (26.5 kg) |
| Rack Height | 2U |
| Mounting Mode | Rack-Mounted |
| Mounting Location | Front |
| Mounting Preference | Lower |
| USB Compatible | Yes |
| Two Post Mountable | No |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Operating Humidity | 0-95% |
| Storage Humidity | 0-95% |
| Operating Altitude | Up to 10,000 ft |
| Storage Altitude | Up to 50,000 ft |
| Acoustic Noise | 45 dBA |
| Heat Dissipation | 225 BTU/hr |
| Â | Â |
| Conformance | Â |
| Product Certifications | cULus |
| Â | ENERGY STAR V2.0 (USA) |
| Condition | Refurbished UPS with New Batteries |
| Warranty | 1 Year Full Replacement Warranty Included |
