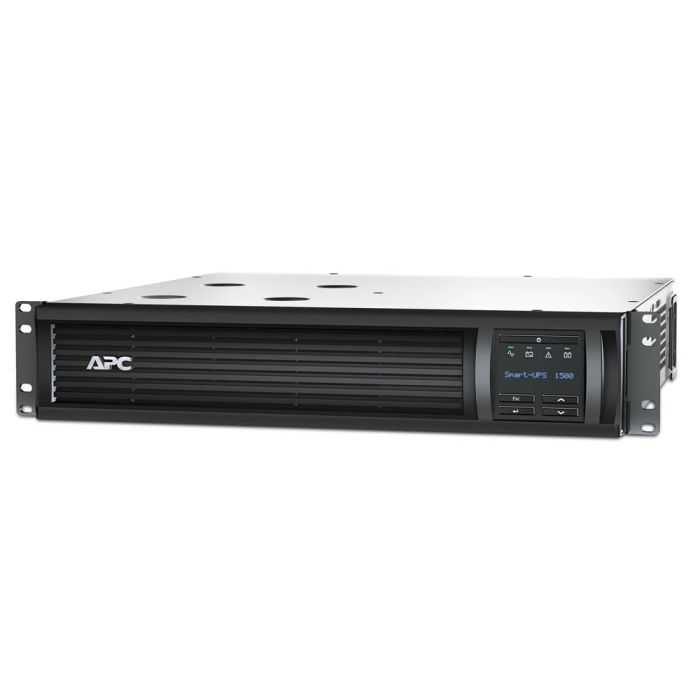

APC Smart-UPS 1500VA 1000W LCD RM 2U Output:(6) 5-15R 120V SMT1500RM2U - Refurbished

Manufacturer: APC
Model: APC Smart-UPS 1500VA 1000W, LCD, RM, 2U 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMT1500RM2U
Maximum output: 1000W / 1500VA

Waveform: Pure Sine Wave

Topology: Line-Interactive
Typical backup time at half load: 15.2 minutes (990 Watts)
Typical backup time at full load: 5.1 minutes (1980 Watts)
Warranty: 1 Year Full Replacement Warranty Included

Description: The APC Smart-UPS SMT1500RM2U is a line-interactive 2U rackmount UPS designed to provide reliable 1500VA / 1000W power protection for servers, network switches, storage systems, and other critical IT equipment. It features pure sine wave output, Automatic Voltage Regulation (AVR), a multifunction LCD display, hot-swappable lead-acid batteries, and six NEMA 5-15R battery-backed outlets. The integrated SmartSlot supports optional APC Network Management Cards, including the AP9630, AP9631, and AP9635, enabling secure remote monitoring and management when installed. This refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty.

APC Smart-UPS 1500VA 1000W 120V SMT1500RM2U - User Manual

SMT1500RM2U - APC Smart-UPS Specifications:

Product Overview
UPS Topology	Line-Interactive
Form Factor	Rackmount
Rack Height	2U
Power Rating	1500VA / 1000W
Maximum Configurable Power	1440VA / 1000W
Input Voltage	120V
Output Voltage	120V
Waveform Type	Pure Sine Wave
Input Connection	NEMA 5-15P
Output Connections	(6) NEMA 5-15R
Battery Type	Sealed Lead-Acid
Automatic Voltage Regulation (AVR)	Yes
LCD Display	Multifunction LCD
SmartSlot	Available (Supports Optional Network Management Card)
Included Accessories	USB Cable, Software CD, Documentation
User Interface, Alerts & Controls
Front Panel Display	Multifunction LCD Status & Control Console
LCD Functions	Load, Battery, Input/Output Status, Runtime, Configuration
Audible Alarm	On Battery, Low Battery, Overload and Fault Alarms
Alarm Management	User Configurable
Controls	Power ON/OFF and LCD Navigation
Self-Test	Automatic
Emergency Power Off (EPO)	Optional
Communications & Management
SmartSlot	One Available Expansion Slot
USB Port	Yes
Serial Port	Yes
Communication Interfaces	USB, Serial, SmartSlot
Remote Monitoring	Supported with Optional Network Management Card
Supported Protocols	HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet (with Optional NMC)
Email Notifications	Supported (with Optional NMC)
Event Logging	Supported
SNMP Trap Support	Supported (with Optional NMC)
Environmental Monitoring	Supported with AP9631/AP9635 and Temperature Sensor
Firmware Updates	Supported
User Authentication	Password Protected (with Optional NMC)
Security Features	HTTPS, SSH, SNMPv3 (with Optional NMC)
Management Software	APC PowerChute Business Edition
Remote Shutdown	Supported
SmartSlot Compatibility	AP9630 AP9631 AP9635 AP9640 AP9641 AP9613 AP9620
Input
Nominal Input Voltage	120V
Input Frequency	50/60 Hz ±3% Auto-Sensing
Input Voltage Range	82-144V
Adjustable Input Range	75-154V
Input Plug	NEMA 5-15P
Number of Power Cords	1
Cord Length	8 ft (2.44 m)
Input Phase	Single-Phase
Output
Output Capacity	1500VA / 1000W
Maximum Configurable Output	1440VA / 1000W
Output Voltage	120V
Output Frequency	50/60 Hz ±3% Synchronized to Utility
Harmonic Distortion	Less than 5%
Transfer Time	4 ms Typical / 8 ms Maximum
Waveform	Pure Sine Wave
Output Receptacles	(6) NEMA 5-15R
Surge Energy Rating	459 Joules
EMI/RFI Filtering	Full-Time Multi-Pole Noise Filtering
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Replacement Battery	APCRBC159
Battery Quantity	1
Battery Capacity	432 VAh
Typical Runtime at Half Load	25.9 Minutes (500W)
Typical Runtime at Full Load	7.2 Minutes (1000W)
Typical Recharge Time	3 Hours
Expected Battery Life	4-5 Years
Battery Charge Power	144W
Hot-Swappable Batteries	Yes
Extendable Runtime	No
Physical
Rack Height	2U
Height	3.50 in (89 mm)
Width	17.01 in (432 mm)
Depth	17.99 in (457 mm)
Net Weight	63.14 lbs (28.64 kg)
Mounting	Rackmount
Color	Black
USB Compatible	Yes
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Operating Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3,048 m)
Storage Altitude	Up to 50,000 ft (15,240 m)
Acoustic Noise	46 dBA
Heat Dissipation	90 BTU/hr
Product Certification	CSA
Conformance
Product Family	APC Smart-UPS LCD
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
