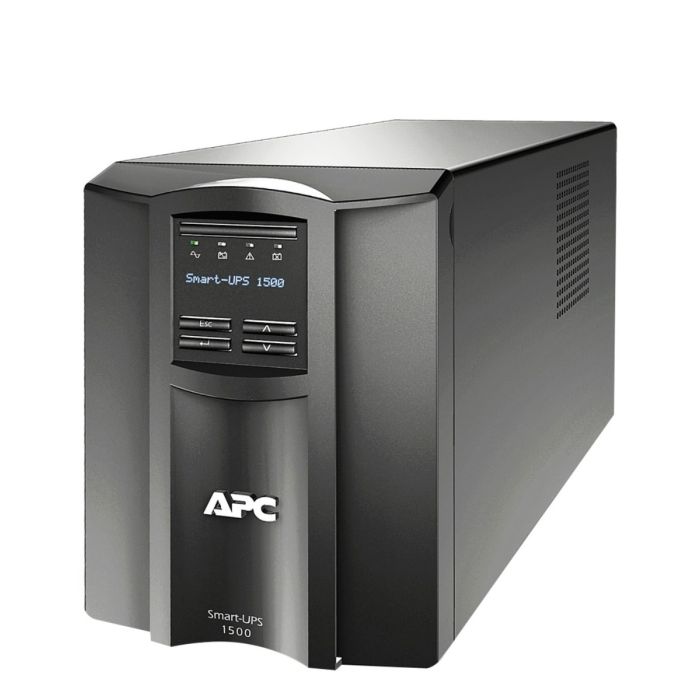

APC Smart Connect UPS 1500VA 1000W LCD 120V 15A Output:(8) 5-15R, SMT1500C - Refurbished
APC Smart-UPS 1500VA 1000W LCD SmartConnectÂ
Model: SMT1500C
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$539.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 1500VA 1000W, Tower, LCD, 120V, SmartConnect
Condition: New batteries, refurbished UPS
Part Number:Â SMT1500C
Maximum output: 1000WÂ /Â 1500VA
Typical backup time at half load: 23.1 minutes (500 Watts)
Typical backup time at full load: 6.5 minutes (1000 Watts)
Warranty: 1 year full replacement warranty
Â
APC Smart-UPS 1500VA 1000W Tower SMT1500C - User Manual
Â
SMT1500C - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Rated power in W |
1000W |
||
|
Rated power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC7 |
|
Battery power in VAH |
408 VAh runtime |
|
Battery Charge Power (Watts) |
136 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Cloud-enabled monitoring |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
8.62 inches (219mm, 21.9cm) |
|
Width |
6.73 inches (171mm, 17.1cm) |
|
Depth |
17.28 inches (439mm, 43.9cm) |
|
Net Weight |
54.23 lbs. (24.6kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-Mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1000W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
cULus |
Environmental:
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
225 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Free Slots |
1
|
|
Communication Port Support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
680 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
