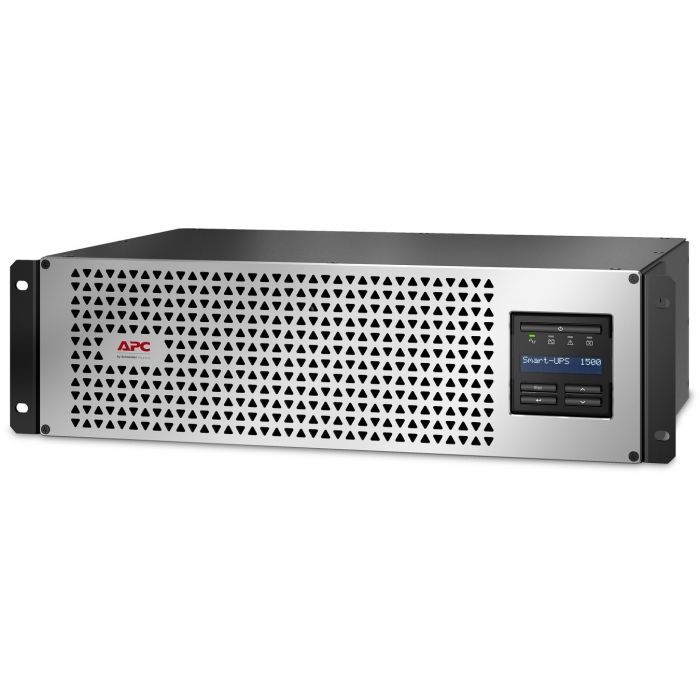

APC SmartConnect-UPS 1500VA 1350W Li-Ion RM 3U Output:(6)5-15R, SMTL1500RM3UC -Refurb
APC Smart-UPS Li-Ion 1500VA 1350W RM
Model: SMTL1500RM3UC
Input: NEMA 5-15PÂ (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
Refurbished UPS, Tested Original Batteries
1 Year Warranty Included
$1,799.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS 1500VA 1350W, RM, 3U, 120V, Li-Ion, SmartConnect
Condition: New batteries, refurbished UPS
Part Number:Â SMTL1500RM3UC
Maximum output: 1350WÂ /Â 1500VA
Typical backup time at half load: 12.8 minutes (675 Watts)
Typical backup time at full load: 5.0 minutes (1350 Watts)
Warranty:Â 1 year full replacement warranty)
Includes: SMTL1500RM2UC UPS, bezel, rack ears & rail Kit
The SMTL1500RM3UC has been cleaned, recalibrated, and tested per spec with the original internal lithium ion batteries.
APC Smart-UPS 1500VA 1350W RM SMTL1500RM3UC - User Manual
Â
SMTL1500RM3UC - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Output Voltage |
110V |
||
|
Rated power in W |
1350W |
||
|
Rated power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
3U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Li-Ion (Lithium Ion) |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Typical Recharge Time |
3 h |
|
Battery Life |
8-10 years |
|
Battery power in VAH |
164 VAh runtime |
|
Battery Charge Power (Watts) |
154 W rated |
General:
|
Product Web Sub-Family |
Cloud-enabled monitoring |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
5.16 inches (131mm, 13.1cm) |
|
Width |
17.24 inches (438mm, 43.8cm) |
|
Depth |
11.89 inches (302mm, 30.2cm) |
|
Net Weight |
42.99 lbs. (19.5kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Protection Type |
Circuit Breaker |
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
3 : 1 |
|
Graph Start Point |
68 |
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1350W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
NOM |
Environmental:
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
135 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0Â - 25000 ft (0.00Â - 7620.00 m) |
|
IP Degree of Protection |
IP20 |
|
Relative Humidity |
0-95 % non-condensing |
|
Storage Relative Humidity |
0-95 % non-condensing |
Communications & Management:
|
Audible Alarm |
Audible and visible alarms |
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes
|
|
Free Slots |
1
|
|
Communication Port Support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm
|
Surge Protection and Filtering:
|
Surge Energy Rating |
680 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
