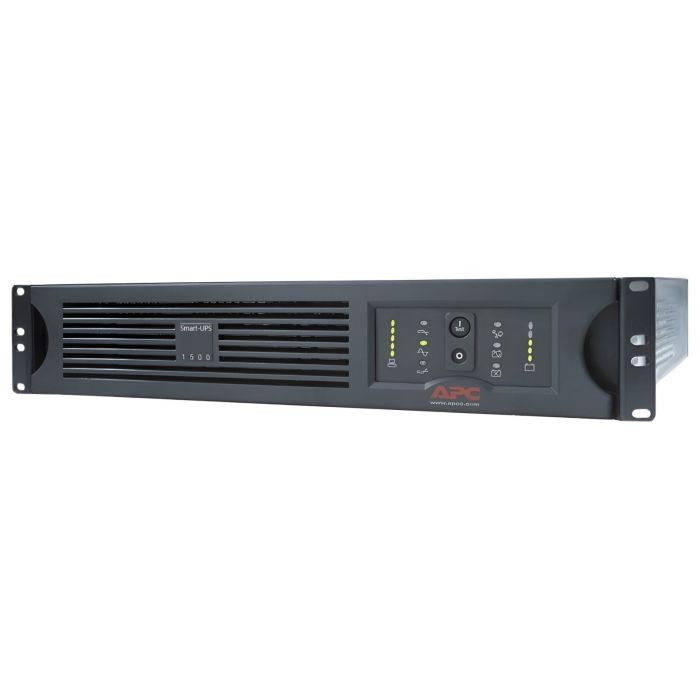

APC Smart-UPS 1500VA 980W RM 2U 120V AP9631 Pre-Install, DLA1500RM2UNC - Refurbished
APC Smart-UPS 1500VA 980W RM 2U 120V
Model: DLA1500RM2U + AP9631 (Pre-installed Network Card)
Input: NEMA 5-15P
Output: (6) NEMA 5-15R (Battery Backup)
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$599.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 1500VA 980W USB & Serial, RM 2U,15A, 120V, AP9631 NIC Included,
Condition: New Batteries, Refurbished UPS
Part Number: DLA1500RM2U + AP9631
Maximum output: 980WÂ /Â 1500VA
Typical backup time at half load: 26.5 minutes (490 Watts)
Typical backup time at full load: 7.4 minutes (980 Watts)Â
Warranty: 1 year full replacement warranty
APC Smart-UPS 1500VA 980W USB & Serial RM 2U DLA1500RM2UNC Manual
DLA1500RM2UNC - APC Smart-UPS 1500VA 980W USB & Serial RM 2U Specifications:Â
Key Features:
|
Output Power Capacity |
980W / 1.44kVA |
||
|
Rack Height |
2U |
||
|
Output Connections |
|
||
|
Nominal Output Voltage |
120V |
||
|
Nominal Input Voltage |
120V |
||
|
Input Connections |
|
||
|
Cord Length |
8ft (2.44meters) |
Output:
|
Max Configurable Power (Watts) |
980W / 1.0kVA |
|
Output Voltage Distortion |
Less than 5% at full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, |
|
Topology |
Line Interactive |
|
Waveform type |
Sine wave |
|
Transfer Time |
2ms typical |
Input:
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input voltage range for main operations |
82 - 144V |
|
Input voltage adjustable range for mains operation |
75 - 154V |
|
Number of Power Cords |
1 |
Batteries & Runtime:
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical Recharge Time |
3 hour(s) |
|
Replacement Battery |
RBC24 |
|
Expected Battery Life (years) |
4 - 6 |
|
RBC Quantity |
1 |
|
Battery Volt-Amp-Hour Capacity |
432 |
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, SmartSlot AP9631 Pre-Install, USB |
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Available SmartSlotâ„¢ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge Energy Rating |
459 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
3.5 inches (89mm, 8.9cm)
|
|
Maximum Width |
17.0 inches (432mm, 43.2cm) |
|
Maximum Depth |
18.0 inches (457mm, 45.7cm) |
|
Net Weight |
63.0 lbs. (28.64kg) |
|
Shipping Weight |
70.2 lbs. (31.91kg) |
|
Shipping Height |
9.88 inches (251mm, 25.1cm) |
|
Shipping Width |
23.38 inches (594mm, 59.4cm) |
|
Shipping Depth |
23.75 inches (603mm, 60.3cm) |
|
Color |
Black |
