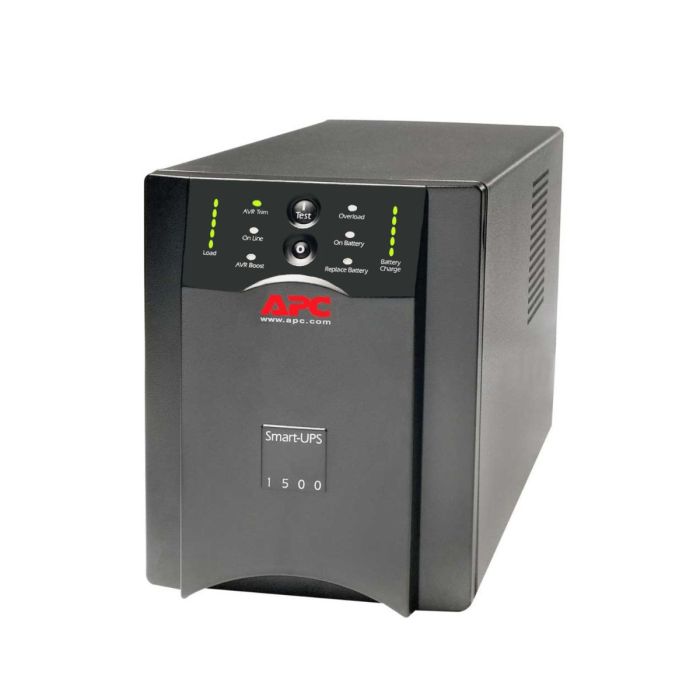

APC Smart UPS 1500VA 980W SUA1500 120V 15A Output: (8)5-15R Battery Backup - Refurbished
APC Smart-UPS 1500VA 980W USB & Serial 120VÂ
Model: SUA1500
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$359.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 1500VA 980W 120V
Condition: New batteries, refurbished UPS
Part Number: SUA1500
Maximum output: 980W / 1500VA
Typical backup time at half load: 23.9 minutes (490 Watts)
Typical backup time at full load: 6.7 minutes (980 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1500VA 980W SUA1500- User Manual
SUA1500 - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
rated power in W |
980W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
0U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of power module filled slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.50 in (21.6 cm) |
|
Width |
6.69 in (17 cm) |
|
Depth |
17.28 in (43.9 cm) |
|
Net Weight |
53.11 lb(US) (24.09 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two post mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
980W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
California (CEC) Battery Charger |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0 - 95 % |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
45 dBA
|
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Replacement Battery |
RBC7 |
|
Battery power in VAH |
408 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
459 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
