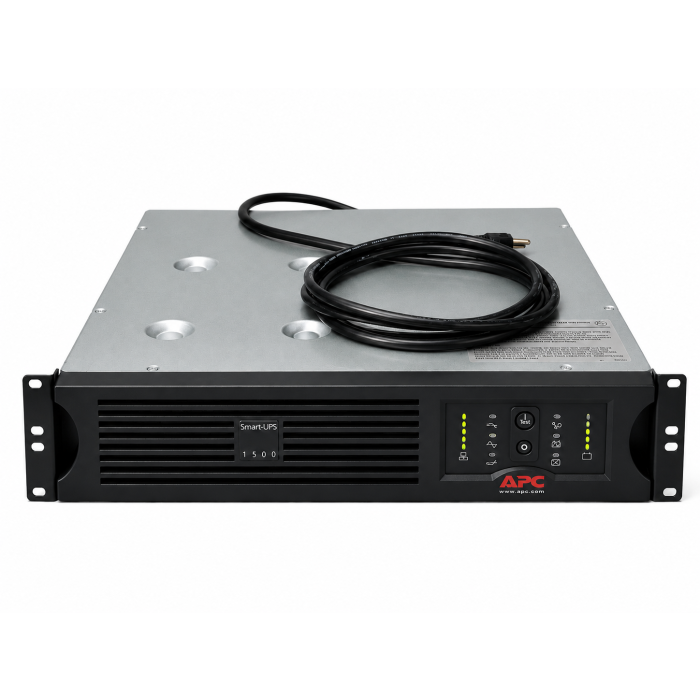

APC Smart-UPS 1500VA 980W RM 2U 120V AP9631 Pre-Install, SUA1500RM2UNC - Refurbished

Manufacturer: APC
Model: APC Smart-UPS 1500VA  980W USB & Serial, RM, 2U, 15A, 120V, AP9631
Condition: New Batteries, Refurbished UPS
Part Number: SUA1500RM2U + AP9631
Maximum Output: 980W / 1440VA
Topology: Line-Interactive
Waveform: Pure Sine Wave
Typical Backup Time at Half Load: 26.5 Minutes (490 Watts)
Typical Backup Time at Full Load: 7.4 Minutes (980 Watts)
Warranty: 1 Year Full Replacement Warranty Included

Description: The APC Smart-UPS SUA1500RM2U is a line-interactive rackmount UPS designed to provide reliable 980W / 1440VA power protection for servers, networking equipment, and other critical IT applications. It delivers pure sine wave output, Automatic Voltage Regulation (AVR), hot-swappable lead-acid batteries, and an integrated AP9631 Network Management Card for secure remote monitoring and management via Web, SNMP, SSH, and HTTPS. Equipped with a NEMA 5-15P input and (6) NEMA 5-15R battery backup outlets, this refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty.

APC Smart-UPS 1500VA 980W USB & Serial RM 2U SUA1500RM2UNC - User Manual

SUA1500RM2UNC - APC Smart-UPS 1500VA 980W Specifications:

Key Features:
UPS Topology	Line-Interactive
Form Factor	Rackmount
Rack Height	2U
Rated Power Capacity	1440VA / 980W
Waveform Type	Pure Sine Wave
Input Voltage	120V
Output Voltage	120V
Input Connection	NEMA 5-15P
Output Connections	(6) NEMA 5-15R
Input Cord Length	8 ft (2.44 m)
Automatic Voltage Regulation (AVR)	Yes
Hot-Swappable Batteries	Yes
AP9631 Network Management Card	Pre-Installed
LCD Display	No
LED Status Display	Yes
Application	Servers, networking equipment, VoIP systems and critical IT equipment
Output
Output Power Capacity	980W / 1440VA
Maximum Configurable Power	980W / 1440VA
Output Voltage	120V
Output Frequency	50/60 Hz Sync to Mains
Waveform Type	Pure Sine Wave
Transfer Time	2 ms Typical
Harmonic Distortion	Less Than 5% at Full Load
Output Receptacles	(6) NEMA 5-15R
Surge Energy Rating	459 Joules
Noise Filtering	Full-Time Multi-Pole Noise Filtering
Input
Input Voltage	120V
Input Voltage Range	82-144V
Adjustable Input Range	75-154V
Input Frequency	50/60 Hz ±3 Hz Auto-Sensing
Number of Power Cords	1
Input Plug	NEMA 5-15P
Input Phase	Single-Phase
Cable Length	8 ft (2.44 m)
Batteries & Runtime
Battery Type	Maintenance-Free Sealed Lead-Acid
Replacement Battery	RBC24
Battery Quantity	1
Battery Capacity	432 VAh
Typical Recharge Time	3 Hours
Battery Life	4-6 Years
Battery Charge Power	144W
Typical Runtime at Half Load	26.5 Minutes (490W)
Typical Runtime at Full Load	7.4 Minutes (980W)
Hot-Swappable Batteries	Yes
Extendable Runtime	No
Communications & Management
Network Management Card	AP9631 Pre-Installed
Network Management Slot	SmartSlot (Occupied)
Communication Ports	USB, DB9 RS-232
Remote Management	Web, SNMP, SSH, HTTPS
Power Management Software	APC PowerChute Business Edition
Remote Shutdown	Supported
Event Logging	Supported
Monitoring Functions	Input/Output Voltage, Battery Status, Runtime, Load, Alarms
Firmware Updates	Supported via AP9631
User Authentication	HTTPS & SNMPv3 Security
Environmental Monitoring	Supported with Optional Sensor
User Interface, Alerts & Controls
Control Panel	LED Status Display with Load and Battery Bar Graphs
Status Indicators	On-Line, On-Battery, Replace Battery, Overload
Audible Alarm	Configurable Low Battery and Fault Alarms
Emergency Power Off (EPO)	Optional
SmartSlot	1
Physical
Height	3.5 in (8.9 cm)
Width	17.0 in (43.2 cm)
Depth	18.0 in (45.7 cm)
Net Weight	63.14 lbs (28.64 kg)
Rack Height	2U
Mounting Mode	Rack-Mounted
Mounting Preference	Lower
Color	Black
USB Compatible	Yes
Included Accessories	Rack Rails, Mounting Brackets, USB Cable, RS-232 Cable, Software CD
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Operating Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft
Storage Altitude	Up to 50,000 ft
Acoustic Noise	46 dBA
Heat Dissipation	171 BTU/hr
Conformance
Product Certifications	CSA
Surge Protection Standard	UL 1449
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
