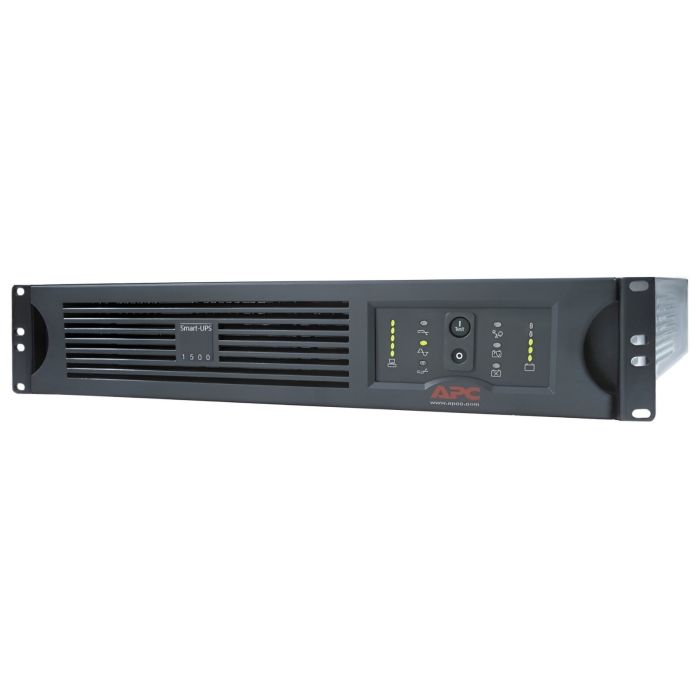

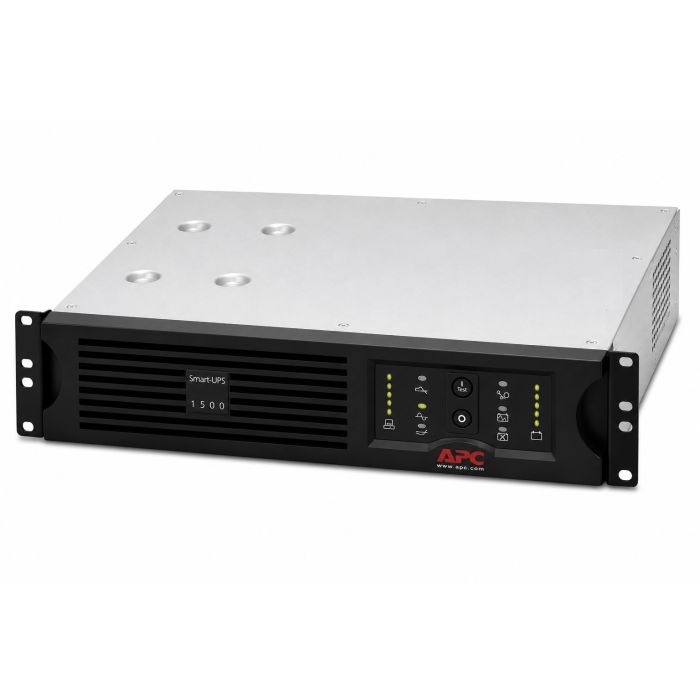

APC Smart-UPS 1500VA 980W Output: (6)5-15R(Battery Backup) 120V SUA1500RM2U - Refurbished

Manufacturer: APC
Model: APC Smart-UPS 1500VA 980W, RM, 2U, 120V
Condition: New Batteries, refurbished UPS
Part Number: SUA1500RM2U
Maximum output: 980W / 1500VA
Typical backup time at half load: 26.5 minutes (490 Watts)
Typical backup time at full load: 7.4 minutes (980 Watts)
Warranty: 1 year full replacement warranty

Description: The APC SUA1500RM2U is a 2U rackmount line-interactive UPS designed to deliver reliable backup power and voltage regulation for servers, network switches, storage devices, and other critical IT equipment. It provides 980W / 1440VA of pure sine wave output, Automatic Voltage Regulation (AVR), hot-swappable lead-acid batteries, and intelligent battery management to maximize runtime and battery life. Featuring a NEMA 5-15P input, (6) NEMA 5-15R battery-backed outlets, USB and RS-232 communication ports, and a SmartSlot for optional network management, this refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty. The specifications match the uploaded APC product datasheet and user manual.

APC Smart-UPS 1500VA 980W SUA1500RM2U - User Manual

SUA1500RM2U - APC Smart-UPS Specifications:

Product Overview
Power Rating	1440VA / 980W
UPS Topology	Line Interactive
Form Factor	Rackmount
Rack Height	2U
Input Voltage	120V
Output Voltage	120V
Waveform Type	Pure Sine Wave
Input Plug Type	NEMA 5-15P
Output Receptacles	(6) NEMA 5-15R
Battery Type	Sealed Lead-Acid
Hot-Swappable Batteries	Yes
AVR Support	Automatic Voltage Regulation
Intelligent Battery Management	Yes
Front Panel Display	LED Status Display
SmartSlot Expansion	Yes (1 Free Slot)
User Interface, Alerts & Controls
Front Panel Display	LED status display with load and battery bar graphs
Front Panel Indicators	Online, On Battery, AVR Boost, AVR Trim, Overload, Replace Battery
User Interface	LED monitoring and front-panel controls
Audible Alarm	On battery, low battery, overload and fault alarms
Alarm Management	Configurable audible alarms
Controls	Power ON/OFF, Self-Test
Emergency Power Off (EPO)	Optional
Battery Status Indicators	Battery charge level and replace battery indicators
Load Indicators	LED load level bar graph
Startup Diagnostics	Automatic self-test
UPS Diagnostics	Internal battery and system diagnostics
Alarm Silence Function	Supported
Communications & Management
SmartSlot	1 Expansion Slot
USB Port	Yes
Serial Port	DB9 RS-232
Communication Interfaces	USB, RS-232, SmartSlot
Management Software	APC PowerChute Business Edition
Remote Monitoring	Supported with optional Network Management Card
Event Logging	Supported through optional SmartSlot card
Firmware Updates	Via optional SmartSlot management card
Monitoring Functions	Input voltage, output load, battery status, runtime
Network Management	Optional via SmartSlot accessories
Input
Input Voltage	120V
Input Frequency	50/60 Hz ±3% Auto-Sensing
Input Voltage Range	82-144V
Adjustable Input Range	75-154V
Input Plug Type	NEMA 5-15P
Number of Power Cords	1
Cable Length	8 ft (2.44 m)
Input Phase	Single Phase
Output
Output Power Capacity	1440VA / 980W
Maximum Configurable Output	1440VA / 980W
Output Voltage	120V
Waveform	Pure Sine Wave
Topology	Line Interactive
Harmonic Distortion	Less than 5%
Transfer Time	2 ms Typical
Output Frequency	47-53 Hz / 57-63 Hz Sync to Utility
Output Connections	(6) NEMA 5-15R
Surge Energy Rating	459 Joules
Noise Filtering	Full-Time Multi-Pole EMI/RFI Filtering
AVR Protection	Automatic Voltage Regulation
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Replacement Battery	RBC24
Battery Quantity	1
Battery Capacity	432 VAh
Battery Recharge Time	3 Hours
Battery Life	4-6 Years
Battery Charge Power	144W
Typical Runtime @ 50% Load	26.5 Minutes (490W)
Typical Runtime @ Full Load	7.4 Minutes (980W)
Extendable Runtime	No
Hot-Swappable Batteries	Yes
Battery Monitoring	Intelligent Battery Diagnostics
User Replaceable Batteries	Yes
Physical
Height	3.5 in (8.9 cm)
Width	17.0 in (43.2 cm)
Depth	18.0 in (45.7 cm)
Net Weight	63.1 lbs (28.64 kg)
Rack Height	2U
Mounting Mode	Rack-Mounted
Mounting Preference	Lower
Mounting Location	Front
Color	Black
USB Compatible	Yes
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Relative Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3,048 m)
Storage Altitude	Up to 50,000 ft (15,240 m)
Acoustic Noise	46 dBA
Heat Dissipation	171 BTU/hr
Product Certification	CSA
Warranty	1 Year Full Replacement Warranty
Compatible SmartSlot Cards - Optional
Network Management Card	AP9606
Network Management Card 1	AP9617
Network Management Card 1	AP9618
Network Management Card 1	AP9619
Environmental Monitoring Card	AP9612TH
Dry Contact I/O Card	AP9610
Dry Contact I/O Card	AP9613
Building Management Card	AP9622
Interface Expander	AP9607
Interface Expander 2	AP9624
Legacy Communications Card	AP9620
