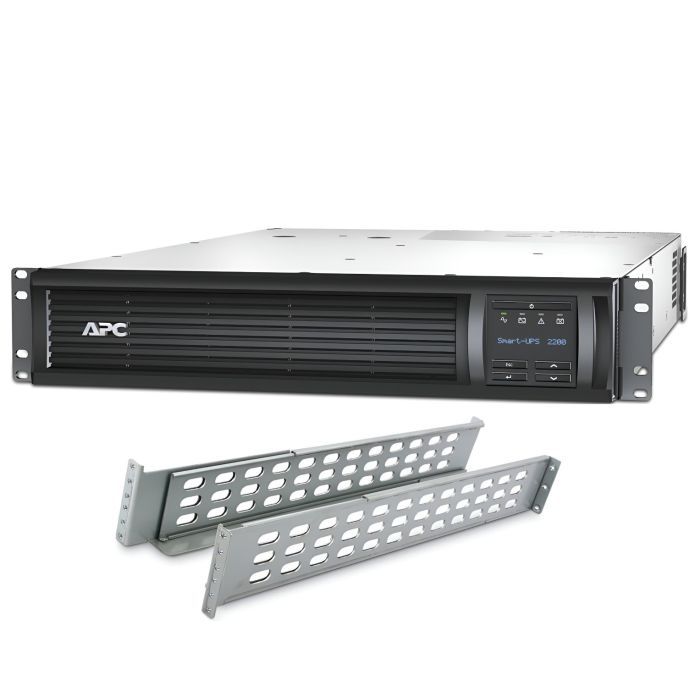

APC Smart-UPS SMT2200RM2U 1920VA 1920W + Rail Kit, Output: (2)5-20R, (6)5-15R - Refurb

APC Smart-UPS 1920VA 1920W LCD RM 2U 120V-20A + Rail Kit
Model: SMT2200RM2U
Input: NEMA 5-20P
Output: (2) 5-20R, (6) 5-15R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

In stock

Manufacturer: APC
Model: APC Smart-UPS 1920VA 1920W, LCD, RM, 2U, 20A, 120V + Rail Kit
Condition: New batteries, refurbished UPS
Part Number: SMT2200RM2U
Maximum output: 1920W / 1920VA
Typical backup time at half load: 15.5 minutes (960 Watts)
Typical backup time at full load: 5.2 minutes (1980 Watts)
Warranty: 1 year full replacement warranty

Description: The APC Smart-UPS SMT2200RM2U is a refurbished 2U rackmount line-interactive UPS providing 1920VA / 1920W of reliable backup power protection for servers, networking equipment, and critical IT systems. Featuring pure sine wave output, Automatic Voltage Regulation (AVR), hot-swappable lead-acid batteries, LCD status display, and an included APC Network Management Card 2 for remote monitoring and management. Equipped with a NEMA 5-20P input, (6) NEMA 5-15R and (2) NEMA 5-20R output receptacles, rail kit included, and backed by a 1-year full replacement warranty with new batteries installed.




APC Smart-UPS 1920VA 1920W LCD SMT2200RM2U - User Manual






SMT2200RM2U - APC Smart-UPS Specifications:



Product Overview:
Power Rating 1920VA / 1920W
UPS Topology Line Interactive
Form Factor Rackmount
Rack Height 2U
Input Voltage 120V
Output Voltage 120V
Waveform Type Pure Sine Wave
Input Plug Type

NEMA 5-20P

Output Receptacles

(6) NEMA 5-15R

(2) NEMA 5-20R

Battery Type Sealed Lead-Acid
Hot-Swappable Batteries Yes
AVR Support Automatic Voltage Regulation
Intelligent Battery Management Yes
LCD Status Display Yes
Included Accessories Rail Kit Included


User Interface, Alerts & Controls:
Front Panel Display LCD status display with UPS status, load, battery, and fault indicators
Front Panel Indicators Online, On Battery, Overload, Replace Battery, Fault
User Interface LCD front panel monitoring and configuration interface
Audible Alarm Battery operation, low battery, overload, fault alarms
Alarm Management Configurable audible alarms and notifications
Controls Power ON/OFF, self-test, mute, configuration controls
Emergency Power Off (EPO) Supported
Bypass Functions Automatic and manual internal bypass
Status Monitoring Input/output voltage, battery, load, runtime, diagnostics
Event Notifications Visual and audible alerts
Battery Status Indicators Runtime, charge level, replace battery alerts
Startup Diagnostics Automatic self-test
UPS Diagnostics Internal fault and overload monitoring
Display Information Load %, battery %, voltage, alarm status
User Controls LCD navigation and front-panel configuration
Alarm Silence Function Supported


Communications & Management:
Pre-Installed Network Card APC Network Management Card 2
Network Management Slot Integrated SmartSlot (occupied)
Environmental Monitoring Supported via installed management card
Interface Ports RS-232, SmartSlot, EPO
Serial Port DB9 RS-232
USB Port No
Remote Monitoring Supported
Supported Protocols SNMP, HTTP, HTTPS, Email Alerting
Remote Access Full Web/SNMP remote management
Firmware Updates Supported via Network Management Card
Event Logging UPS events, alarms, diagnostics logging
Monitoring Functions Input/output voltage, battery, load, runtime
Management Software APC PowerChute Business Edition
Watchdog / Auto-Reboot Supported
User Authentication Password-protected remote access
Network Integration Enterprise monitoring system compatible
Email Notifications Supported
SNMP Trap Support Supported
Remote Shutdown Capability Supported
SmartSlot Expansion Included
Management Features Remote UPS configuration and diagnostics


Input:
Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input Voltage Range 75 - 154V Adjustable
Number of Power Cords 1
Input Plug Type NEMA 5-20P
Input Phase Single Phase
Cable Length 8 ft (2.44 m)
Efficiency at Full Load High Efficiency AVR Operation


Output:
Output Power Capacity 1920W / 1920VA
Maximum Configurable Power 1980W / 2200VA
Output Voltage Regulation ±5%
Harmonic Distortion Less than 5%
Waveform Type Pure Sine Wave
Transfer Time 4ms Typical / 8ms Maximum
Output Frequency 50/60 Hz Sync to Mains
Surge Protection Yes
Surge Energy Rating 530 Joules
Power Conditioning Multi-pole noise filtering
AVR Protection Automatic Voltage Regulation
Output Connections (6) NEMA 5-15R, (2) NEMA 5-20R
Internal Bypass Automatic and Manual


Batteries & Runtime:
Battery Type Lead-Acid Battery
Battery Quantity 1 RBC43
Replacement Battery RBC43
Typical Recharge Time 3 Hours
Battery Life 3-5 Years
Battery Power in VAh 494 VAh
Battery Charge Power 164W
Typical Runtime at Half Load 15.5 Minutes (960W)
Typical Runtime at Full Load 5.2 Minutes (1920W)
Extendable Runtime No
Hot-Swappable Batteries Yes
Battery Monitoring Intelligent battery diagnostics
Battery Replacement User-replaceable


Physical:
Height 3.39 in (8.6 cm)
Width 18.90 in (48 cm)
Depth 26.89 in (68.3 cm)
Net Weight 93.28 lbs. (42.31 kg)
Rack Height 2U
Mounting Mode Rack-mounted
Mounting Preference Lower
Color Black
USB Compatible Yes
Included Rail Kit Yes


Environmental:
Operating Temperature 32 - 104 °F (0 - 40 °C)
Storage Temperature 5 - 113 °F (-15 - 45 °C)
Relative Humidity 0 - 95%
Storage Relative Humidity 0 - 95%
Operating Altitude 0 - 10000 ft
Storage Altitude 0 - 50000 ft
Audible Noise 55 dBA
Heat Dissipation 215 BTU/hr
Certifications CSA
Environmental Suitability Enterprise rack and server room environments
