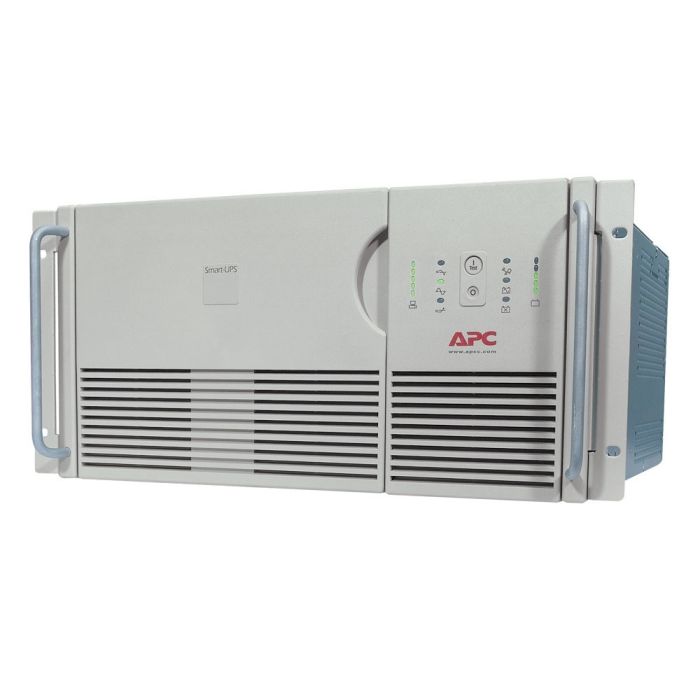

APC Smart-UPS 2200VA 1600W RM 5U 120V SU2200RM - Refurbished
APC Smart-UPS 2200VA 1600W RM 5U SU2200RM
Model: SU2200RM
Input: NEMA 5-20P (120V - 20A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$369.99
Out of stock
Manufacturer: APC
Model: APC Smart-UPS 2200VA 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: SU2200RM
Maximum output: 1600W / 2200VA
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1600W SU2200RM Manual
SU2200RM - APC Smart-UPS 2200VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
1600W |
||
|
Rated Power in VA |
2200VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
5U |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
4.5 h |
|
RBC Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC11 |
|
Battery Power in VAH |
816 VAh runtime |
|
Battery Charge Power (Watts) |
0 |
|
Redundant |
No |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of power module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Net Weight |
130.27 lb(US) (59.09 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
130.0 lbs. (59.09kg) |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1600 W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0…95% |
|
Storage Relative Humidity |
0…95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
320 J |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
