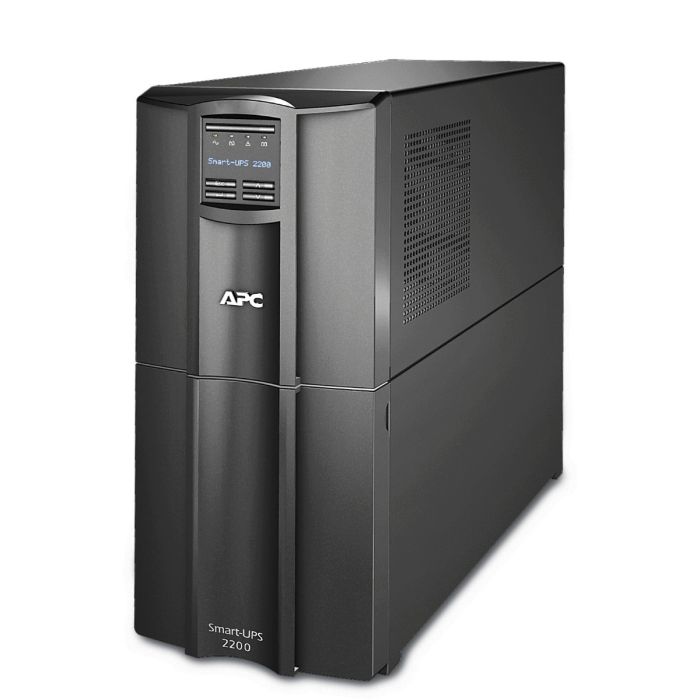

APC Smart-UPS 2200VA 1980W Tower Card AP9631 Pre-Install, SMT2200-NC -Refurbished
APC Smart-UPS 2200VA 1980W LCD AP9631 Pre-Install, 120V - 20A
Model: SMT2200-NC
Input: NEMA 5-20P (120V - 20A)
Output: (8) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
$749.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 2200VA LCD Tower, 20A 120V AP9631 Pre-Install
Condition: New Batteries, Refurbished UPS
Part Number: SMT2200-NC
Maximum output: 1980WÂ /Â 2200VA
Typical backup time at half load: 22.5 minutes (990 Watts)
Typical backup time at full load: 7.5 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1980W LCD Tower SMT2200-NC - User Manual
SMT2200-NC - APC Smart-UPS 2200VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
1920W |
||||
|
Rated Power in VA |
1920VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
7.72 in (19.6 cm) |
|
Depth |
21.42 in (54.4 cm) |
|
Net Weight |
112.24 lb(US) (50.91 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75Â - 154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1980W |
|
Transfer Time |
4ms typical: 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
45 dBA
|
|
Heat Dissipation |
275 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â - 95% |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
RBC55 |
|
Battery Power in VAH |
702 VAh runtime |
|
Battery Charge Power (Watts) |
233 W rated |
Communications & Management:
|
Control Panel |
Multi-function LCD Status and Control Console |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
530 J |
|
Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m |
