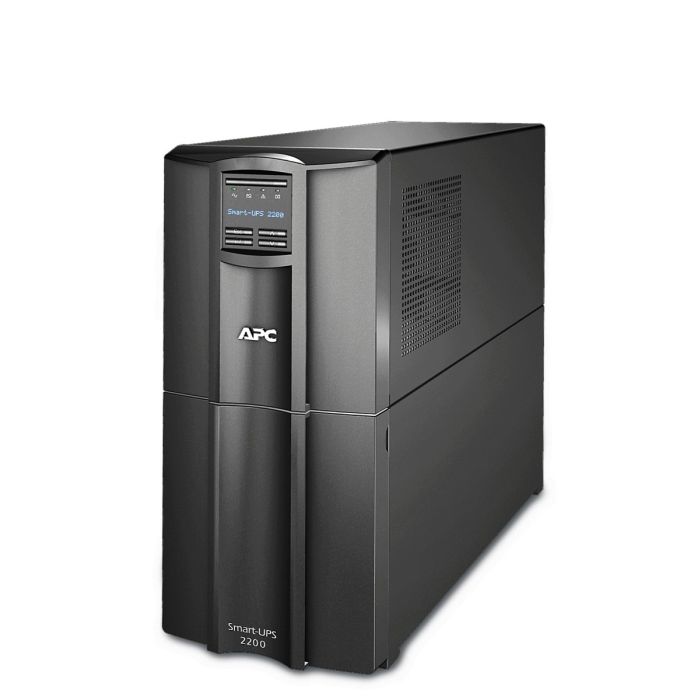

APC Smart-UPS 2200VA 1980W LCD Tower SmartConnect 20A 120V SMT2200C - Refurbished
APC Smart-UPS 2200VA 1980W LCD with SmartConnect
Model: SMT2200C
Input: NEMA 5-20P (120V - 20A)
Output: (8) NEMA 5-15R, (2) NEMA 5-20R
Maximum Output: 2200VA / 1980W
Line-Interactive UPS - Sine Wave Output
Automatic Voltage Regulation (AVR)
LCD Status & Control Display
SmartConnect Ethernet Remote Monitoring
SmartSlot Expansion Slot
New Batteries, Refurbished UPS
1 Year Replacement Warranty Included
$749.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 2200VA 1980W LCD Tower, 20A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMT2200C
Maximum Output: 1980W / 2200VA
Typical Backup Time at Half Load: 22.5 Minutes (990W)
Typical Backup Time at Full Load: 7.5 Minutes (1980W)
Input: NEMA 5-20P, 120V / 20A
Output: (8) NEMA 5-15R, (2) NEMA 5-20R
Topology: Line-Interactive
Output Waveform: Sine Wave
Battery: New Batteries Installed
Replacement Battery: APC RBC55
Management: SmartConnect Ethernet Port + SmartSlot Expansion Slot
Warranty: 1 Year Full Replacement Warranty
Description: The APC Smart-UPS SMT2200C is a 2200VA / 1980W line-interactive tower UPS designed for servers, networking equipment, storage systems, and other critical electronics. It features AVR, sine-wave output, a multifunction LCD display, (8) NEMA 5-15R and (2) NEMA 5-20R outlets, USB and serial connectivity, an integrated SmartConnect Ethernet port for cloud-based remote monitoring, and a SmartSlot expansion slot for compatible management accessories. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Â
Â
APC Smart-UPS 2200VA 1980W Tower SMT2200C - User Manual
Â
Â
SMT2200C - APC Smart-UPS Specifications:
| Main | Â | ||||
| Manufacturer | APC | ||||
| Model | SMT2200C | ||||
| Product Family | APC Smart-UPS | ||||
| Product Type | Uninterruptible Power Supply (UPS) | ||||
| UPS Topology | Line-Interactive | ||||
| Form Factor | Tower | ||||
| Maximum Configurable Power | 2200VA / 1980W | ||||
| Main Input Voltage | 120V | ||||
| Other Input Voltages | 110V / 125V | ||||
| Main Output Voltage | 120V | ||||
| Other Output Voltages | 110V / 125V | ||||
| Input Connection | NEMA 5-20P | ||||
| Output Connections | (8) NEMA 5-15R, (2) NEMA 5-20R | ||||
| Output Waveform | Sine Wave | ||||
| Automatic Voltage Regulation (AVR) | Yes | ||||
| SmartConnect | Integrated | ||||
| Condition | New Batteries, Refurbished UPS | ||||
| Warranty | 1 Year Full Replacement Warranty | ||||
| Â | Â | ||||
| Input | Â | ||||
| Nominal Input Voltage | 120V | ||||
| Other Input Voltages | 110V / 125V | ||||
|
Input Connection Type |
|
||||
| Recommended Electrical Service | 120V / 20A | ||||
| Input Frequency | 50/60 Hz ±3 Hz Auto-Sensing | ||||
| Input Voltage Range | 82–144V | ||||
| Adjustable Input Voltage Range | 75–154V | ||||
| Input Cable Length | 6 ft (1.83 m) | ||||
| Number of Input Cables | 1 | ||||
| Â | Â | ||||
| Output | Â | ||||
| Nominal Output Voltage | 120V | ||||
| Other Output Voltages | 110V / 125V | ||||
| Maximum Configurable Power | 2200VA | ||||
| Maximum Configurable Power | 1980W | ||||
|
Output Connection Type |
|
||||
| Output Frequency | 50/60 Hz ±3 Hz, Synchronized to Mains | ||||
| Waveform Type | Sine Wave | ||||
| Harmonic Distortion | Less Than 5% | ||||
| Transfer Time | 6 ms Typical / 10 ms Maximum | ||||
| Automatic Voltage Regulation | Yes | ||||
| Â | Â | ||||
| Batteries & Runtime | Â | ||||
| Battery Type | Lead-Acid Battery | ||||
| Typical Runtime @ Half Load | 22.5 Minutes (990W) | ||||
| Typical Runtime @ Full Load | 7.5 Minutes (1980W) | ||||
| Replacement Battery | APC RBC55 | ||||
| RBC Quantity | 1 | ||||
| Typical Recharge Time | 3 Hours | ||||
| Battery Life | 3–5 Years | ||||
| Battery Power | 816 VAh Capacity / 816 VAh Runtime | ||||
| Battery Charge Power | 271W Rated | ||||
| User-Replaceable Battery | Yes | ||||
| Extendable Runtime | No | ||||
| External Battery Pack Support | No | ||||
| Â | Â | ||||
| Communications & Management | Â | ||||
| Control Panel | Multifunction LCD Status and Control Console | ||||
| LCD Display | Yes | ||||
| SmartConnect | Integrated | ||||
| SmartConnect Interface | Ethernet | ||||
| SmartConnect Function | Cloud-Based Remote UPS Monitoring | ||||
| SmartSlot Expansion Slot | 1 | ||||
| Optional Network Management Card Support | Yes, via SmartSlot | ||||
| USB Communication | Yes | ||||
| Serial Communication | Yes | ||||
| Remote Monitoring | Supported | ||||
| UPS Status Monitoring | Supported | ||||
| Battery Status Monitoring | Supported | ||||
| Event / Alarm Monitoring | Supported | ||||
| Emergency Power Off (EPO) | Yes | ||||
| Audible Alarm | On-Battery Alarm | ||||
| Low Battery Alarm | Distinctive Low-Battery Alarm | ||||
| Alarm Delays | Configurable | ||||
| Â | Â | ||||
| Surge Protection & Filtering | Â | ||||
| Surge Energy Rating | 530 Joules | ||||
| Noise Filtering | Full-Time Multi-Pole Noise Filtering | ||||
| IEEE Surge Let-Through | 0.3% | ||||
| Clamping Response Time | Zero | ||||
| Â | Â | ||||
| Physical | Â | ||||
| Form Factor | Tower | ||||
| Color | Black | ||||
| Height | 17.13 in (435 mm) | ||||
| Width | 7.72 in (196 mm) | ||||
| Depth | 21.42 in (544 mm) | ||||
| Net Weight | 112.24 lb (50.91 kg) | ||||
| Mounting Mode | Not Rack-Mountable | ||||
| Mounting Location | Front | ||||
| USB Compatible | Yes | ||||
| Â | Â | ||||
| Environmental | Â | ||||
| Operating Temperature | 32–104°F (0–40°C) | ||||
| Storage Temperature | 5–113°F (-15–45°C) | ||||
| Operating Relative Humidity | 0–95% | ||||
| Storage Relative Humidity | 0–95% | ||||
| Operating Altitude | 0–10,000 ft (0–3,048 m) | ||||
| Storage Altitude | 0–50,000 ft (0–15,240 m) | ||||
| Acoustic Level | 45 dBA | ||||
| Online Thermal Dissipation | 275 BTU/hr | ||||
| Â | Â | ||||
| Conformance & Certifications | Â | ||||
| Product Certification | cULus | ||||
| ENERGY STAR | ENERGY STAR V2.0 (USA) |
