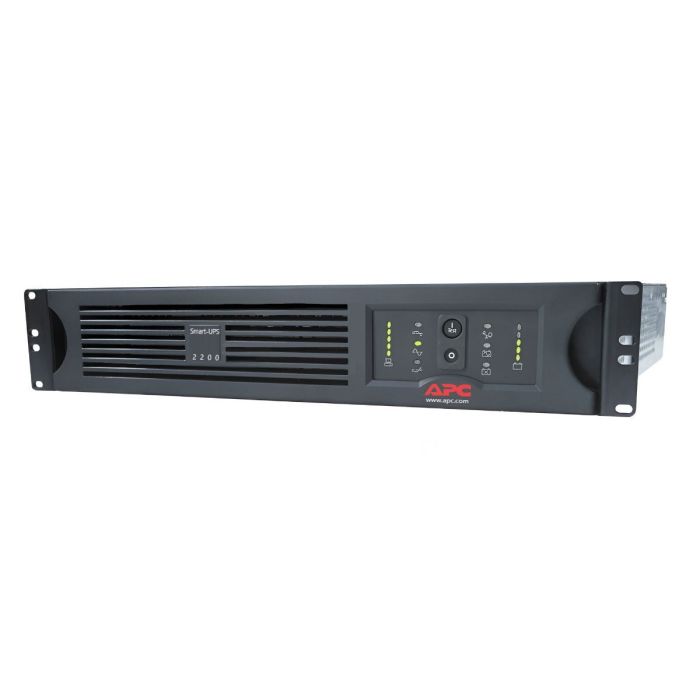

APC Smart-UPS 2200VA 1980W 20A 120V Output: (6)5-15R, (2)5-20R SUA2200RM2U - Refurbished
APC Smart-UPS 2200VA 1980W USB & Serial RM 2U
Model: SUA2200RM2U
Input: NEMA 5-20P (120V - 20A)
Output: (6) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$549.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 2200VA 1980W RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SUA2200RM2U
Maximum output: 980W / 2200VA
Typical backup time at half load: 15.7 minutes (990 Watts)
Typical backup time at full load: 5.2 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1980W RM 2U SUA2200RM2U - User Manual
SUA2200RM2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
rated power in W |
1980W |
||||
|
Rated Power in VA |
2200VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Battery Power in VAH |
490 VAh runtime |
|
Battery Charger Power |
163 W Rated |
Â
General:
|
Number of power module filled slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
19.0 inches (483mm, 48.3cm) |
|
Depth |
26.0 inches (660mm, 66.0cm) |
|
Net Weight |
96.0 lbs. (43.64kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
75 - 154 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
2200VA |
|
Maximum Configurable Power in W |
1980W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
EfficiEfficiency |
95 % full load |
|
Output Frequency |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
47 dBA
|
|
Heat Dissipation |
300 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
