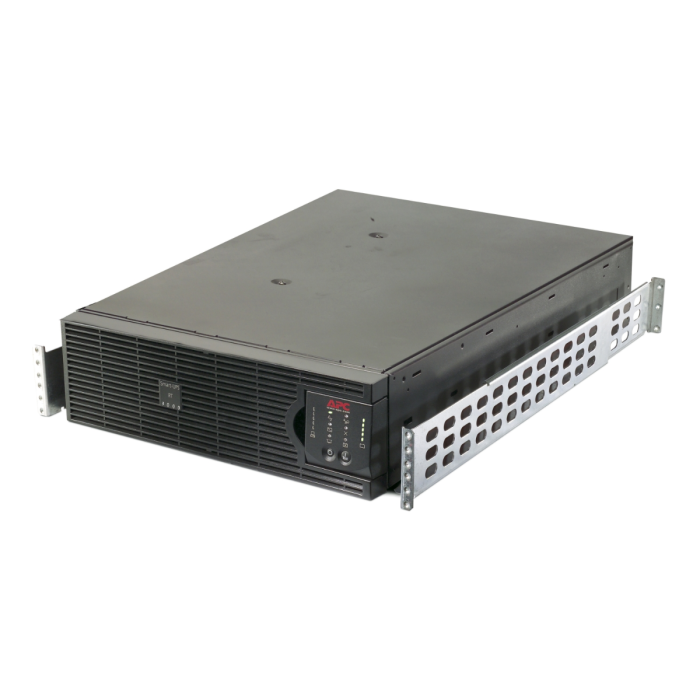

APC SURTD3000RMXLT3U Smart-UPS 3kVA 2100W Double Conversion Online 208/240V - Refurbished

APC Smart-UPS RT 3000VA 2100W RM 3U 208V
Model: SURTD3000RMXLT3U
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Double Conversion Online UPS - Sinewave Output
Extended Runtime - Supports SURT192RMXLBP3U External Battery Packs
Optional Network Management - AP9640, AP9641, AP9630 or AP9631
New Batteries, Refurbished UPS
1 Year Warranty Included

In stock

Manufacturer: APC
Model: APC Smart-UPS RT 3000VA 2100W, RM, 3U, 208V
Condition: New Batteries, Refurbished UPS
Part Number: SURTD3000RMXLT3U
Maximum output: 2100W / 3000VA
Typical backup time at half load: 33.9 minutes (1050 Watts)
Typical backup time at full load: 14.1 minutes (2100 Watts)
Input: NEMA L6-30P, 208V / 240V
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Topology: Double Conversion Online
Output Waveform: Sine Wave
Output Voltage: Configurable 208V / 240V
Extended Runtime: Yes – Supports SURT192RMXLBP3U External Battery Packs
Network Management: Optional – (1) Available SmartSlot
Internal Bypass: Automatic & Manual
Warranty: 1 Year Full Replacement Warranty

Description: The APC Smart-UPS RT SURTD3000RMXLT3U is a 3000VA / 2100W double-conversion online 3U rackmount UPS designed for servers, networking equipment, and other critical systems. It provides configurable 208V / 240V pure sine wave output, internal automatic/manual bypass, and extended runtime support with SURT192RMXLBP3U external battery packs. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.






APC Smart-UPS RT 3000VA 2100W SURTD3000RMXLT3U - User Manual








SURTD3000RMXLT3U - APC Smart-UPS RT Specifications:

Main
Manufacturer APC by Schneider Electric
Product Family Smart-UPS RT / Smart-UPS On-Line
Model / Part Number SURTD3000RMXLT3U
Product Type Uninterruptible Power Supply (UPS)
Rated Power 3000VA / 2100W
Maximum Configurable Power 3000VA / 2100W
Topology Double Conversion Online
Output Waveform Sine Wave
Form Factor Rackmount
Rack Height 3U
Main Input Voltage 208V AC
Other Input Voltage 240V AC
Main Output Voltage 208V AC
Other Output Voltage 240V AC
Configurable Output Voltage 208V / 240V
Extended Runtime Yes
Redundant No

Input
Main Input Voltage 208V AC
Other Input Voltage 240V AC

Input Connection Type

NEMA L6-30P

Input Phase Single-Phase
Input Frequency 50/60 Hz ±5 Hz, Auto-Sensing
Input Voltage Range 160–280V
Input Cord Length 8 ft (2.44 m)
Number of Input Cables 1

Output
Output Capacity 3000VA
Output Power 2100W
Main Output Voltage 208V AC
Other Output Voltage 240V AC
Configurable Nominal Output Voltage 208V or 240V

Output Connection Type

(2) NEMA L6-20R

(2) NEMA L6-30R

Output Waveform Sine Wave
Output Frequency 50/60 Hz ±3 Hz, User Adjustable ±0.1 Hz, Synchronized to Mains
Harmonic Distortion Less than 3%
Crest Factor 3:1
Efficiency at Full Load 92%
Bypass Type Internal Bypass – Automatic & Manual

Batteries & Runtime
Battery Type Lead-Acid
Internal Batteries Included
Included Battery Modules 2
Replacement Battery APCRBC140
RBC Quantity 1
Battery Capacity 960 VAh Runtime
Typical Recharge Time 2.5 Hours
Battery Charging Power 382W Rated
Expected Battery Life 3–5 Years
Battery Replacement User-Replaceable
Extended Runtime Yes
Compatible External Battery Pack SURT192RMXLBP3U
Battery Capacity with (1) SURT192RMXLBP3U 2820 VAh
Battery Capacity with (2) SURT192RMXLBP3U 4740 VAh
Battery Capacity with (3) SURT192RMXLBP3U 6660 VAh
Battery Capacity with (4) SURT192RMXLBP3U 8580 VAh
Battery Capacity with (5) SURT192RMXLBP3U 10500 VAh
Battery Capacity with (6) SURT192RMXLBP3U 12420 VAh
Battery Capacity with (8) SURT192RMXLBP3U 16260 VAh
Battery Capacity with (10) SURT192RMXLBP3U 20100 VAh
Typical Backup Time at Half Load 33.9 Minutes (1050W)
Typical Backup Time at Full Load 14.1 Minutes (2100W)
New Batteries Yes – Installed

Communications & Management
Network Management Card Included No
SmartSlot (1) Available SmartSlot
Network Management Optional via Compatible APC SmartSlot Network Management Card
Compatible Network Management Cards AP9640, AP9641, AP9630, AP9631
AP9640 Network Management Card 3 – Optional
AP9641 Network Management Card 3 with Environmental Monitoring – Optional
AP9630 Network Management Card 2 – Optional / Legacy
AP9631 Network Management Card 2 with Environmental Monitoring – Optional / Legacy
Web-Based Management Available with Compatible Network Management Card
SNMP Management Available with Compatible Network Management Card
Remote UPS Monitoring Available with Compatible Network Management Card
Remote UPS Management Available with Compatible Network Management Card
Remote Event / Alarm Notifications Available with Compatible Network Management Card
Environmental Monitoring Available with AP9641 or AP9631 and Compatible Environmental Sensors
Ethernet Connectivity Available with Compatible Network Management Card
Serial Communication Yes
Serial Port Yes
USB Port Yes
UPS Connectivity Serial Port, USB Port & SmartSlot
Emergency Power Off (EPO) Yes


User Interface, Alerts & Controls
Audible Alarm Yes
On-Battery Alarm Yes
Low-Battery Alarm Distinctive Low-Battery Alarm
Overload Alarm Continuous Tone
Emergency Power Off (EPO) Yes

Power Management Features
Online Double-Conversion Operation Yes
Continuous Power Conditioning Yes
Internal Automatic Bypass Yes
Internal Manual Bypass Yes
Configurable Output Voltage 208V / 240V
Extended Runtime Capability Yes
External Battery Support Yes
Network Management Capability Yes – Optional SmartSlot Card

Physical
Primary Form Factor Rackmount
Rack Height 3U
Color Black
Height 5.12 in (130 mm)
Width 17.01 in (432 mm)
Depth 25.98 in (660 mm)
Net Weight 120.26 lb (54.55 kg)
Mounting Mode Rack-Mounted
Mounting Location Front
Mounting Preference Lower
Two-Post Mountable No

Environmental
Operating Temperature 32–104°F (0–40°C)
Storage Temperature 5–113°F (-15–45°C)
Operating Relative Humidity 0–95%, Non-Condensing
Storage Relative Humidity 0–95%, Non-Condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft (0–15,240 m)
Acoustic Level 55 dBA
Heat Dissipation 636 BTU/hr
IP Protection IP20

Surge Protection & Filtering
Surge Energy Rating 555 Joules
Noise Filtering Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through 0.3%
Clamping Response Time Zero
Surge Protection Standard Meets UL 1449

General
Number of Power Module Free Slots 0
Number of Power Module Filled Slots 0
Redundant No

Conformance
Product Certification CSA

Condition & Warranty
Condition Refurbished UPS
Batteries New Batteries Installed
Network Management Card Not Included – SmartSlot Available
Warranty 1 Year Full Replacement Warranty
