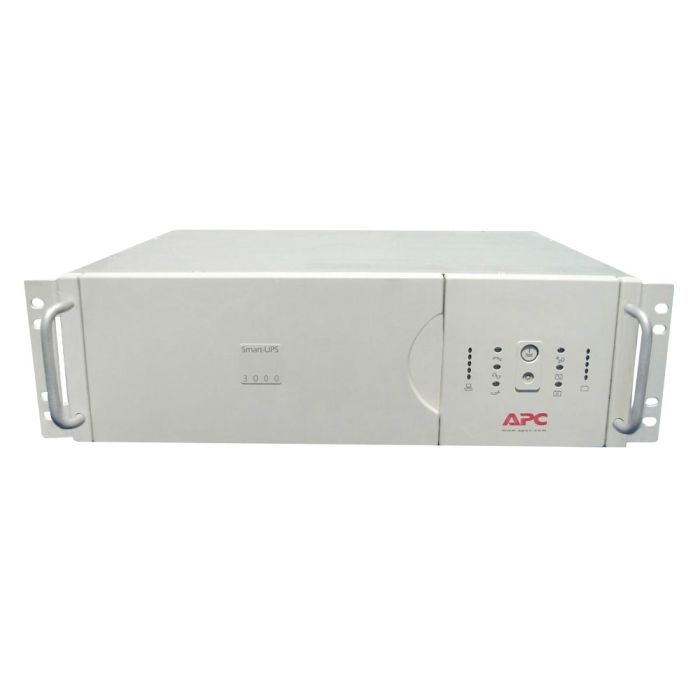

APC Smart-UPS 3000VA 2250W RM 3U 208V SU3000RMT3U - Refurbished
APC Smart-UPS 3000VA 2250W RM 3U 208V
Model: SU3000RMT3U
Input: NEMA L6-20P (208V - 20A)
Output: (1) NEMA L6-30R, (2) NEMA L6-20R, (2) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$599.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 3000VA 2250W RM, 3U, 208V
Condition: New batteries, refurbished UPS
Part Number: SU3000RMT3U
Maximum output:Â 2250W / 3000VA
Typical backup time at half load: 13 minutes (1125 Watts)
Typical backup time at full load: 5.6 minutes (2250 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 3000VA 2250W RM SU3000RMT3U Manual
SU3000RMT3U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
208V |
||||||
|
Main Output Voltage |
208V |
||||||
|
Rated Power in W |
2250W |
||||||
|
Rated Power in VA |
3000VA |
||||||
|
Input Connection Type |
|
||||||
|
Output Connection Type |
|
||||||
|
Number of Rack Unit |
3U |
||||||
|
Cable Length |
6 ft (1.83 m) |
||||||
|
Number of Cables |
1 |
||||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
5.20 in (13.2 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
25.00 in (63.5 cm) |
|
Net Weight |
129.28 lb(US) (58.64 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
No |
Input:
|
Efficiency at full load |
151 - 268 V adjustable |
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2250W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
53 dBA
|
|
Heat Dissipation |
375 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Batteries & Runtime:
|
Additional information |
Also provides up to 400VA of 120V with (2) NEMA 5-15 receptacles |
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC12 |
|
Battery Power in VAH |
672 VAh runtime |
|
Battery Charge Power (Watts) |
223 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
