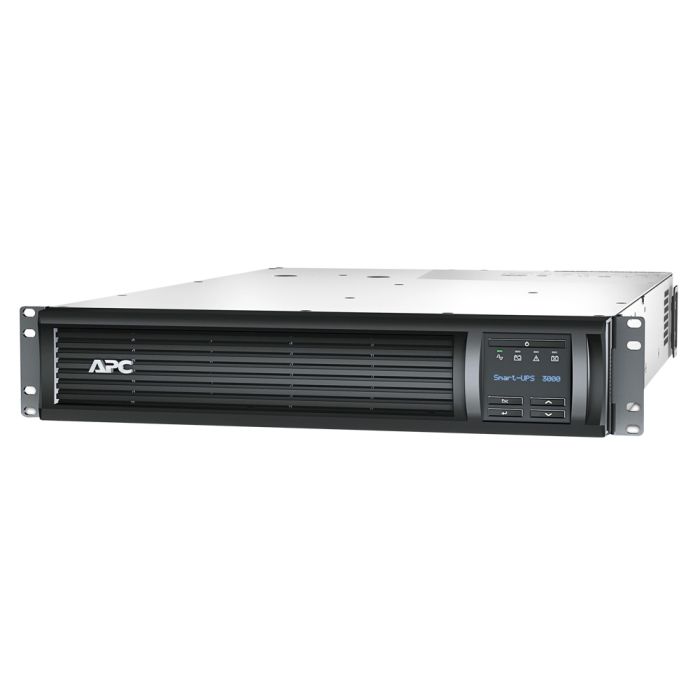

APC Smart-UPS 3000VA 2700W LCD RM 2U 230V SMT3000RMI2U - Refurbished

APC Smart-UPS 3000VA 2700W LCD RM 2U SMT3000RMI2U
Model: SMT3000RMI2U
Input: IEC-320 C20
Output: (3) IEC Jumpers, (1) IEC 320 C19, (8) IEC 320 C13
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Usually ships in 15-20 days

Usually ships in 15-20 days

Usually ships in 15-20 days

Msrp Price: $1,999.99

$1,299.99

Availability: On backorder

Usually ships in 15-20 days

Description

Details

Manufacturer: APC
Model:
APC Smart-UPS 3000VA 2700W LCD RM 2U 230V
Condition:
New batteries, refurbished UPS
Part Number:
SMT3000RMI2U

Maximum output: 2700W / 3000VA
Typical backup time at half load:
11 minutes (1350 Watts)
Typical backup time at full load:
3 minutes (2700 Watts)
Warranty:
1 year full replacement warranty


APC Smart-UPS 3000VA 2700W RM 2U 230V SMT3000RMI2U Manual


SMT3000RMI2U - APC Smart-UPS 3000VA Specifications:

Main:

Main Input Voltage

230V

Other Input Voltage

220V
240V

Main Output Voltage

230V

Other Output Voltage

220V
240V

Rated Power in W

2700W

Rated Power in VA

3000VA

Input Connection Type

IEC 320 C20

BS1363A British



Schuko CEE 7 / EU1-16P



Output Connection Type

(8) IEC 320 C13

(1) IEC 320 C19 (Battery Backup)

(3) IEC Jumpers (Battery Backup)



Number of Rack Unit

2U

Cable Length

2.00 m

Number of Cables

1

Battery Type

Lead-Acid battery


Batteries & Runtime:

Additional Information

Configurable for 220 : 230 or 240 nominal output voltage

Extended Runtime

0

Number of Battery Filled Slots

0

Number of Battery Free Slots

0

Battery Recharge Time

3 h

Number of Battery Replacement Quantity

1

Battery Life

3…5 year(s)

Replacement Battery

RBC43

Battery Charger Power

182 W rated


General:

Number of Power Module Filled Slots

0

Number of Power Module Free Slots

0

Redundant

No


Physical:

Height

3.39 in (8.6 cm)

Width

18.90 in (48 cm)

Depth

26.89 in (68.3 cm)

Net Weight

97.62 lb(US) (44.28 kg)

Mounting Location

Front

Mounting Preference

No preference

Mounting Mode

Rack-mounted

Two Post Mountable

0

USB Compatible

No


Input:

Input Voltage Limits

151...302 V adjustable
160...286 V

Network Frequency

50/60 Hz +/- 3 Hz auto-sensing


Output:

Maximum configurable power in VA

3000VA

Maximum configurable power in W

2700W

Transfer Time

4 ms typical : 8 ms maximum

UPS Type

Line Interactive

Wave Type

Sine wave

Output Frequency

47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains


Conformance:

Product Certifications

CE
EAC
IRAM
RCM
VDE

Marking

GS Mark

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018


Environmental:

Acoustic Level

55 dBA

Heat Dissipation

348 Btu/h

Operating Altitude

0...10000 ft

Ambient Air Temperature for Operation

0…40°C

Ambient Air Temperature for Storage

-15…45°C

Storage Altitude

0.00…15240.00 m

Relative Humidity

0…95%

Storage Relative Humidity

0…95%


Communications & Management:

Control Panel

Multifunction LCD status and control console

Free Slots

1

Control Panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays


Surge Protection & Filtering:

Surge Energy Rate

320 J

Additional Info

Additional Info

Manufacturer APC
Form Factor Rackmount
Waveform in Battery Mode Pure Sinewave
Input Voltage 230V AC (EU)
Output (VA) 3000VA
Output Voltage 230V AC (EU)
PDU Total Outlets No
