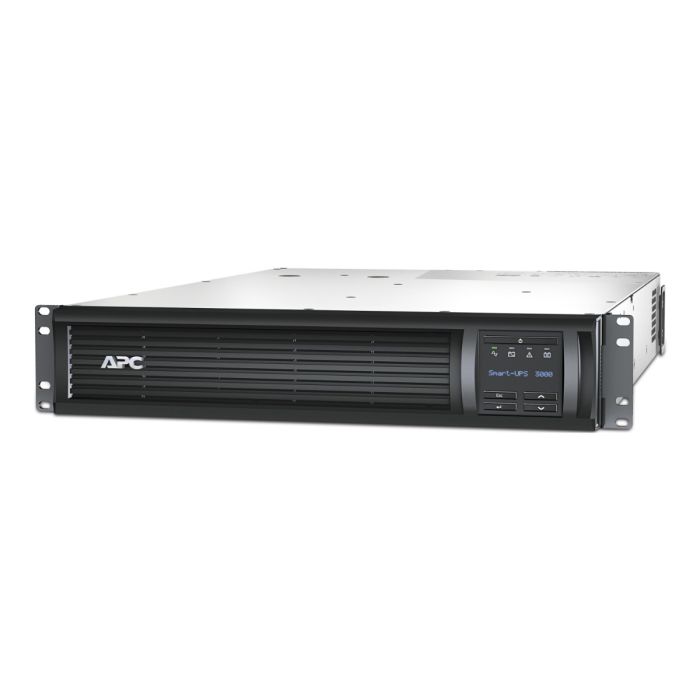

APC SMT3000RMT2U Smart-UPS 3000VA 2700W RM 2U 208V 20A Output: (2)L6-20R - Refurbished
APC Smart-UPS 3000VA 2700W RM 2U 208V
Model: SMT3000RMT2U
Input: NEMA L6-20P (208V - 20A)
Output: (2) NEMA L6-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$899.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 3000VA 2700W RM 2U 208V
Condition: New batteries, refurbished UPS
Part Number: SMT3000RMT2U
Maximum output: 2700W / 3000VA
Typical backup time at half load: 12 minutes (1350 Watts)
Typical backup time at full load: 3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 3000VA 2700W RM 2U 208V SMT3000RMT2U Manual
SMT3000RMT2U - APC Smart-UPS 3000VA Specifications:
Main:
|
Main Input Voltage |
208V |
||
|
Main Output Voltage |
208V |
||
|
Kw Rating |
2700W |
||
|
Rated Power in VA |
3000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC43 |
|
Battery Charge Power (Watts) |
188 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Height |
3.39 in (8.6 cm) |
|
Width |
18.90 in (48 cm) |
|
Depth |
26.89 in (68.3 cm) |
|
Net Weight |
97.62 lb(US) (44.28 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
131...268 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2700W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
348 Btu/h |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0…95% |
|
Storage Relative Humidity |
0…95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
320 J
|
