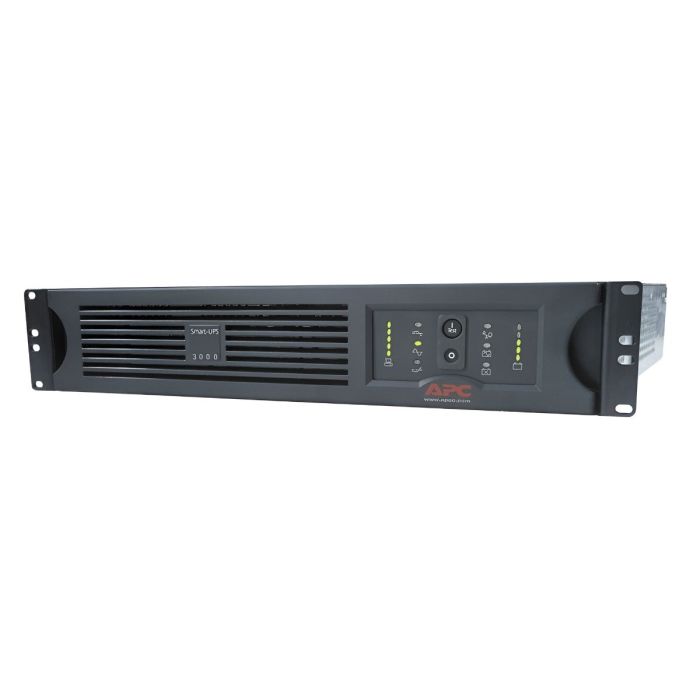

APC Smart-UPS 3000VA 2700W 30A 120V Output: (2)5-20R, (6)5-15R, SUA3000RM2U - Refurbished
APC Smart-UPS 3000VA 2700W USB & Serial RM 2U
Model: SUA3000RM2U
Input: NEMA L5-30P (120V - 30A)
Output: (2) NEMA 5-20R, (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$649.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 3000VA 2700W, RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SUA3000RM2U
Maximum output: 2700W / 3000VA
Typical backup time at half load: 11 minutes (1350 Watts)
Typical backup time at full load: 3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 3000VA 2700W SUA3000RM2U - User Manual
SUA3000RM2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
110 V |
||||
|
Main Output Voltage |
110V |
||||
|
Rated Power in W |
2700W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
2.44 m |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
25.98 in (66 cm) |
|
Net Weight |
96.21 lb(US) (43.64 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2700W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
47 dBA
|
|
Heat Dissipation |
400 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
528 VAh runtime |
|
Battery Charge Power (Watts) |
175 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
