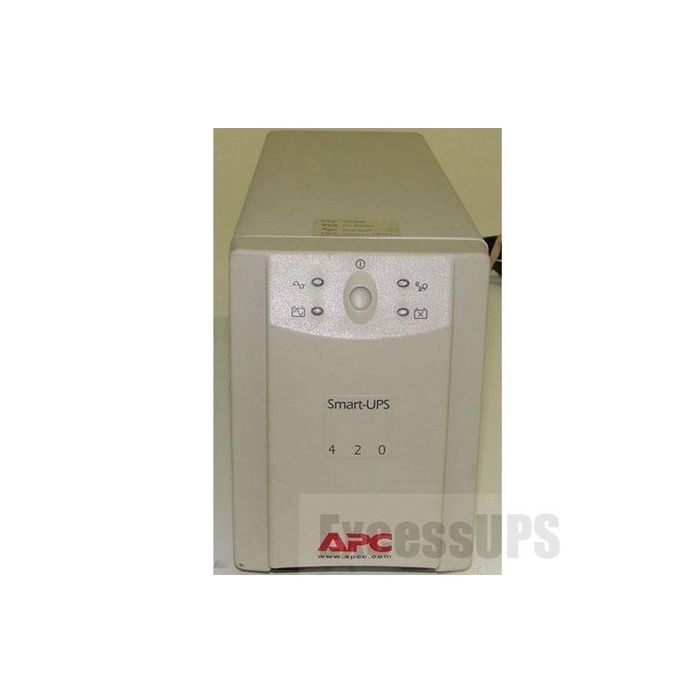

Main image Click to view image in fullscreen APC SMART UPS 420 SU420NET

APC SMART UPS 420 SU420NET

APC SMART UPS 420
260 W / 420 VA - SU420NET
(4) NEMA 5-15R
Refurbished with New Batteries
1 Year Warranty Included

Out of stock

Manufacturer: APC
Model Description: APC SMART UPS 420
Condition: New batteries, refurbished UPS
Part Number: SU420NET
Maximum output: 260 W / 420 VA
Typical backup time at half load: 13.5 minutes (130 Watts)
Typical backup time at full load: 5.5 minutes (260 Watts)
Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty

The SU420NET is fully refurbished and comes with fresh new batteries. The APC SMART UPS 420 is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

APC Smart-UPS 420 SU420NET User's Manual

A serial communications cable (940-0024C) is included with this item. It will give you greater control and customization options for this UPS. APC's PowerChute software, available free of charge on APC's website, provides extended features and abilities to enhance the effectiveness and usefulness of this UPS.

APC PowerChute Business Edition Basic v 7.0.5

SU1000 Specifications:

Output:

Output Power Capacity	260 Watts / 420 VA
Max Configurable Power	260 Watts / 420 VA
Nominal Output Voltage	120V
Output Frequency (sync to mains)	47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor	up to 5 : 1
Waveform Type	Stepped approximation to a sinewave
Output Connections	(4) NEMA 5-15R

Input:

Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	NEMA 5-15P
Cord Length	2 meters
Input voltage range for main operations	82 - 144V
Input voltage adjustable range for mains operation	75 - 154V

Batteries & Runtime:

Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time	5 hour(s)
Replacement battery cartridge	APC Smart UPS 420 SU420NET 420VA RBC replacement battery RBC2
RBC Quantity	1
Typical Backup Time at Half Load	13.5 minutes (130 Watts)
Typical Backup Time at Full Load	5.5 minutes (260 Watts)
Runtime Chart	Smart-UPS

Communications & Management:

Interface Port(s)	DB-9 RS-232
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm
Emergency Power Off (EPO)	Optional

Surge Protection and Filtering:

Surge energy rating	412 Joules
Filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection	RJ-45 Modem/Fax/DSL/10-100 Base-T protection

Physical:

Maximum Height	168.00 mm
Maximum Width	119.00 mm
Maximum depth	368.00 mm
Net Weight	10.00 KG
Shipping Weight	12.00 KG
