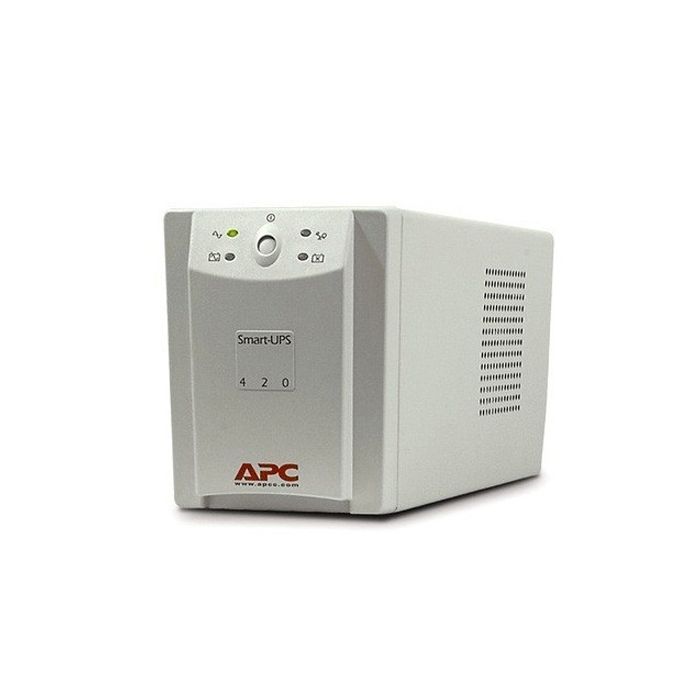

Main image Click to view image in fullscreen APC Smart-UPS 420VA SU420

APC Smart-UPS 420VA SU420

APC Smart-UPS 420VA
260W / 420VA - SUA420
(4) Battery Protected Outlets (NEMA 5-15R)
Refurbished with New Batteries
1 Year Warranty Included

Out of stock

Manufacturer: APC
Model Description: APC Smart UPS 420VA 420VA 260W SUA750 USB & Serial 120V
Condition: Refurbished with Brand New Batteries
Part Number: SUA420
Maximum output: 500 W / 750 VA
Typical backup timeat half load: 13.5 minutes (130 Watts)
Typical backup time at full load: 5.5 minutes (260 Watts)
Output Waveform: Stepped approximation to a sinewave
Warranty: 1 Year Full Replacement Warranty

The SU420 comes refurbished with new batteries. The APC 420VA comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

SU1000 Specifications:

Output

Output Power Capacity	260 Watts / 420 VA
Max Configurable Power	260 Watts / 420 VA
Nominal Output Voltage	120V
Output Frequency (sync to mains)	47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor	up to 5 : 1
Waveform Type	Stepped approximation to a sinewave
Output Connections	(4) NEMA 5-15R

Input

Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	NEMA 5-15P
Cord Length	2 meters
Input voltage range for main operations	82 - 144V
Input voltage adjustable range for mains operation	75 - 154V

Batteries & Runtime

Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time	5 hour(s)
Replacement battery cartridge	RBC2
RBC Quantity	1
Typical Backup Time at Half Load	13.5 minutes (130 Watts)
Typical Backup Time at Full Load	5.5 minutes (260 Watts)
Runtime Chart	Smart-UPS

Communications & Management

Interface Port(s)	DB-9 RS-232
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm
Emergency Power Off (EPO)	Optional

Surge Protection and Filtering

Surge energy rating	412 Joules
Filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection	RJ-45 Modem/Fax/DSL/10-100 Base-T protection

Physical

Maximum Height	168.00 mm
Maximum Width	119.00 mm
Maximum depth	368.00 mm
Net Weight	10.00 KG
Shipping Weight	12.00 KG
