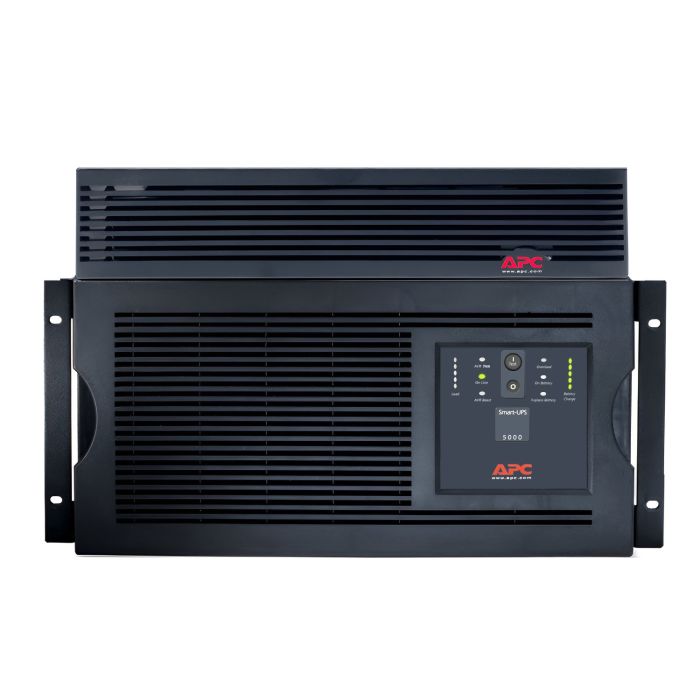

APC Smart-UPS 5kVA RM 7U 208/120V W/ Step-Down Transformer, SUA5000R5TXFMR - Refurb
APC Smart-UPS 5000VA 4000W RM 7U 208V 30A Step-Down Transformer AP9626
Model: SUA5000R5TXFMR
Input: NEMA L6-30P (208V - 30A)
Output: (12) NEMA 5-20R, (2) NEMA L6-20R, (1) NEMA L6-30R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$2,099.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 5000VA 4000W, RM, 7U, 208V In / 120V & 208V Out
Condition: New batteries, refurbished UPS
Part Number: SUA5000R5TXFMR
Maximum output: 4000W / 5000VA
Typical backup time at half load: 26.7 minutes (2000 Watts)
Typical backup time at full load: 9.4 minutes (4000 Watts)
Warranty: 1 year full replacement warranty
Includes: (1) SUA5000RMT5U + (1) AP9626
The SUA5000R5TXFMR is a Smart-UPS 5000 with a step down transformer. It provides outputs of 208V & 120V. This unit has the step down included and a preinstalled AP9617 smart slot card. The step down transformer plugs into the the 208V 30A NEMA L6-30P on the back of the 5000 and provides (12) NEMA 5-20R receptacles. This unit would be useful to anyone who has 208V servers and 115V appliances in the same rack.
APC Smart-UPS 5000 RM 7U SUA5000R5TXFMR User's Manual
Specifications for the APC Smart UPS 5000VA SUA5000R5TXFMR 208V:
Output:
|
Output power capacity |
4000 Watts / 5000VA |
||||||
|
Max Configurable Power |
4000 Watts / 5000 VA |
||||||
|
Nominal output voltage |
208V, 120V |
||||||
|
Output Voltage Distortion |
less than 5% at full load |
||||||
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
||||||
|
Crest Factor |
up to 5 : 1 |
||||||
|
Waveform type |
Sine wave |
||||||
|
Output Connections |
|
Input:
|
Nominal input voltage |
208V |
||
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
||
|
Input Connection Type |
|
||
|
Cord Length |
8 feet (2.44 meters) |
||
|
Input voltage range for main operations |
157 - 255 V |
||
|
Input voltage adjustable range for mains operation |
151 - 268 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
RBC55 (x2) |
|
RBC Quantity |
1 |
|
Typical backup time at half load (2000 Watts) |
26.7 minutes |
|
Typical backup time at full load (4000 Watts) |
9.4 minutes |
Communications and Management:
|
Interface port |
DB-9 RS-232, RJ-45 10 Base-T ethernet for (Web/ SNMP/ Telnet) management, SmartSlot |
|
Pre-Installed SmartSlot Cards |
AP9617 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
Surge:
|
Surge energy rating |
1020 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
12.25 inches (311 mm)
|
|
Maximum width |
19.00 inches (483 mm)
|
|
Maximum depth |
25.00 inches (635 mm)
|
| Net weight | 320.00 lbs. (145.45 kg) |
