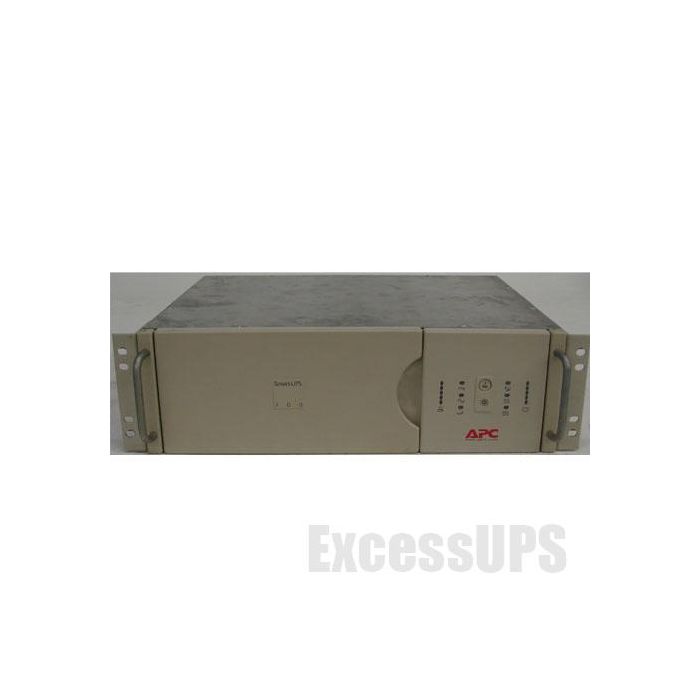

Main image Click to view image in fullscreen APC SMART-UPS 700 Rackmount 3U 700VA 450W SU700RM

APC SMART-UPS 700 Rackmount 3U 700VA 450W SU700RM

APC SMART-UPS 700
450 W / 700 VA - SU700RM
Output: (6) NEMA 5-15R
Input: (6) NEMA 5-15P
Refurbished with New Batteries
1 Year Warranty Included

Out of stock

Manufacturer: APC
Model Description: APC SMART-UPS 700 Rackmount 3U 700VA
Condition: New batteries, refurbished UPS
Part Number: SU700RM
Maximum output: 450 W / 700 VA
Typical backup time at half load: 18.6 minutes (225 Watts)
Typical backup time at full load: 5.8 minutes (450 Watts)
Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty

The SU700RM is fully refurbished and comes with fresh new batteries. The APC 700VA is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

APC Smart-UPS 700 Rackmount 3U SU700RM User's Manual

SU700RM Specifications:

Output:

Output power capacity

700 VA

Output power capacity

450 Watts

Max Configurable Power

700 VA

Max Configurable Power

450 Watts

Nominal output voltage

120V

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Waveform type

Sine wave

Output Connections

(6) NEMA 5-15R

Input:

Nominal input voltage

120V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connection Type

NEMA 5-15P

Cord Length

6 feet ( 1.83 meters )

Input voltage range for main operations

92 - 147 V

Input voltage adjustable range for mains operation

86 - 154 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC9
RBC Quantity	1
Typical backup time at half load	18.6 minutes (225 Watts)
Typical backup time at full load	5.8 minutes (450 Watts)
Runtime Chart	Smart-UPS

Communications and Management:

Interface port	DB-9 RS-232 , SmartSlot
Available Smart Slot Interface Quantity	1
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Optional

Surge:

Surge energy rating	320 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum height	132.00 mm
Maximum width	483.00 mm
Maximum depth	356.00 mm
Net weight	18.18 KG
Shipping Weight	24.0 KG
