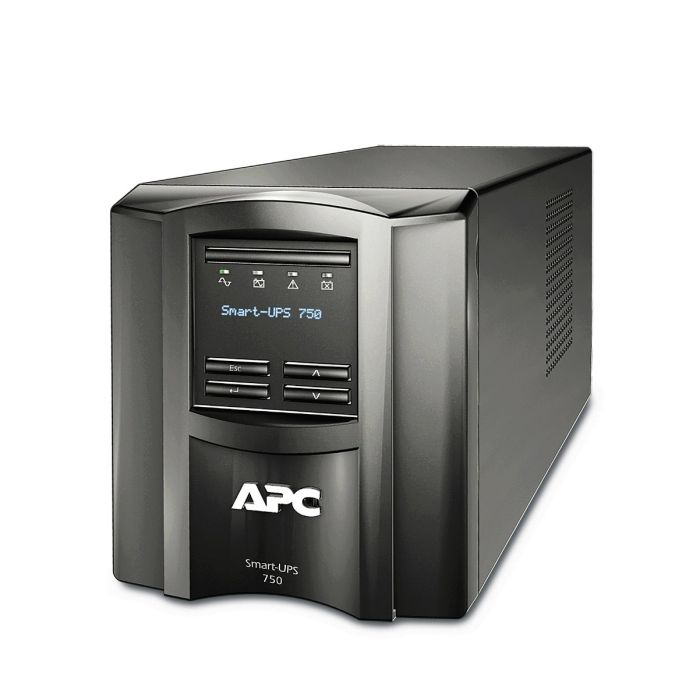

APC Smart-UPS 750VA 500W Battery Backup 15A 120V AP9631 Pre-Install, SMT750NC - Refurb

Manufacturer: APC
Model: APC Smart-UPS 750VA 500W, LCD, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMT750NC
Maximum output: 500W / 750VA
Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Waveform: Pure Sine Wave
Typical backup time at half load: 15.5 minutes (250 Watts)
Typical backup time at full load: 4.4 minutes (500 Watts)
Warranty: 1 Year Full Replacement Warranty Included

Description: The APC Smart-UPS 750VA (SMT750NC) is a line-interactive UPS designed to protect small servers and networking equipment with reliable 500W / 750VA power backup and pure sine wave output. It features Automatic Voltage Regulation (AVR), an LCD display for real-time status monitoring, and (6) NEMA 5-15R outlets for flexible connectivity.It provides around 4.4 minutes of runtime at full load and 15.5 minutes at half load, with a typical recharge time of 3 hours. This is a refurbished UPS with new batteries and includes a 1-year full replacement warranty.

APC Smart-UPS 750VA 500W SMT750NC - User Manual

SMT750NC - APC Smart-UPS 750VA 500W Specifications:

Product Overview
Power Rating	750VA / 500W
UPS Topology	Line-Interactive
Form Factor	Tower
Input Voltage	120V
Output Voltage	120V
Waveform Type	Pure Sine Wave
Input Plug Type	NEMA 5-15P
Output Receptacles	(6) NEMA 5-15R
Battery Type	Sealed Lead-Acid
Hot-Swappable Batteries	Yes
Automatic Voltage Regulation (AVR)	Yes
Intelligent Battery Management	Yes
LCD Status Display	Multifunction LCD
SmartSlot	Occupied (AP9631 Pre-Installed)
Included Accessories	USB Cable, Documentation
User Interface, Alerts & Controls
Front Panel Display	Multifunction LCD status and control console
Front Panel Indicators	LCD status, load, battery, alarms and diagnostics
User Interface	LCD Monitoring and Configuration
Audible Alarm	Battery, Low Battery, Overload and Fault Alarms
Alarm Management	Configurable Audible Notifications
Controls	Power ON/OFF, LCD Navigation
Emergency Power Off (EPO)	Optional
Battery Status Indicators	Runtime, Charge Level and Battery Health
Self-Test	Automatic
Communications & Management
Pre-Installed Network Card	APC AP9631 Network Management Card
SmartSlot	Occupied
Ethernet Port	RJ-45 10/100Base-T
USB Port	Yes
Serial Port	Yes
Communication Interfaces	USB, Serial, Ethernet
Remote Monitoring	Web Browser, SNMP, SSH, Telnet
Supported Protocols	HTTP, HTTPS, SNMP v1/v3, SSH, Telnet
Event Logging	Supported
Email Notifications	Supported
SNMP Trap Support	Supported
Firmware Updates	Supported
Environmental Monitoring	Supported with Optional Sensor
Management Software	APC PowerChute Business Edition
Remote Shutdown	Supported
Input
Input Voltage	120V
Input Frequency	50/60 Hz ±3% Auto-Sensing
Input Voltage Range	82-144V
Adjustable Input Range	75-154V
Input Plug	NEMA 5-15P
Number of Power Cords	1
Cable Length	6 ft (1.83 m)
Input Phase	Single Phase
Output
Output Power Capacity	750VA / 500W
Maximum Configurable Output	750VA / 500W
Output Voltage	120V
Waveform	Pure Sine Wave
Harmonic Distortion	Less than 5%
Transfer Time	4 ms Typical / 8 ms Maximum
Output Frequency	50/60 Hz ±3% Synchronized to Utility
Output Connections	(6) NEMA 5-15R
Surge Energy Rating	540 Joules
Noise Filtering	Full-Time Multi-Pole EMI/RFI Filtering
AVR Protection	Automatic Voltage Regulation
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Battery Voltage	24V
Battery Capacity	7.0 Ah
Replacement Battery	RBC48
Battery Quantity	1
Typical Runtime at Half Load	15.5 Minutes (250W)
Typical Runtime at Full Load	4.4 Minutes (500W)
Typical Recharge Time	3 Hours
Battery Life	3-5 Years
Battery Charge Power	49W
Hot-Swappable Batteries	Yes
Extendable Runtime	No
Physical
Height	6.34 in (161 mm)
Width	5.43 in (138 mm)
Depth	14.29 in (363 mm)
Net Weight	29.06 lbs (13.18 kg)
Form Factor	Tower
Mounting	Tower
Color	Black
USB Compatible	Yes
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Relative Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3,048 m)
Storage Altitude	Up to 50,000 ft (15,240 m)
Acoustic Noise	40 dBA
Heat Dissipation	90 BTU/hr
Product Certification	CSA
Conformance
UPS Type	Smart-UPS Tower
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
