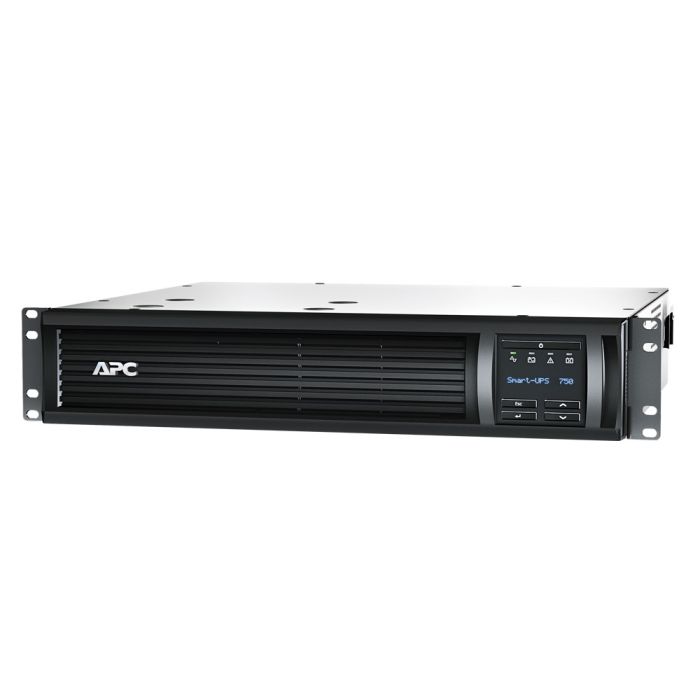

APC Smart-UPS 750VA 500W LCD RM 2U 120V 15A Output: (6)5-15R, SMT750RM2U - Refurbished
APC Smart-UPS 750VA 500W LCD RM 2U 120V
Model: SMT750RM2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$399.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS 750VA 500W LCD, RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMT750RM2U
Maximum output: 500WÂ /Â 750VA
Typical backup time at half load: 16.1 minutes (250 Watts)
Typical backup time at full load: 5.5 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 750VA 500W RM SMT750RM2U - User Manual
SMT750RM2U - APC Smart-UPS 750VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
500W |
||
|
Rated Power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
4…6 year(s) |
|
Replacement Battery |
APCRBC123 |
|
Battery Charge Power (Watts) |
56 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
15.98 in (40.6 cm) |
|
Net Weight |
38.07 lb(US) (17.27 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75...154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
750VA |
|
Max Configurable Power (Watts) |
500W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA
|
Environmental:
|
Acoustic Level |
42 dBA
|
|
Heat Dissipation |
46 Btu/h
|
|
Operating Altitude |
0...10000 ft
|
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C)
|
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m)
|
|
Relative Humidity |
0…95%
|
|
Storage Relative Humidity |
0…95%
|
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Emergency Power Off (EPO) |
Optional
|
|
Free Slots |
1
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection & Filtering:
|
Surge Energy Rating |
459 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
