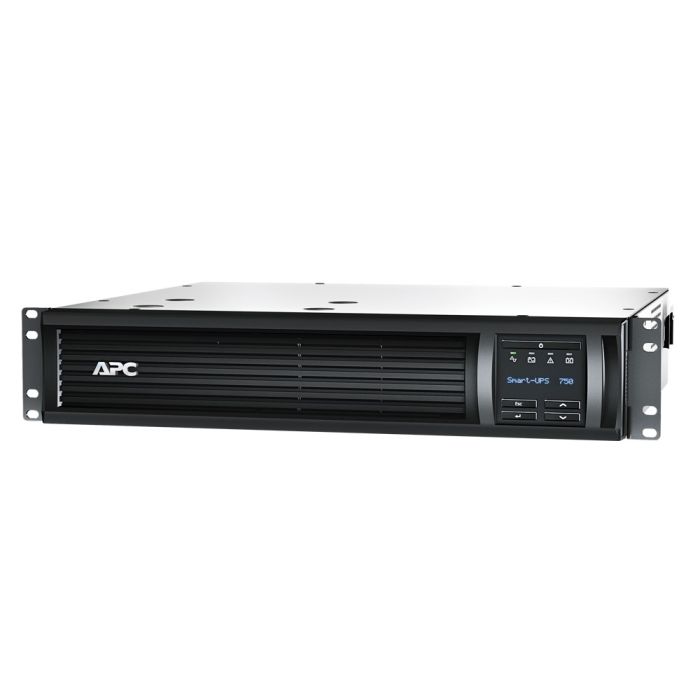

APC Smart-UPS 750VA 500W LCD RM 2U 15A 120V AP9631 Pre-Install, SMT750RM2UNC - Refurbished
APC Smart-UPS 750VA 500W LCD RM 2U
Model: SMT750RM2UNC
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$499.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 750VA 500W, LCD, RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMT750RM2UNC
Maximum output: 500W / 750VA
Typical backup time at half load: 16.1 minutes (250 Watts)
Typical backup time at full load: 5.5 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 750VA 500W LCD RM SMT750RM2UNC User's Manual
SMT750RM2UNC - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
500W |
||
|
Rated power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
General:
|
Number of power module free slots |
0 |
|
Number of power module filled slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
15.98 in (40.6 cm) |
|
Net Weight |
38.01 lb(US) (17.24 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum configurable power in VA |
750VA |
|
Max Configurable Power (Watts) |
500W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
42 dBA |
|
Heat Dissipation |
46 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 years |
|
Replacement Battery |
APCRBC123 |
|
Battery power in VAH |
168 VAh runtime |
|
Battery Charge Power (Watts) |
56 W rated |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Optional |
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring
|
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
459 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
