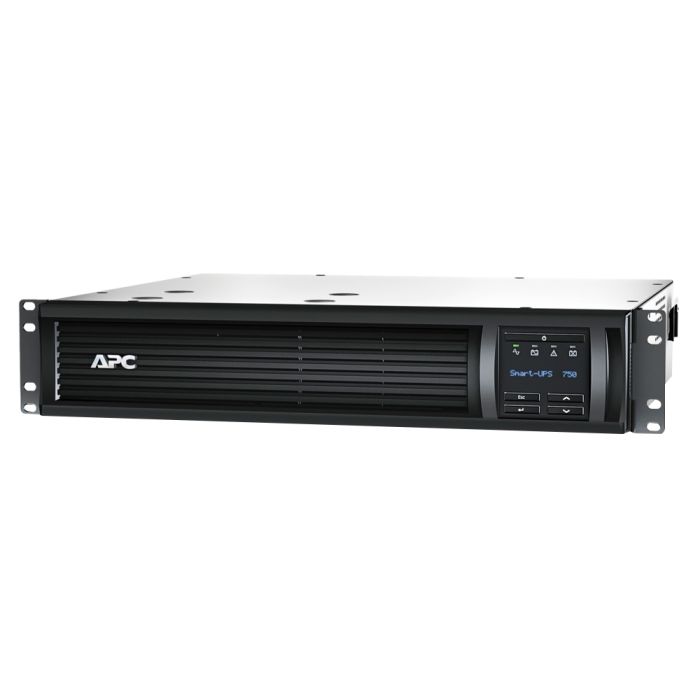

APC Smart Connect-UPS 750VA 500W LCD RM 2U Output: (6)5-15R, SMT750RM2UC - Refurbished
APC Smart-UPS 750VA 500W RM 2U SmartConnect LCD 120V
Model: SMT750RM2UC
Input:Â NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$499.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 750VA 500W, LCD, RM, 2U, 120V, SmartConnect
Condition: New batteries, refurbished UPS
Part Number: SMT750RM2UC
Maximum output: 500W / 750VA
Typical backup time at half load: 16.1 minutes (250 Watts)
Typical backup time at full load: 5.5 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 750VA 500W LCD RM SMT750RM2UC Manual
SMT750RM2UC - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Output Voltage |
110V |
||
|
Rated power in W |
500W |
||
|
Rated power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
4-6 year(s) |
|
Replacement Battery |
APCRBC123 |
|
Battery power in VAH |
168 VAh runtime |
|
Battery Charge Power (Watts) |
56 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Cloud-enabled monitoring |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.39 inches (86mm, 8.6cm) |
|
Width |
17.01 inches (432mm, 43.2cm) |
|
Depth |
16.1 inches (409mm, 40.9cm) |
|
Net Weight |
39.02 lbs. (17.7kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum configurable power in VA |
750VA |
|
Max Configurable Power (Watts) |
500W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
cULus |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
70 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Free slots |
0 |
|
Communication port support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
680 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
