FREE

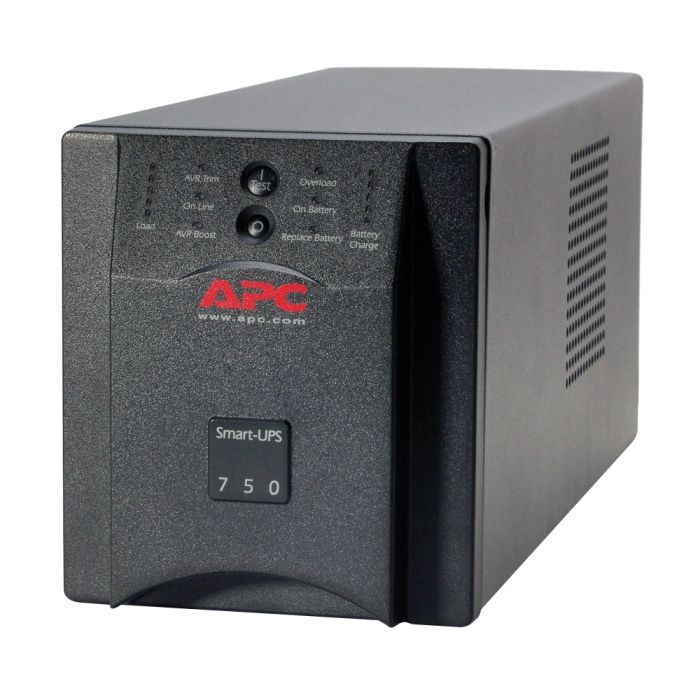

APC Smart-UPS 750VA 500W Tower 120V USB & Serial Tower, SUA750 - Refurbished
APC Smart-UPS 750VA 500W USB & Serial Tower
Model: SUA750
Input: NEMA 5-15P (120V - 15A)
Output: (6) 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$209.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 750VA 500W USB & Serial Tower 120V
Condition: New batteries, refurbished UPS
Part Number: SUA750
Maximum output: 500W / 750VA
Typical backup time at half load: 15.9 minutes (250 Watts)
Typical backup time at full load: 4.6 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 750VA 500W USB & Serial Tower SUA750 Manual
SUA750 - APC Smart-UPS 750VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
500W |
||
|
Rated power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
1.83 m |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
15.7 cm |
|
Width |
13.7 cm |
|
Depth |
35.8 cm |
|
Net Weight |
13.18 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-Mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
75 - 154V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % |
|
Maximum Configurable Power in VA |
750 VA |
|
Maximum Configurable Power in W |
500 W |
|
UPS Type |
Line Interactive |
|
Wave Type |
Sine Wave |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
40 dBA
|
|
Heat Dissipation |
90 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
0 - 40°C |
|
Ambient Air Temperature for Storage |
-15 - 45°C |
|
Storage Altitude |
0.00 - 15240.00 m |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Batteries & Runtime:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Battery Power in VAH |
146 VAh Runtime |
|
Battery Charger Power |
49 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line: on battery: replace battery: and overload indicators |
|
Emergency Power Off |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
540 J |
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
