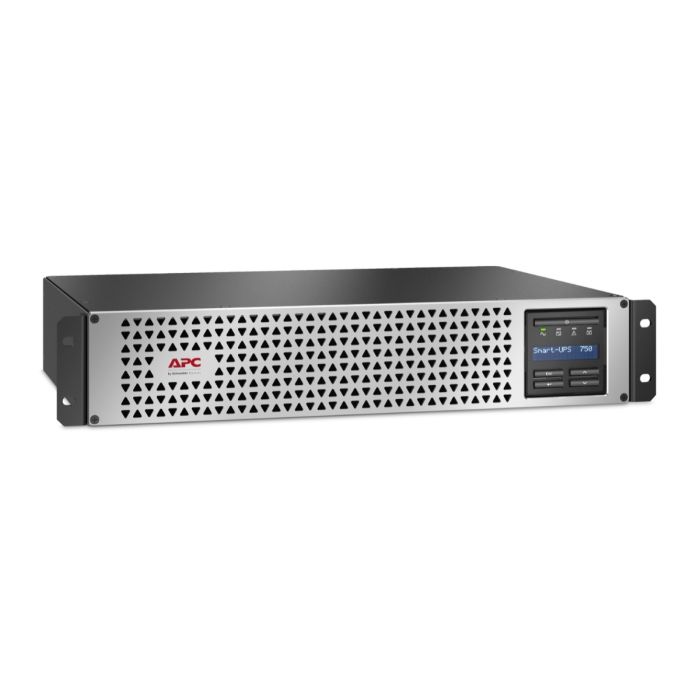

APC SmartConnect-UPS 750VA 600W Li-Ion 120V Output:(6)5-15R SMTL750RM2UC - Refurbished
APC Smart-UPS Li-Ion LCD 750VA 600W RM 2U SmartConnect-UPS
Model: SMTL750RM2UCÂ
Input: NEMA 5-15PÂ (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
Refurbished UPS, Tested Original Batteries
1 Year Warranty Included
$899.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 750VA 600W, RM, 2U, 120V, Li-Ion, SmartConnect
Condition: New batteries, refurbished UPS
Part Number: SMTL750RM2UCÂ
Maximum output: 600W / 750VA
Typical backup time at half load: 12.56 minutes (300 Watts)
Typical backup time at full load: 6.10Â minutes (600 Watts)
Warranty:Â 1 year full replacement warranty)
Includes: SMTL750RM2UCÂ UPS, bezel, rack rars & rail Kit
The SMTL750RM2UC has been cleaned, recalibrated, and tested per spec with the original internal lithium ion batteries.
APC Smart-UPS 1500VA 1350W RM SMTL750RM2UCÂ - User Manual
SMTL750RM2UCÂ - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Output Voltage |
110V |
||
|
Rated power in W |
600W |
||
|
Rated power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Li-Ion (Lithium Ion) |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Typical Recharge Time |
3 h |
|
Battery Life |
8-10 years |
|
Battery Charge Power (Watts) |
94 W rated |
General:
|
Product Web Sub-Family |
Cloud-enabled monitoring |
|
Redundant |
No |
Physical:
|
Colour |
Black with silver front bezel |
|
Height |
3.4 in (8.6 cm) |
|
Width |
17.2 in (43.8 cm) |
|
Depth |
12.5 in (31.8 cm) |
|
Net Weight |
34.00 lb(US) (15.42 kg) |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
Yes |
Input:
|
Input Protection Type |
Circuit Breaker |
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
3 : 1 |
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
750VA |
|
Max Configurable Power (Watts) |
600W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
NOM |
Environmental:
|
Acoustic Level |
41 dBA |
|
Heat Dissipation |
135 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
40…95 °F (-40…35 °C) |
|
Storage Altitude |
0Â - 25000 ft (0.00Â - 7620.00 m) |
|
IP Degree of Protection |
IP20 |
|
Relative Humidity |
0-95 % non-condensing |
|
Storage Relative Humidity |
0-95 % non-condensing |
Communications & Management:
|
Audible Alarm |
Audible and visible alarms |
|
Control Panel |
Multi-function LCD status and control console |
|
Free Slots |
1
|
|
Communication Port Support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm
|
Surge Protection and Filtering:
|
Surge Energy Rating |
680 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
