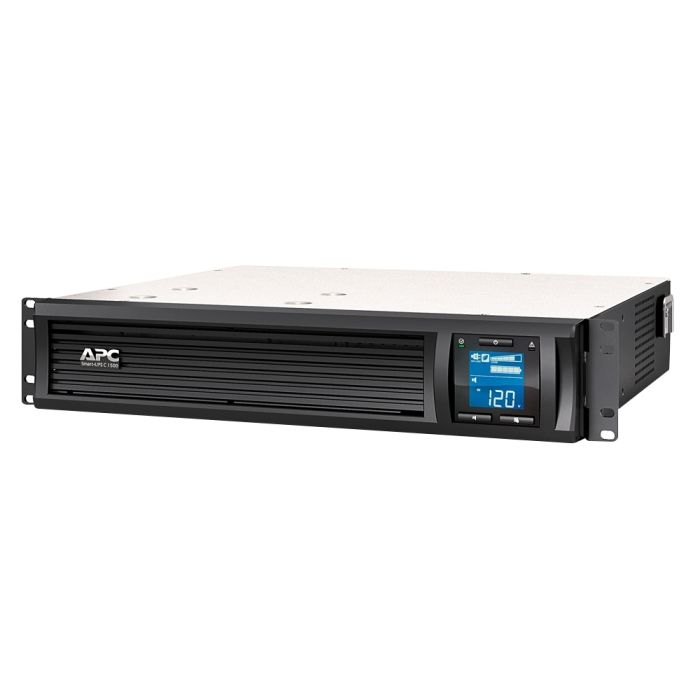

APC SMC1500-2U Smart-UPS C 1500VA 900W LCD RM 2U Output: (6)5-15R 120V - Refurbished
APC Smart-UPS C 1500VA 900W LCD RM 2U
Model: SMC1500-2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$449.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS C 1500VA 900W, LCD RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number:Â SMC1500-2U
Maximum output: 900WÂ /Â 1500VA
Typical backup time at half load: 18 minutes (450 Watts)
Typical backup time at full load: 6.8 minutes (900 Watts)
Warranty:Â 1 year full replacement warranty)
APC Smart-UPS C 1500VA 900W RM SMC1500-2U - User Manual
SMC1500-2U - APC Smart-UPS C Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
900W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
4-6 years |
|
Replacement Battery |
APCRBC157 |
|
Battery Power in VAH |
260 VAh runtime |
|
Battery Charge Power (Watts) |
86 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
|
Product Web Sub-Family |
Entry level |
Physical:
|
Color |
Black |
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
18.0 inches (457mm, 45.7cm) |
|
Net Weight |
61.2 lbs. (27.82kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
1 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
85-136 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
900W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Waveform Type |
Sine wave |
|
Topology |
Line Interactive |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
46 dBA |
|
Heat Dissipation |
134 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Free Slots |
0 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
455 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
