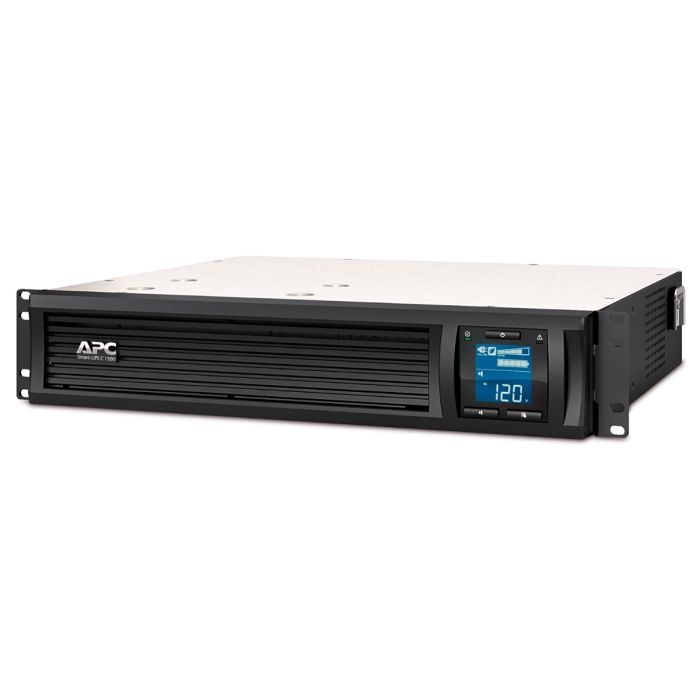

APC SmartConnect 1500VA 900W LCD RM 2U 15A Smart-UPS C 120V SMC1500-2UC - Refurbished
APC Smart-UPS C SmartConnect 1500VA 900W LCD RM 2U 120V
Model: SMC1500-2UC
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$549.99
In stock
Manufacturer: APC
Model: APC Smart-UPS C SmartConnect 1500VA 900W LCD RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: SMC1500-2UC
Maximum output: 900W / 1500VA
Typical backup time at half load: 18.4 minutes (450 Watts)
Typical backup time at full load: 6.4 minutes (900 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS C SmartConnect LCD SMC1500-2UC User's Manual
SMC1500-2UC - APC Smart-UPS 1500VA 900W Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Output Voltage |
110V |
||
|
Rated power in W |
900W |
||
|
Rated power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
||
|
Provided Equipment |
Documentation CD |
General:
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Product Web Sub-family |
Cloud-enabled Monitoring |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.39 in (8.6 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
18.78 in (47.7 cm) |
|
Net weight |
55.78 lb(US) (25.3 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
85 - 136V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Maximum Configurable Power in W |
900W |
|
Transfer Time |
6 ms typical: 10 ms maximum |
|
UPS Type |
Line Interactive |
|
Wave Type |
Sine wave |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Environmental:
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
225 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Batteries & Runtime:
|
Maximum Height |
8.62 inches (219mm, 21.9cm)
|
|
Maximum Width |
6.73 inches (171mm, 17.1cm) |
|
Maximum Depth |
17.28 inches (439mm, 43.9cm) |
|
Net Weight |
44.31 lbs. (20.1kg) |
|
Shipping Weight |
49.91 lbs. (22.64kg) |
|
Shipping Height |
12.99 inches (330mm, 33.0cm) |
|
Shipping Width |
12.99 inches (330mm, 33.0cm) |
|
Shipping Depth |
23.23 inches (590mm, 59.0cm) |
|
Color |
Black |
Environmental:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
4 - 6 year(s) |
|
Replacement Battery |
APCRBC157 |
|
Battery power in VAH |
260 VAh Runtime |
|
Battery Charger Power |
86 W rated |
Communications & Management:
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
|
Control Panel |
Multifunction LCD status and control console |
|
Free Slots |
0 |
Surge Protection and Filtering:
|
Surge Energy Rate |
680 J |
|
Noise Suppression |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
