Description
Details
Manufacturer: APC

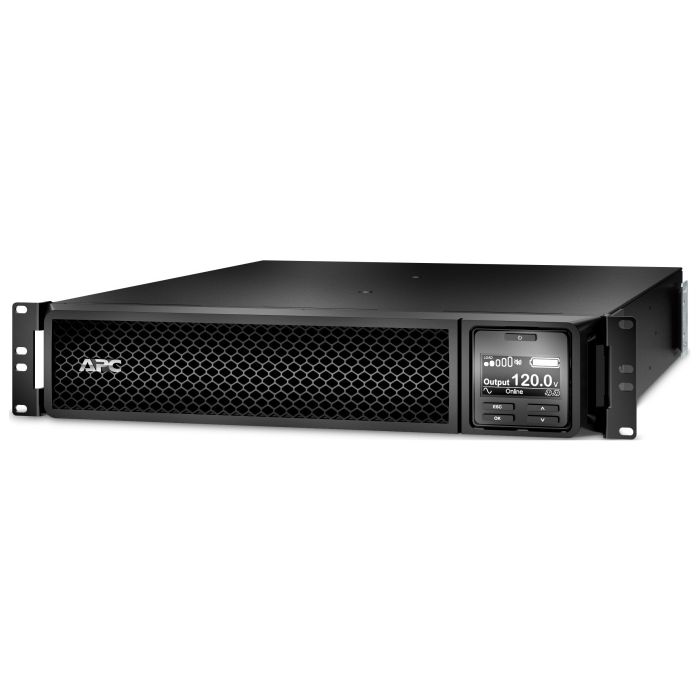

Model: APC Smart-UPS On-Line 2200VA 1800W RM 2U, 20A 120V
Condition: New batteries, refurbished UPS
Part Number: SRT2200RMXLA
Maximum output: 1800W / 2200VA
Typical backup time at half load: 10.1 minutes (900 Watts)
Typical backup time at full load: 3.1 minutes (1800 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS On-Line 2200VA 1800W RM 2U SRT2200RMXLA Manual
SRT2200RMXLA - APC Smart-UPS On-Line 2200VA Specifications:
Main:
Main Input Voltage |
120V |
||||
Main Output Voltage |
120V |
||||
Kw Rating |
1800W |
||||
Rated power in VA |
2200VA |
||||
Input Connection Type |
|
||||
Output Connection Type |
|
||||
Number of Rack Unit |
2U |
||||
Cable Length |
6 ft (1.83 m) |
||||
Number of Cables |
1 |
||||
Battery Type |
Lead-Acid Battery |
General:
Product Web Sub-family |
High Density |
Number of Power Module |
1400 |
Number of Power Module Free Slots |
0 |
Number of Power Module Filled Slots |
0 |
Redundant |
No |
Physical:
Color |
Black |
Height |
3.35 in (8.5 cm) |
Width |
17.01 in (43.2 cm) |
Depth |
22.99 in (58.4 cm) |
Net Weight |
55.01 lb(US) (24.95 kg) |
Mounting Location |
Front |
Mounting Preference |
Lower |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
Yes |
Mounting Position |
Horizontal |
Input:
Input Frequency |
40 - 70 Hz auto-sensing |
Output:
Max Configurable Power (Watts) |
1800W |
Harmonic Distortion |
Less than 2% |
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Crest Factor |
3:1 |
Topology |
Double Conversion Online |
Waveform Type |
Sine wave |
Bypass Type |
Built-in Bypass |
Maximum Configurable Power in VA |
2200VA |
Conformance:
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
Relative Humidity |
0 - 95% Non-condensing |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Storage |
-4 - 122°F (-20 - 50°C) |
Storage Relative Humidity |
0 - 95 % Non-condensing |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Acoustic Level |
55 dBA |
Heat Dissipation |
535 Btu/h |
IP Degree of Protection |
IP20 |
Batteries & Runtime:
Included Battery Modules |
1
|
Battery Slots Empty |
0 |
Typical Recharge Time |
3h |
RBC Quantity |
1 |
Battery Voltage |
72V |
Battery Charge Power (Watts) |
102W rated |
Battery power in VAH |
306 VAh runtime |
Battery Life |
3 - 5 year(s) |
Replacement Battery |
APCRBC141 |
Battery Option |
SRT72RMBP 1 916 VAh |
Extendable Run Time |
1 |
Communications & Management:
Free Slots |
1
|
Alarm |
Audible and visible alarms: prioritized by severity |
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
Surge Energy Rating |
340J
|
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 2200VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
