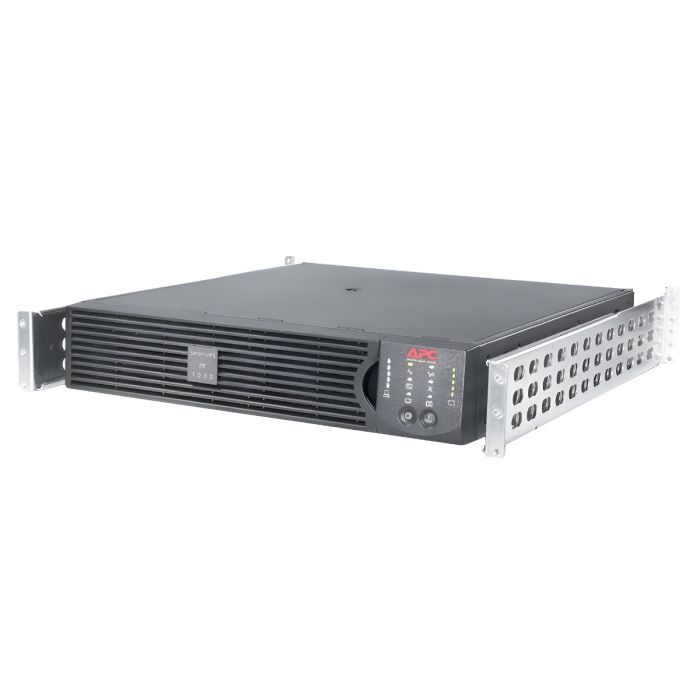

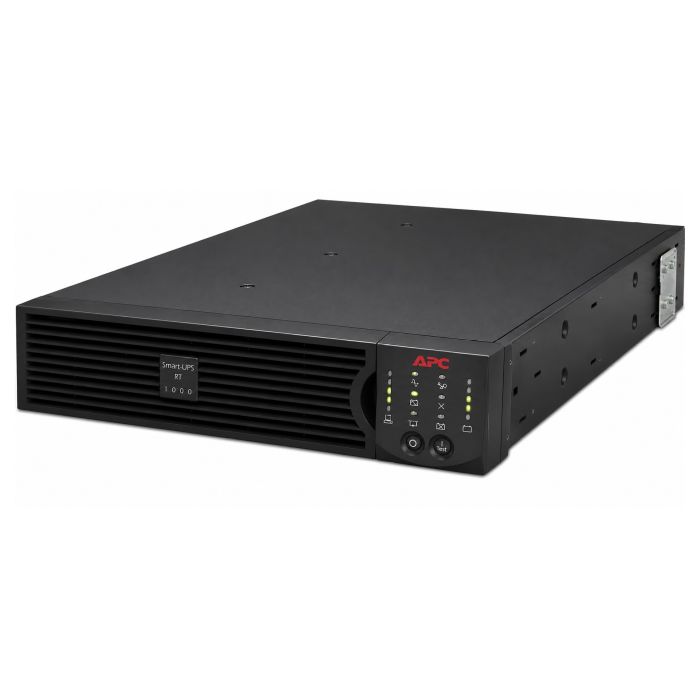

APC Smart-UPS RT 1000VA 800W Double Conversion Online RM 2U SURTA1000RMXL2U - Refurbished
APC Smart-UPS RT 1000VA 800W RM 120V 15A
Model: SURTA1000RMXL2UÂ
Input:Â NEMA 5-15P
Output: (6) NEMA 5-15R (Battery Backup)
Double-Conversion Online UPS - Pure Sine Wave Output
Built-In Automatic Bypass
Extended Runtime Capable
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$449.99
Back Order
Manufacturer:Â APC
Model: APC Smart-UPS RT 1000VA 800W RM 2UÂ 120V 15A
Condition: Refurbished UPS
Part Number:Â SURTA1000RMXL2U
Maximum output: 800W / 1000VA
Typical backup time at half load:Â 21 minutes (400 Watts)
Typical backup time at full load: 7.2 minutes (800 KWatts)
Output Waveform: Pure Sine wave
Warranty:Â 1 Year Full Replacement Warranty
Description:Â The APC Smart-UPS RT SURTA1000RMXL2U is a 1000VA / 800W online double-conversion UPS designed to provide continuous power protection for servers, network equipment, storage systems, telecommunications equipment, and other critical applications. Delivering pure sine wave output with zero transfer time, the SURTA1000RMXL2U provides superior protection against power disturbances, voltage fluctuations, and outages. Featuring a built-in automatic bypass, USB and serial communications, SmartSlot expansion, and support for extended runtime battery packs, this 2U rackmount UPS ensures maximum uptime and reliable power conditioning. Refurbished and backed by a 1 Year Full Replacement Warranty.
Â
APC Smart UPS RT 1000VA 800W RM 120V - SURTA1000RMXL2U - User's Manual
SURTA1000RMXL2U -Â APC Smart-UPS RT - Specifications:
| Key Features | Â |
| UPS Topology | Double Conversion Online |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Capacity | 1000VA / 800W |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Waveform Type | Pure Sine Wave |
| Input Plug | NEMA 5-15P |
| Output Receptacles | (6) NEMA 5-15R |
| Built-In Bypass | Yes |
| Extended Runtime Support | Yes |
| SmartSlot Expansion | Yes |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz ±5 Hz Auto-Sensing |
| Input Voltage Range | 90V - 150V |
| Input Connection Type | NEMA 5-15P |
| Input Cord Length | 6 ft (1.83 m) |
| Number of Power Cords | 1 |
| Input Phase | Single-Phase |
| Â | Â |
| Output | Â |
| Rated Output Capacity | 1000VA |
| Rated Output Power | 800W |
| Maximum Configurable Power | 1000VA |
| Maximum Configurable Power (Watts) | 800W |
| Output Voltage | 120V |
| Output Voltage Distortion | Less Than 3% |
| Output Frequency | 50/60 Hz ±3 Hz User Adjustable |
| Frequency Regulation | ±0.1 Hz |
| Waveform Type | Pure Sine Wave |
| Crest Factor | 3:1 |
| Transfer Time | 0 ms |
| Output Receptacles | (6) NEMA 5-15R |
| Bypass Type | Built-In Automatic and Manual Bypass |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Maintenance-Free Sealed Lead-Acid |
| Included Battery Modules | 1 |
| Replacement Battery | RBC57 |
| RBC Quantity | 1 |
| Typical Runtime @ Half Load | 21 Minutes (400W) |
| Typical Runtime @ Full Load | 7.2 Minutes (800W) |
| Typical Recharge Time | 3 Hours |
| Extendable Runtime | Yes |
| External Battery Pack Support | Yes |
| Battery Design | Leakproof Suspended Electrolyte |
| Â | Â |
| Communications & Management | Â |
| Interface Ports | USB |
| Â | DB9 RS-232 |
| Â | SmartSlot |
| SmartSlot Expansion | 1 |
| Available SmartSlot Slots | 1 |
| Control Panel | LED Status Display with Load and Battery Bar Graphs |
| LED Indicators | On Line |
| Â | On Battery |
| Â | Replace Battery |
| Â | Overload |
| Â | Bypass |
| Audible Alarms | On Battery |
| Â | Low Battery |
| Â | Overload |
| Emergency Power Off (EPO) | Yes |
| Remote Monitoring | Supported with Optional Management Card |
| Network Management | Supported via SmartSlot |
| Remote Shutdown | Supported |
| Event Logging | Supported |
| Environmental Monitoring | Supported with Compatible NMC |
| Â | Â |
| Surge Protection & Filtering | Â |
| Surge Energy Rating | 540 Joules |
| Power Conditioning | Continuous Double Conversion |
| Noise Filtering | Yes |
| Â | Â |
| Physical | Â |
| Height | 3.35 in (8.5 cm) |
| Width | 17.0 in (43.2 cm) |
| Depth | 22.0 in (55.9 cm) |
| Net Weight | 60.5 lbs (27.5 kg) |
| Color | Black |
| Mounting Mode | Rack-Mounted |
| Rack Height | 2U |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Operating Humidity | 0–95% Non-Condensing |
| Storage Humidity | 0–95% Non-Condensing |
| Operating Altitude | Up to 10,000 ft |
| Acoustic Noise | 50 dBA Typical |
| Â | Â |
| Compliance | Â |
| Safety Certifications | UL Listed |
| Product Family | Smart-UPS RT |
| Condition | Refurbished UPS |
| Warranty | 1 Year Full Replacement Warranty Included |
