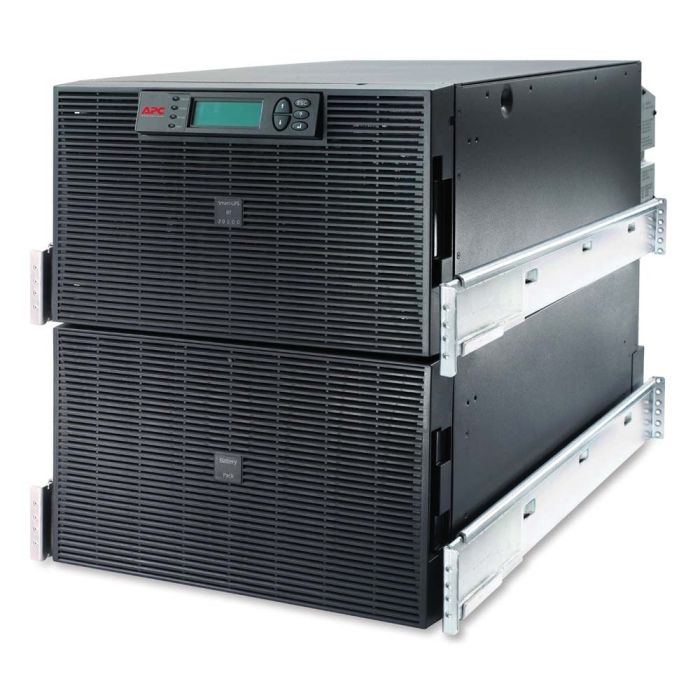

APC Smart-UPS RT 20kVA 16kW RM 12U 208V SURT20KRMXLT - Refurbished
APC Smart-UPS RT 20kVA 16kW RM 12U
Model: SURT20KRMXLT
Input: Hard wire 3-wire (2P + E) (208V - 114A)
Output: (4) NEMA L6-20R, (2) NEMA L6-30R
Double Conversion - Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$6,999.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS RT 20kVA 16kW RM, 12U, 208V
Condition: New batteries, refurbished UPS
Part Number: SURT20KRMXLT
Maximum output: 16kW / 20kVA
Typical backup time at half load: 15.14 minutes (8000 Watts)
Typical backup time at full load: 4.53 minutes (16000 Watts)
Warranty: 1 year full replacement warranty
Please note, the SURT20KRMXLT ships freight on a pallet, dock to dock. If you need special delivery arrangements, such as liftgate delivery, please get in touch with us prior to ordering so we can quote the service and make the needed arrangements.
APC Smart-UPS RT 20kVA 16kW RM SURT20KRMXLT Manual
SURT20KRMXLT - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
16000W |
||||
|
Rated Power in VA |
20000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
12U |
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Number of Battery Filled Slots |
4 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
2 h |
|
Number of Battery Replacement Quantity |
4 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery voltage |
+/- 192 V (split battery referenced to neutral) |
|
Discharge Battery Voltage |
+/- 154 V |
|
Battery Charger Power |
1910 W rated |
|
Battery Power in VAH |
3840 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192RMXLBP2 1 7680 VAh |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
53.3 cm |
|
Width |
43.2 cm |
|
Depth |
77.3 cm |
|
Net Weight |
247.73 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Network Frequency |
40 - 70 Hz auto-sensing |
|
Number of Input Connectors |
1 hard wire 3-wire (2P + E) |
|
Input Voltage Limits |
160 - 280V |
|
Maximum Input Current |
114A |
|
Switching Current Capacity |
125A |
|
Harmonic Distortion |
Less than 5 % |
|
Input Power Factor at Full Load |
0.99 |
Output:
|
Maximum Configurable Power in W |
16000W |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Output Frequency |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
|
Crest Factor |
3 : 1 |
|
UPS Type |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Output Overload Operation |
60 seconds at 125% and 30 seconds at 150% |
|
Bypass Type |
Built-in Static Bypass |
|
Efficiency |
93 % (in battery operation) |
|
Maximum configurable power in VA |
20000VA |
Conformance:
|
Product Certifications |
UL 1778 |
Environmental:
|
Ambient Air Temperature for Operation |
0 - 40 °C
|
|
Relative Humidity |
0 - 95 % non-condensing |
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Relative Humidity |
0 - 95 % non-condensing |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Heat Dissipation |
275 Btu/h
|
|
IP Degree of Protection |
IP20
|
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
|
Pre-Installed SmartSlotâ„¢ Cards |
AP9631 |
|
Preinstalled Device |
Network management card 2 with environmental monitoring |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
