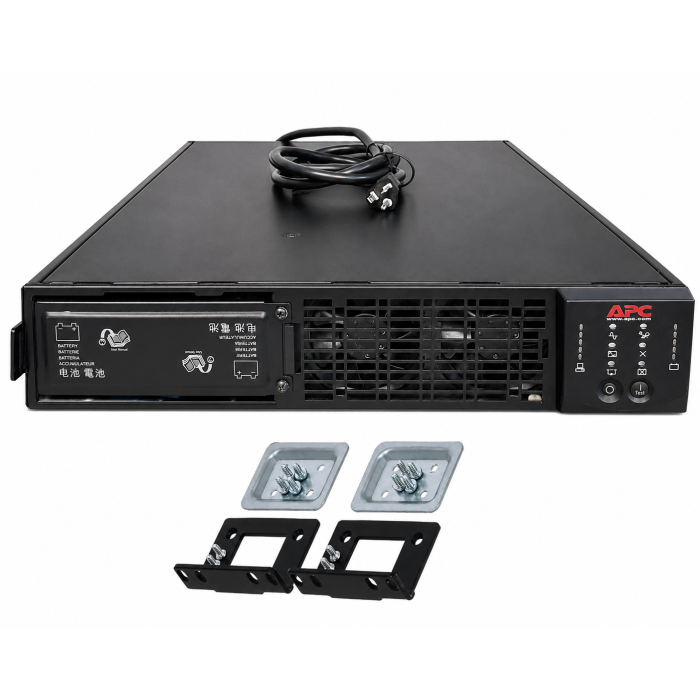

APC Smart-UPS RT 2200VA Online Double Conversion SURTA2200RMXL2U No Faceplate - Refurb
APC Smart-UPS RT 2200VA 1600W Rackmount 2U 120V Online UPS - Without Faceplate
Model: SURTA2200RMXL2U
Input: NEMA 5-20P (120V, 20A)
Output: (6) NEMA 5-15R (Battery Backup)
Online Double-Conversion UPS - Pure Sine Wave Output
SmartSlot for Optional Network Management Card
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$699.99
In stock
Manufacturer: APC
Model: Â APC Smart-UPS RT 2200VA 1600W Rackmount 2U 120V Online UPS
Condition:Â New Batteries, Refurbished UPS
Part Number: SURTA2200RMXL2UÂ
Maximum output: 1600W / 2200VA
Typical backup time at half load: 11 minutes (800 Watts)
Waveform: Pure Sine Wave
Topology: Online Double-Conversion
Typical backup time at full load: 3 minutes (1600 Watts)
Warranty: 1 Year Full Replacement Warranty
Description: The APC Smart-UPS RT SURTA2200RMXL2U is a double-conversion online 2U rackmount UPS designed to provide continuous 2200VA / 1600W power protection for servers, network switches, storage systems, VoIP equipment, and other mission-critical applications. It delivers pure sine wave output with zero transfer time, features a built-in automatic bypass, multifunction LED status display, hot-swappable sealed lead-acid batteries, and six NEMA 5-15R battery-backed outlets. The integrated SmartSlot supports optional APC Network Management Cards for secure remote monitoring and management, while USB and DB9 serial ports provide local communications. Compatible with external battery packs for extended runtime, this refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty.
Â
Â
APC Smart-UPS RT 2200VA RM SURTA2200RMXL2UÂ -Â User Manual
SURTA2200RMXL2U - APC Smart-UPS RT 2200VA RM Specifications:
| Product Overview | Â |
| UPS Topology | Online Double-Conversion |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Power Rating | 2200VA / 1600W |
| Maximum Configurable Power | 2200VA / 1600W |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Waveform Type | Pure Sine Wave |
| Input Connection | NEMA 5-20P |
| Output Connections | (6) NEMA 5-15R |
| Built-in Bypass | Automatic & Manual Internal Bypass |
| Battery Type | Maintenance-Free Sealed Lead-Acid |
| SmartSlot | 1 Available |
| Compatible Network Cards | AP9630, AP9631, AP9635, AP9617, AP9618, AP9619 |
| Included Accessories | Rack Mount Support Rails, USB Cable, RS-232 Cable, Documentation |
| Â | Â |
| User Interface, Alerts & Controls | Â |
| Front Panel Display | LED Status Display with Load & Battery Bar Graphs |
| Status Indicators | Online, On Battery, Replace Battery, Overload & Bypass |
| Audible Alarm | Battery, Low Battery and Overload Alarms |
| Alarm Management | User Configurable |
| Controls | Power ON/OFF, Self-Test |
| Automatic Self-Test | Yes |
| Emergency Power Off (EPO) | Yes |
| Bypass | Automatic & Manual Internal Bypass |
| Â | Â |
| Communications & Management | Â |
| Interface Ports | USB, DB-9 RS-232, SmartSlot |
| Available SmartSlot | 1 |
| SmartSlot Compatibility | AP9630, AP9631, AP9635, AP9617, AP9618, AP9619 |
| Remote Monitoring | Supported with Optional Network Management Card |
| Supported Protocols | HTTP, HTTPS, SNMP, SSH, Telnet (with Optional NMC) |
| Environmental Monitoring | Supported with AP9631/AP9635 |
| Management Software | APC PowerChute Business Edition |
| Remote Shutdown | Supported |
| Event Logging | Supported |
| User Authentication | Supported (with Optional NMC) |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz ±5% Auto-Sensing |
| Input Voltage Range | 90-150V |
| Input Plug | NEMA 5-20P |
| Number of Power Cords | 1 |
| Cord Length | 6 ft (1.83 m) |
| Input Phase | Single-Phase |
| Â | Â |
| Output | Â |
| Output Capacity | 2200VA / 1600W |
| Maximum Configurable Output | 2200VA / 1600W |
| Output Voltage | 120V |
| Waveform | Pure Sine Wave |
| Harmonic Distortion | Less than 3% |
| Output Frequency | 50/60 Hz ±3% (User Adjustable) |
| Transfer Time | Zero Transfer Time (Online Operation) |
| Output Connections | (6) NEMA 5-15R |
| Crest Factor | 3:1 |
| Built-in Bypass | Automatic & Manual |
| Surge Energy Rating | 540 Joules |
| EMI/RFI Filtering | Full-Time Multi-Pole Noise Filtering |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Sealed Lead-Acid |
| Included Battery Modules | 1 |
| Replacement Battery | RBC57 |
| Battery Quantity | 1 |
| Typical Runtime at Half Load | 11 Minutes (800W) |
| Typical Runtime at Full Load | 3 Minutes (1600W) |
| Typical Recharge Time | 3 Hours |
| Expected Battery Life | 3-5 Years |
| Hot-Swappable Batteries | Yes |
| Extendable Runtime | Yes |
| Compatible External Battery Pack | SURT48XLBP |
| Â | Â |
| Physical | Â |
| Height | 3.35 in (85 mm) |
| Width | 17.0 in (432 mm) |
| Depth | 22.0 in (559 mm) |
| Net Weight | 60.6 lbs (27.5 kg) |
| Rack Height | 2U |
| Mounting | Rackmount |
| Color | Black |
| USB Compatible | Yes |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating Humidity | 0-95% Non-Condensing |
| Storage Humidity | 0-95% Non-Condensing |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
| Storage Altitude | Up to 50,000 ft (15,240 m) |
| Acoustic Noise | 45 dBA |
| Heat Dissipation | 587 BTU/hr |
| IP Rating | IP20 |
| Product Certification | CSA, BSMI |
| Â | Â |
| Conformance | Â |
| Product Family | APC Smart-UPS RT |
| Condition | New Batteries, Refurbished UPS |
| Warranty | 1 Year Full Replacement Warranty Included |
