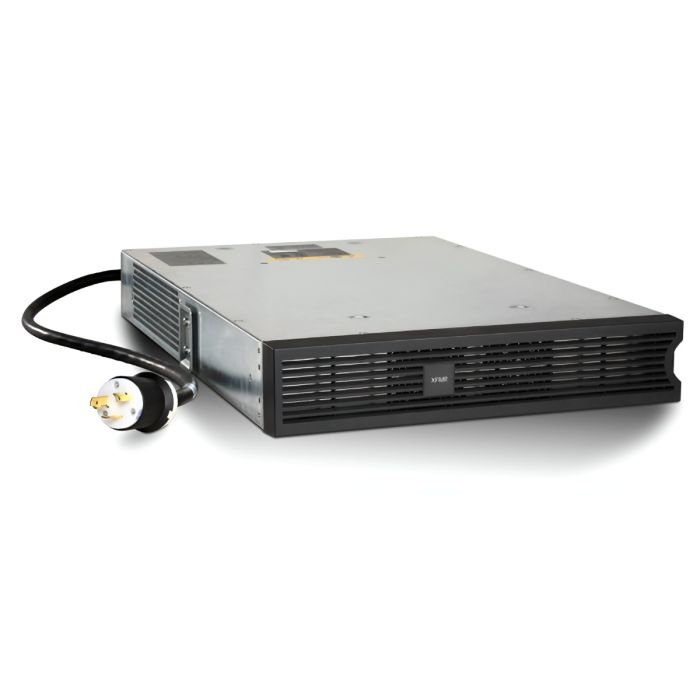

APC SURT005 Smart-UPS RT 5000VA Step-Down Transformer 30A 208V to 120V RM 2U - Refurbished

APC Smart-UPS RT Step-Down Transformer 208V to 120V, 5000VA, 30A
Input: NEMA L6-30P (208V - 30A)
Output: (12) NEMA 5-20R  (20A - 120V)
Model: SURT005
5000VA Rackmount Step-Down Transformer
2U Rackmount Design
Refurbished Step Down Transformer
1 Year Full Replacement Warranty Included



Back Order

Manufacturer: APC
Model: APC Smart-UPS RT 208V to 120V Step-Down Transformer 5000VA
Condition: Refurbished
Part Number: SURT005
Warranty: 1 Year Full Replacement Warranty

Description: The APC SURT005 is a 5000VA rackmount step-down transformer designed to convert 208V input power to 120V output power for use with APC Smart-UPS RT systems and other compatible equipment. Featuring a NEMA L6-30P input connection and (12) NEMA 5-20R output receptacles, the SURT005 provides reliable voltage conversion and power distribution for servers, networking equipment, telecommunications systems, and other critical applications requiring 120V power. Its 2U rackmount form factor integrates easily into standard equipment racks and includes built-in circuit breaker protection for enhanced safety and reliability. Refurbished and backed by a 1 Year Full Replacement Warranty.





APC Smart-UPS RT Step-Down Transformer 208V to 120V, 5000V - User Manual







SURT005 - APC Step-Down Transformer - 208V to 120V Specifications:



Key Features
Transformer Type Step-Down Transformer
Form Factor Rackmount
Rack Height 2U
Input Voltage 208V
Output Voltage 120V
Load Capacity 5000VA
Input Connection NEMA L6-30P
Output Connections (12) NEMA 5-20R
Circuit Breaker Protection Yes

Input
Nominal Input Voltage 208V
Input Connection Type NEMA L6-30P
Input Frequency 50/60 Hz
Maximum Line Current 24A
Input Current Limit 30A
Load Capacity 5000VA
Cable Length 3 ft (0.91 m)
Number of Power Cords 1

Output
Nominal Output Voltage 120V
Output Connections (12) NEMA 5-20R
Number of Output Receptacles 12
Protection Type Circuit Breaker
Maximum Output Current 24A
Output Distribution Multiple 120V Branch Circuits

Physical
Color Black
Height 3.50 in (8.9 cm)
Width 19.00 in (48.26 cm)
Depth 26.00 in (66.04 cm)
Net Weight 95.20 lbs (43.18 kg)
Rack Height 2U
Mounting Mode Rack-Mounted
Mounting Location Front
Mounting Preference Lower

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -13°F to 149°F (-25°C to 65°C)
Operating Humidity 5% to 95%
Storage Humidity 5% to 95%
Operating Altitude Up to 10,000 ft
Storage Altitude Up to 50,000 ft (15,240 m)

Conformance
Product Certifications CSA
  UL Listed
Condition Refurbished
Warranty 1 Year Full Replacement Warranty Included
