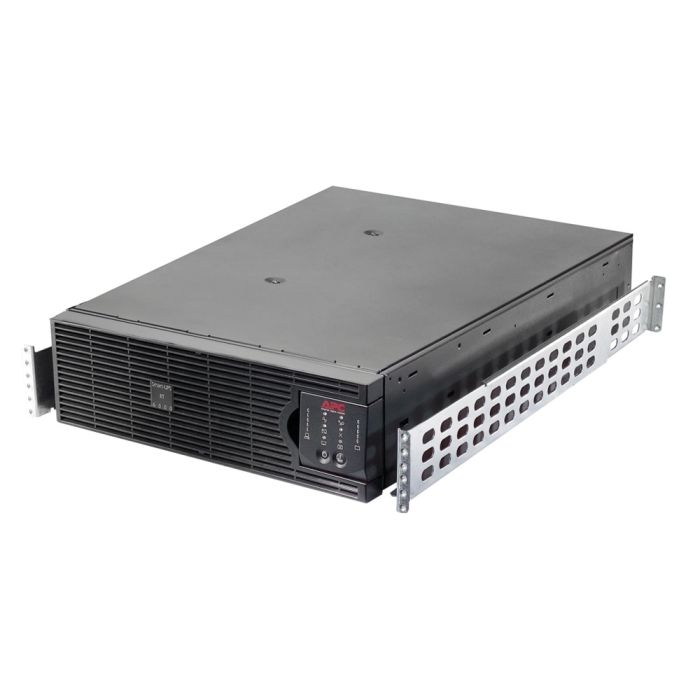

APC Smart-UPS RT 3000VA 2100W RM 3U 208V SURT3000RMXLT - Refurbished
APC Smart-UPS RT 3000VA 2100W RM 3U
Model: SURT3000RMXLT
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-20R (Battery Backup), (2) NEMA L6-30R (Battery Backup)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$999.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS RT 3000VA 2100W, RM, 3U, 208V
Condition: New batteries, refurbished UPS
Part Number: SURT3000RMXLT
Maximum output: 2100W / 3000VA
Typical backup time at half load: 11.4 minutes (1050 Watts)
Typical backup time at full load: 3.8 minutes (2100 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 3000VA 2100W SURT3000RMXLT Manual
SURT3000RMXLT - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
2100W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
3U |
||||
|
Cable Length |
10 ft (3.05 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
2 |
|
Typical Recharge Time |
2.5 h |
|
RBC Quantity |
1 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Charge Power (Watts) |
382 W rated |
|
Battery Power in VAH |
960 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192RMXLBP 1 2880 VAh |
|
Extendable Run Time |
1 |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
5.12 inches (130mm, 13.0cm) |
|
Width |
17.01 inches (432mm, 43.2cm) |
|
Depth |
25.98 inches (660mm, 66.0cm) |
|
Net Weight |
120.26 lbs. (54.55kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Efficiency at full load |
160 - 280 V |
Output:
|
Max Configurable Power (Watts) |
2100W |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at full load |
91 % full load) |
|
Maximum configurable power in VA |
3000VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0 - 95 %
|
|
Heat Dissipation |
203 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
655 Btu/h |
Communications & Management:
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
