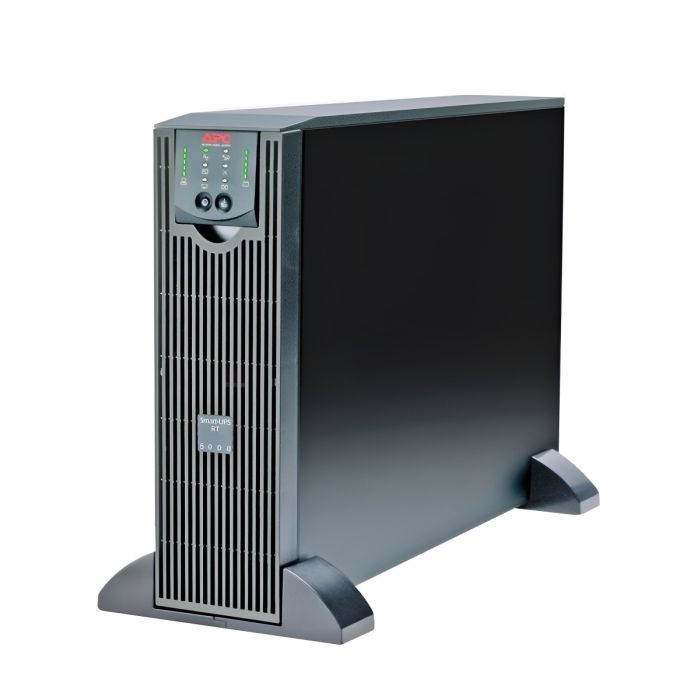

APC Smart-UPS RT 5000VA 3500W Tower 3U 208V 240V SURT5000XLT - Refurbished
APC Smart-UPS RT 5000VA 3500W Tower 3U 208V
Model: SURT5000XLT
Input: NEMA L6-30P
Output: (2) NEMA L6-30R, (2) NEMA L6-20R
Double Conversion UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,699.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS RT 5000VA 3500W, Tower, 208V
Condition: New batteries, refurbished UPS
Part Number: SURT5000XLT
Maximum output: 3500WÂ /Â 5000VA
Typical backup time at half load: 15.22 minutes (1750 Watts)
Typical backup time at full load: 5.0 minutes (3500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 5000VA 3500W SURT5000XLT User's Manual
Â
SURT5000XLT - APC Smart-UPS RT 5000VA 3500W Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
3500W |
||||
|
Rated Power in VA |
5000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
3U |
||||
|
Cable Length |
10 ft (3.05 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
5.12 in (13 cm) |
|
Depth |
25.98 in (66 cm) |
|
Net Weight |
120.28 lb(US) (54.56 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Efficiency at Full Load |
160Â - 280V |
Output:
|
Max Configurable Power (Watts) |
3500W |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Crest Factor |
3:1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at Full Load |
92 % Full Load |
|
Maximum Configurable Power in VA |
5000VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Relative Humidity |
0Â - 95% |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
1040 Btu/h |
Batteries & Runtime:
|
Included Battery Modules |
2
|
|
Typical Recharge Time |
2.5 h |
|
RBC Quantity |
1 |
|
Additional Information |
Configurable for 208 or 240 Nominal Output Voltage |
|
Battery Charge Power (Watts) |
341 W rated |
|
Battery Power in VAH |
855 VAh runtime |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192XLBP 1 2564 VAh |
|
Extendable Run Time |
1 |
Communications & Management:
|
Free Slots |
0
|
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card with environmental monitoring |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m
|
