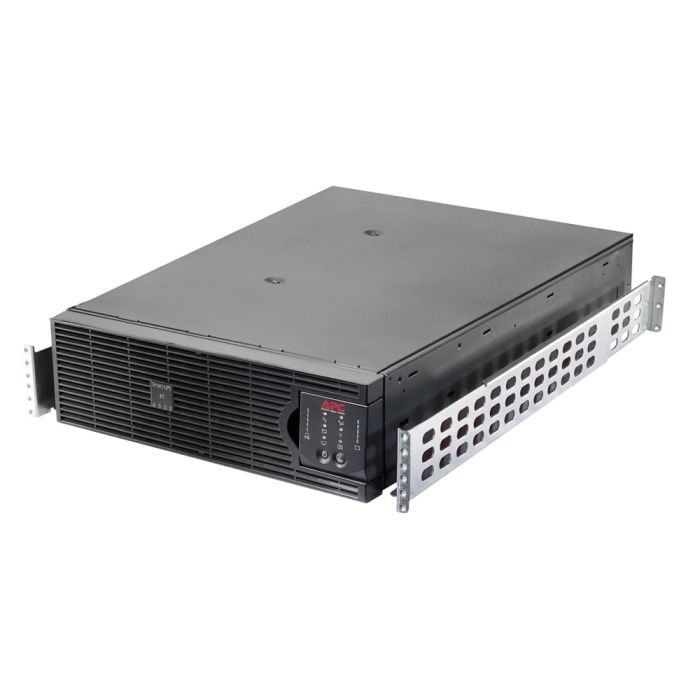

APC Smart-UPS 6kVA 4200W Double Conversion Online RM 3U 208V SURT6000RMXLT3U -Refurbished
APC Smart-UPS RT 6000VA 4200W RM 3U SURT6000RMXLT3U
Model: SURT6000RMXLT3U
Input: NEMA L6-30P (120V - 30A)
Output: (2) NEMA L6-20R (Battery Backup), (2) NEMA L6-30R (Battery Backup)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$2,399.99
In stock
Manufacturer: APC
Model: SURT6000RMXLT3U
Condition: New batteries, refurbished UPS
Maximum output: 4200WÂ /Â 6000VA
Typical backup time at half load: 15.80 minutes (2100 Watts)
Typical backup time at full load: 5.30 minutes (4200 Watts)
Warranty: 1 year full replacement warranty
Â
APC Smart-UPS RT 6000VA 4200W RM 3U 208V SURT6000RMXLT3U - User Manual
Â
SURT6000RMXLT3U - APC Smart-UPS RT 6000VA Specifications:
Output:
|
Output power capacity |
4.2kW / 6.0kVA |
||||
|
Max Configurable Power (Watts) |
4.2kW / 6.0kVA |
||||
|
Nominal Output Voltage |
208V |
||||
|
Output Voltage Note |
Configurable for 208 or 240 nominal output voltage |
||||
|
Efficiency at Full Load |
92.0 % |
||||
|
Output Voltage Distortion |
Less than 3% |
||||
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
||||
|
Other Output Voltages |
240 |
||||
|
Load Crest Factor |
3:1 |
||||
|
Topology |
Double Conversion Online |
||||
|
Waveform type |
Sine wave |
||||
|
Output Connections |
|
||||
|
Bypass |
Internal Bypass (Automatic and Manual) |
Input:
|
Nominal Input Voltage |
208V |
||
|
Input frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
||
|
Input Connections |
|
||
|
Cord Length |
10ft (3.05meters) |
||
|
Input voltage range for main operations |
160 - 280V |
||
|
Input voltage adjustable range for mains operation |
100 - 280V |
||
|
Number of Power Cords |
1 |
||
|
Efficiency at Full Load |
92.0 % |
||
|
Other Input Voltages |
240 |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Included Battery Modules |
2 |
|
Typical recharge time |
2.5hour(s) |
|
Replacement Battery |
APCRBC140 |
|
Expected Battery Life (years) |
3 - 5 |
|
RBC Quantity |
1 |
|
Extendable Run Time |
1 |
|
Battery Volt-Amp-Hour Capacity |
1056 |
Communications and Management:
|
Interface Port(s) |
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
|
Pre-Installed SmartSlotâ„¢ Cards |
AP9631 |
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge energy rating |
555 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
5.1 inches (130mm, 13.0cm)
|
|
Maximum Width |
17.0 inches (432mm, 43.2cm) |
|
Maximum Depth |
26.0 inches (660mm, 66.0cm) |
|
Rack Height |
3U |
|
Net Weight |
120.0 lbs. (54.55 kg) |
|
Shipping Weight |
140.0 lbs. (63.64 kg) |
|
Shipping Height |
13.68 inches (347mm, 34.7cm) |
|
Shipping Width |
23.73 inches (603mm, 60.3cm) |
|
Shipping Depth |
38.6 inches (980mm, 98.0cm) |
|
Color |
Black |
