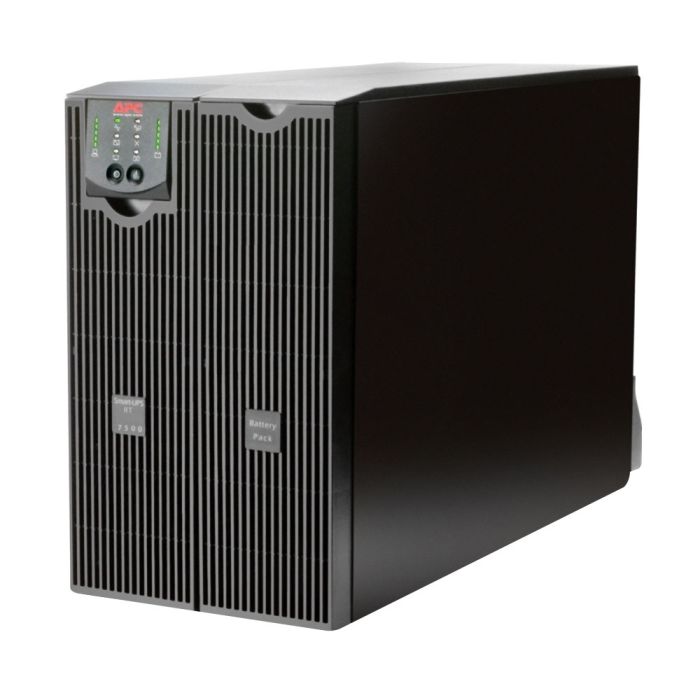

APC Smart-UPS RT 7500VA 6000W Tower 208/240V SURT7500XLT - Refurbished
APC Smart-UPS RT 7500VA 6000W 240V Tower/RM 6U
Model: SURT7500XLT
Input: Hard Wire 3-wire (2PH + G)
Output: (2) NEMA L6-30R, (2) NEMA L6-20R, (1) Hard Wire 3-wire (2PH + G),Â
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$2,999.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS RT 7500VA 6000W Tower, 208V
Condition: New batteries, refurbished UPS
Part Number: SURT7500XLT
Maximum output: 6000W / 7500VA
Typical backup time at half load: 40 minutes (3000 Watts)
Typical backup time at full load: 20 minutes (6000 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 7500VA 6000W LCD SURT7500XLT Manual
SURT7500XLT - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
6000W |
||||
|
Rated Power in VA |
7500VA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
Hard Wire 3-wire (2PH + G) 1 |
||||
|
Number of Rack Unit |
6U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
2.2 h |
|
RBC Quantity |
2 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Charge Power (Watts) |
801 W rated |
|
Battery Power in VAH |
1770VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192XLBP 1 3060 VAh |
|
Extendable Run Time |
1 |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
10.35 in (26.3 cm) |
|
Depth |
26.10 in (66.3 cm) |
|
Product Weight |
244.51 lb(US) (110.91 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
|
Efficiency at Full Load |
160 - 280 V |
Output:
|
Max Configurable Power (Watts) |
6000W |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Maximum Configurable Power in VA |
7500VA |
|
Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at Full Load |
92 % full load |
|
Maximum configurable power in VA |
7500VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0 - 95% |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Online Thermal Dissipation |
1535 Btu/h
|
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
|
Free Slots |
0 |
|
Pre-Installed SmartSlot™ Cards |
Network management card with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
555 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
