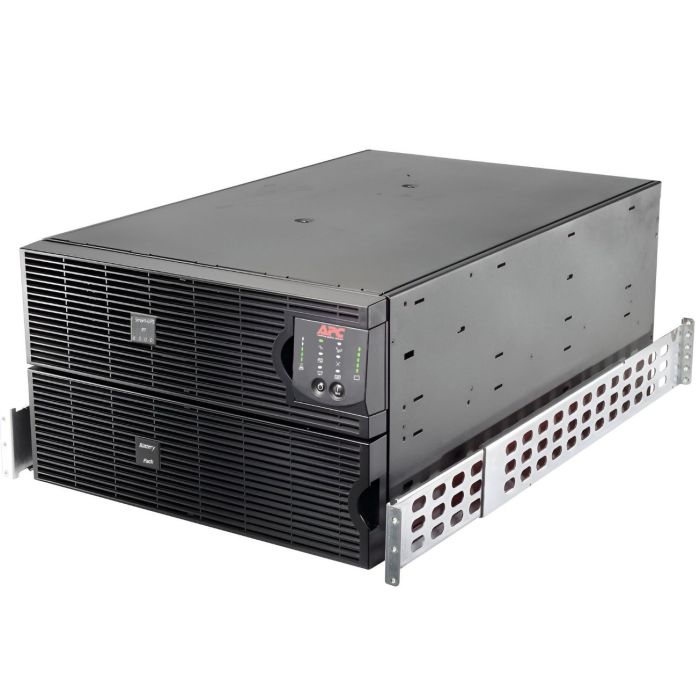

APC Smart-UPS RT 8000VA 6400W RM 6U 50A 208V/240V SURT8000RMXLT6U - Refurbished
APC Smart-UPS RT 8000VA 6400W RM 6U 50A
Model: SURT8000RMXLT6U
Input: Hard Wire 3-wire (2PH + G)
Output: (2) L6-30R, (2)L6-20R, (1) Hard Wire 3-wire (2PH + G)Â
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
$2,399.99
$2,199.99
In stock
Manufacturer: APC
Model: APC Smart-UPS RT 8000VA 6400W, RM, 6U, 208V-240V
Condition: New batteries, refurbished UPS
Part Number: SURT8000RMXLT6U
Maximum output: 6400W / 8000VA
Typical backup time at half load: 17.9 minutes (3200 Watts)
Typical backup time at full load: 6.3 minutes (6400 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 8000VA 6400W SURT8000RMXLT6U - User Manual
SURT8000RMXLT6U - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
6400W |
||||
|
Rated Power in VA |
8000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
|
||||
|
Number of Rack Unit |
6U |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
2.2 h |
|
RBC Quantity |
2 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Charge Power (Watts) |
782 W rated |
|
Battery Power in VAH |
1728 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192RMXLBP3U 1 3072 VAh |
|
Extendable Run Time |
1 |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
10.35 in (26.3 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
28.98 in (73.6 cm) |
|
Net Weight |
244.51 lb(US) (110.91 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
|
Efficiency at Full Load |
160 - 280 V |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
Output:
|
Max Configurable Power (Watts) |
6400W |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at Full Load |
93 % full load |
|
Maximum Configurable Power in VA |
8000VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
1739 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
0 |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
1265 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
