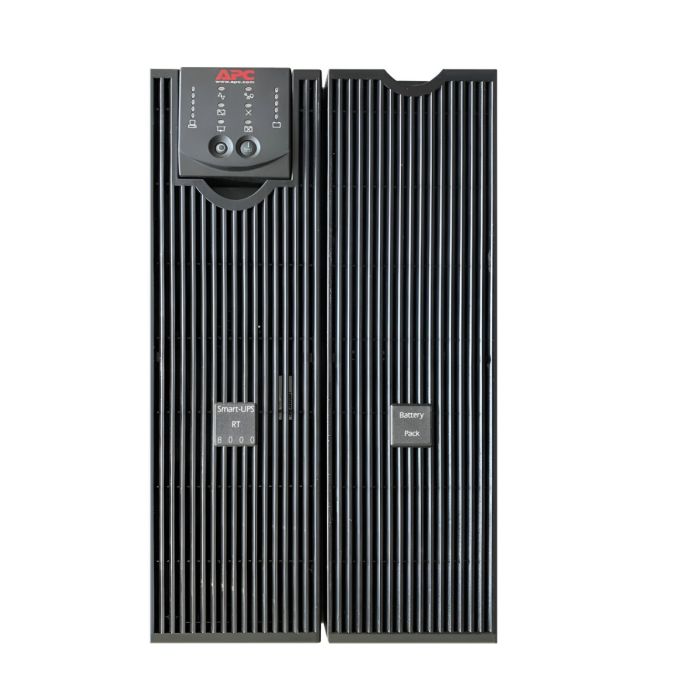

APC Smart-UPS RT 8000VA 6400W Double Conversion Online Tower 240V SURT8000XLT - Refurbished
APC Smart-UPS RT 8000VA 6400W Tower 208V/240V 50A
Model: SURT8000XLT
Input: Hard Wire 3-wire (2PH + G) - 208V
Output: (2) L6-20R, (2) L6-30R, (1) Hard Wire 3-wire (2PH + G)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$2,199.99
In stock
Manufacturer: APC
Model: APC Smart-UPS RT 8000VA 6400W Tower 208V 50A
Condition: New batteries, refurbished UPS
Part Number: SURT8000XLT
Maximum output: 6400WÂ /Â 8000VA
Typical backup time at half load: 20.0 minutes (3200 Watts)
Typical backup time at full load: 7.3 minutes (6400 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 8000VA 6400W Tower SURT8000XLT Manual
SURT8000XLT - APC Smart-UPS RT 8000VA Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Kw Rating |
6400W |
||||
|
Rated Power in VA |
8000VA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
|
||||
|
Number of Rack Unit |
6U |
Batteries & Runtime:
|
Battery Type |
Lead-Acid battery |
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
2.2 h |
|
RBC Quantity |
2 |
|
Battery Charge Power (Watts) |
782 W rated |
|
Battery Life |
3-5 year(s) |
|
Extendable Run Time |
1 |
General:
|
Topology |
Double Conversion Online |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 inches (432mm, 43.2cm) |
|
Width |
10.35 inches (263mm, 26.3cm) |
|
Depth |
28.98 inches (736mm, 73.6cm) |
|
Net Weight |
244.51 lbs. (110.91kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Number of input connectors |
1 Hard Wire 3-wire (2PH + G) |
|
Efficiency at Full Load |
160-280 V |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
Output:
|
Maximum configurable power in VA |
8000VA |
|
Max Configurable Power (Watts) |
6400W |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Waveform Type |
Sine wave |
|
Harmonic Distortion |
Less than 3% |
|
Crest Factor |
3 : 1 |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
Conformance:
|
Product Certifications |
CSA
FCC part 15 class A UL 1778 |
Environmental:
|
Ambient Air Temperature for Operation |
32-104 °F (0-40°C) |
|
Relative Humidity |
0-95% non-condensing |
|
Operating Altitude |
0-10000 ft |
|
Ambient Air Temperature for Storage |
5-113 °F (-15-45 °C) |
|
Storage Relative Humidity |
0-95% non-condensing |
|
Storage Altitude |
0-50000 ft (0.00…15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
1739 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
0 |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection & Filtering:
|
Surge Energy Rating |
1265 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
