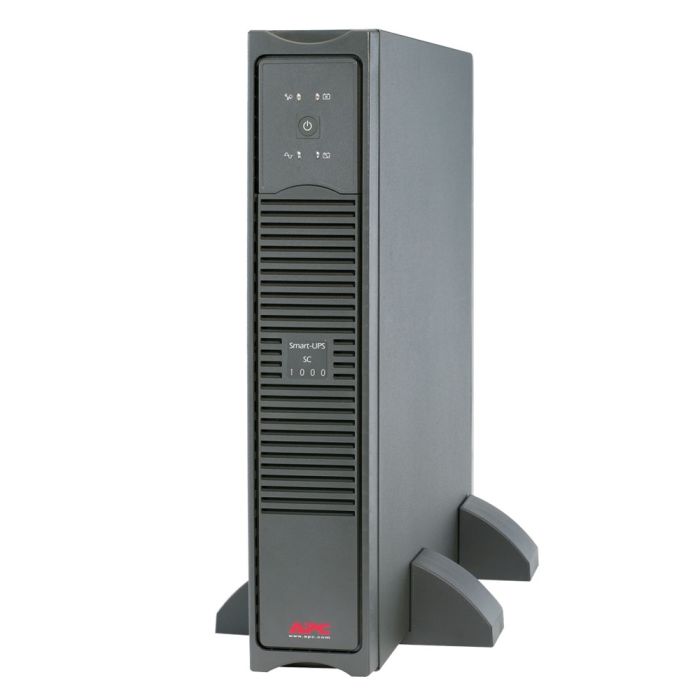

APC Smart-UPS SC 1000VA 600W Tower 120V SC1000 - Refurbished
APC Smart-UPS SC 1000VA 600W Tower
Model: SC1000
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$199.99
Out of stock
Manufacturer: APC
Model: APC Smart-UPS SC 1000VA 600W 120V
Condition: New batteries, refurbished UPS
Part Number: SC1000
Maximum output: 600W / 1000VA
Typical backup time at half load: 18.11 minutes (300 Watts)
Typical backup time at full load: 6.4 minutes (600 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SC 1000VA 600W Tower SC1000 Manual
SC1000 - APC Smart-UPS SC 1000VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
600 W |
||
|
Rated Power in VA |
1000 VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
1.83 m |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
Physical:
|
Colour |
Grey |
|
Height |
8.9 cm |
|
Width |
43.2 cm |
|
Depth |
46.3 cm |
|
Net Weight |
16.36 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Rack-mounted with Kit |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Network Frequency |
47 - 63 Hz |
|
Input Voltage Limits |
87 - 152 Adjustable, 95 - 142V |
Output:
|
Maximum Configurable Power in W |
600 W |
|
Harmonic Distortion |
Less than 5 % at Full Load |
|
Output Frequency |
47 - 53 Hz for 50 Hz nominal sync to mains |
|
UPS Type |
Line Interactive |
|
Wave Type |
Stepped Approximation to a Sinewave |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
0 - 40°C |
|
Relative Humidity |
0 - 95% |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
-5 - 45°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Altitude |
0.00 - 15240.00 m |
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
180 Btu/h |
Batteries & Runtime:
|
Number of Battery Filled Slots |
0
|
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
8 h |
|
Number of Battery Replacement Quantity |
1 |
|
Replacement Battery |
RBC33 |
Communications & Management:
|
Free Slots |
0
|
|
Control Panel |
LED status display with on line: on battery: replace battery and overload indicators |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rate |
445 J
|
|
Noise Suppression |
Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449 |
