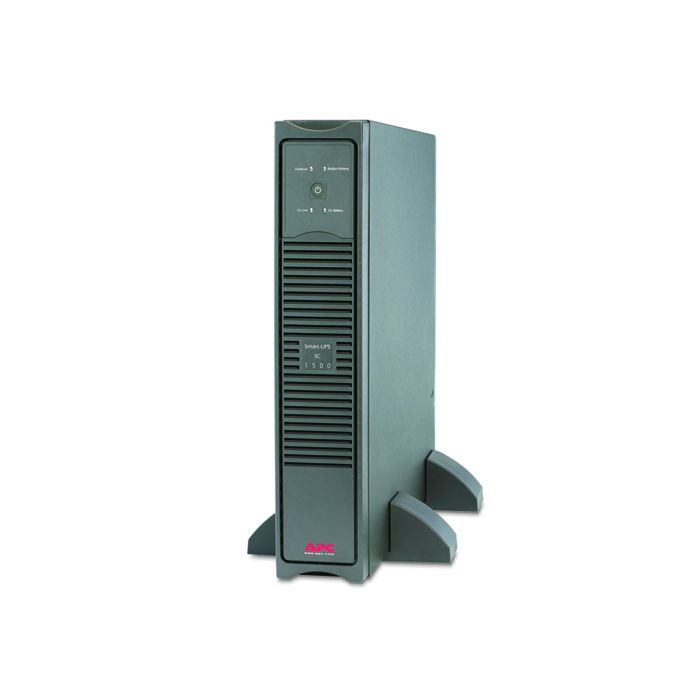

APC Smart-UPS SC 1500 SC1500 Tower/Rack

APC Smart-UPS SC 1500 SC1500 Tower/Rack
865 W / 1440 VA

(6) NEMA 5-15R
Brand New, Fresh Stock

Availability: Out of stock

$379.99
Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada

Description

Details

Manufacturer: APC
Model Description: APC Smart-UPS SC 1500 Tower/Rackmount Convertible. 1440VA 865W 120V

Condition: Brand New & Fresh Stock
Part Number: SC1500
Maximum output:
865 W / 1440 VA
Typical backup timeat half load: 20.9 minutes (432.5 Watts)
Typical backup time at full load: 7.6 minutes (865 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 2 Year Full Replacement Warranty

Includes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signaling RS-232 cable, USB cable, User Manual

The ExcessUPS Advantage:
1. Always Fresh Stock
2. The Best Warranty in the Industry
3. Unbeatable Customer Service
4. Great Prices


A brief summary of features for the APC Smart-UPS SC1500:

·         Adjustable voltage-transfer points

·         Audible alarms

·         Automatic restart of loads after UPS shutdown

·         Automatic self-test

·         Battery failure notification

·         Boost and Trim Automatic Voltage Regulation (AVR)

·         Cold-start capable

·         Data line Surge Protection

·         Front-access servicing

·         Hot-swappable batteries

·         InfraStruXure Manager Compatible

·         Intelligent battery management

·         LED status indicators

·         Network manageable

·         Power Conditioning

·         Rack/Tower convertible

·         Resettable circuit breakers

·         Safety-agency approved

·         Serial Connectivity

·         USB connectivity

APC Smart-UPS SC 1500 SC1500 User's Manual


Detailed specifications for the APC Smart UPS SC 1500:

Output:

Output power capacity

865 Watts / 1440 VA

Max Configurable Power

865 Watts / 1440 VA

Nominal output voltage

120V

Output Voltage Distortion

less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Waveform type

Stepped approximation to Sinewave

Output Connections

(6) NEMA 5-15R


Input:

Nominal input voltage

120V

Input frequency

47 - 63 Hz

Input Connection Type

NEMA 5-15P



Cord Length

6 feet ( 1.83 meters )

Input voltage range for main operations

95 - 142V

Input voltage adjustable range for mains operation

87 - 152V


Batteries and Runtime:

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Replacement battery cartridge

RBC59

RBC™ Quantity

1

Typical backup time
at half load

20.9 minutes (432.50 Watts)

Typical backup time
at full load

7.6 minutes (865 Watts)

Runtime Chart

Smart-UPS SC


Communications and Management:

Interface port

DB-9 RS-232 , USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

N/A


Surge:

Surge energy rating

445 Joules

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical:

Maximum height

3.50 inches (89 mm)

Maximum width

17.00 inches (432 mm)

Maximum depth

18.24 inches (463 mm)

Net weight

47.00 lbs. (21.36 kg)

Shipping Weight

54.00 lbs. (24.56 kg)
