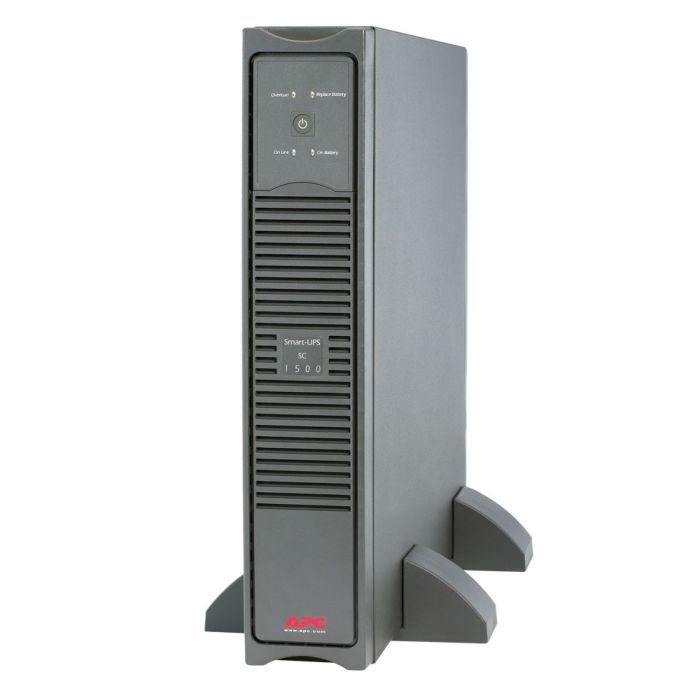

APC Smart-UPS SC 1500VA 865W Tower 120V SC1500 - Refurbished
APC Smart-UPS SC 1500VA 865W Tower 120V
Model: SC1500
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$249.99
Out of stock
Manufacturer: APC
Model: APC Smart-UPS SC 1500VA 865W Tower 120V
Condition: New batteries, refurbished UPS
Part Number: SC1500
Maximum output: 865W / 1500VA
Typical backup time at half load: 20.9 minutes (432.5 Watts)
Typical backup time at full load: 7.6 minutes (865 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SC 1500VA 865W Tower SC1500 Manual
SC1500 - APC Smart-UPS SC 1500VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
865W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Battery Type |
Lead-Acid battery |
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
8 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 year(s) |
|
Replacement Battery |
RBC59 |
|
Battery Charge Power (Watts) |
34 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Entry level |
|
Redundant |
No |
Physical:
|
Color |
Gray |
|
Height |
3.5 inches (89mm, 8.9cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
18.24 inches (463mm, 46.3cm) |
|
Net Weight |
47.0 lbs. (21.36kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted with kit |
|
USB Compatible |
Yes |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Efficiency at Full Load |
87-152 V adjustable |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum configurable power in VA |
1440VA |
|
Max Configurable Power (Watts) |
865W |
|
Maximum Output Current |
12A |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA
UL Listed |
Environmental:
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
180 Btu/h |
|
Operating Altitude |
0-10000 ft |
|
Ambient air temperature for operation |
32-104 °F (0-40 °C) |
|
Ambient Air Temperature for Storage |
23-113 °F (-5-45 °C) |
|
Storage Relative Humidity |
0-95% |
|
Relative Humidity |
0-95 % |
Communications & Management:
|
Free Slots |
0 |
|
Control panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection & Filtering:
|
Data Line Protection |
RJ45 Modem/Fax/DSL/10-100 Base-T protection
|
|
Surge Energy Rating |
445 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
