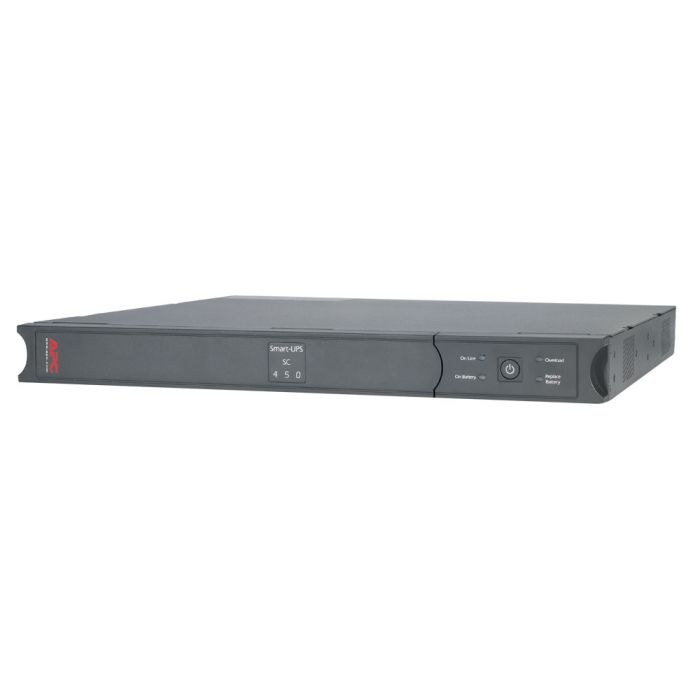

APC Smart-UPS SC 450VA 280W RM 1U 120V SC450RMI1U - Refurbished
APC Smart-UPS SC 450VA 280W RM 1U SC450RMI1U
Model: SC450RMI1U
Input: IEC 320 C14
Output: (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)
Line-Interactive UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$149.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SC 450VA 280W RM 1U 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: SC450RMI1U
Maximum output: 280W / 450VA
Typical backup time at half load: 19.4 minutes (140 Watts)
Typical backup time at full load: 5.9 minutes (280 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SC 450VA 280W RM 1U SC450RMI1U Manual
SC450RMI1U - APC Smart-UPS SC 450VA 280W Specifications:
Key Features:
|
Output Power Capacity |
280W / 450VA |
||||
|
Rack Height |
1U |
||||
|
Output Connections |
|
||||
|
Nominal Output Voltage |
230V |
||||
|
Nominal Input Voltage |
230V |
||||
|
Input Connections |
|
||||
|
Cord Length |
6ft (1.83meters) |
Output:
|
Max Configurable Power (Watts) |
280W / 450VA |
|
Output Voltage Distortion |
Less than 5 % at full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains |
|
Topology |
Line Interactive |
|
Waveform type |
Stepped Approximation to a Sinewave |
|
Transfer Time |
4 ms typical : 8 ms maximum |
Input:
|
Input frequency |
50/60 Hz +/- 3 Hz Auto-sensing |
|
Input voltage range for main operations |
151 - 302 Adjustable, 195 - 265V |
Batteries & Runtime:
|
Battery Type |
Lead-acid battery |
|
Nominal Battery Voltage |
12 V |
|
Typical Recharge Time |
5hour(s) |
|
Replacement Battery |
RBC18 |
|
Expected Battery Life (years) |
3 - 5 |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
22 Watts |
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232 |
|
Control Panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Optional |
Surge Protection and Filtering:
|
Surge Energy Rating |
320 Joules |
|
Data Line Protection |
RJ11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines), RJ45 10/100 Base-T Ethernet protection |
|
Filtering |
Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
44mm, 4.4cm
|
|
Maximum Width |
432mm, 43.2cm |
|
Maximum Depth |
383mm, 38.3cm |
|
Net Weight |
10.18kg |
|
Shipping Weight |
11.73kg |
|
Shipping Height |
164mm, 16.4cm |
|
Shipping Width |
476mm, 47.6cm |
|
Shipping Depth |
589mm, 58.9cm |
|
Color |
Grey |
