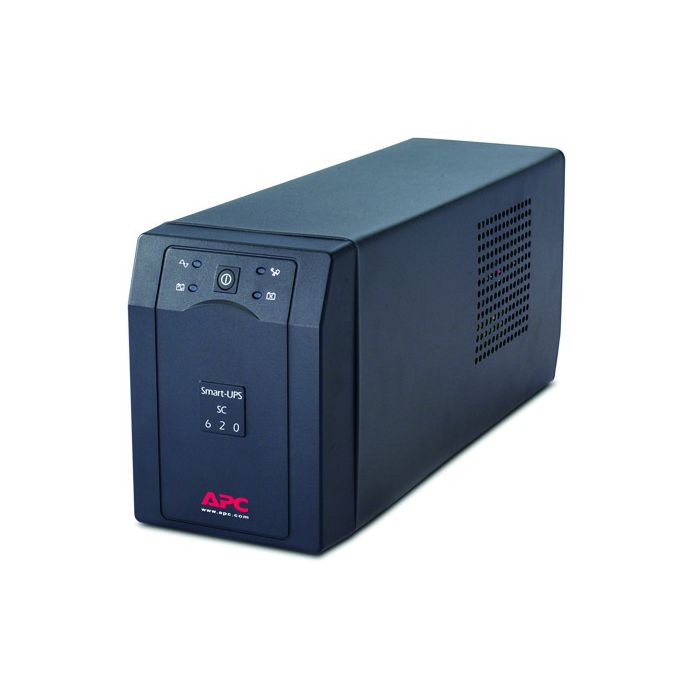

Main image Click to view image in fullscreen APC SMART-UPS SC 620 SC620

APC SMART-UPS SC 620 SC620

APC SMART-UPS 700
390W / 620VA SC620
(4) NEMA 5-15R
Refurbished with New Batteries
1 Year Warranty Included

Out of stock

Manufacturer: APC
Model Description: APC Smart UPS SC 620
Condition: New batteries, refurbished UPS
Part Number: SC620
Maximum output: 390W / 620VA
Typical backup time at half load: 15.7 minutes (195 Watts)
Typical backup time at full load: 5.5 minutes (390 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 1 Year Full Replacement Warranty

APC Smart-UPS SC 620 SC620 User's Manual

SC620 Specifications:

Output:

Output power capacity

390 Watts / 620 VA

Max Configurable Power

390 Watts / 620 VA

Nominal output voltage

120V

Output Voltage Distortion

less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Waveform type

Stepped approximation to Sinewave

Output Connections

(4) NEMA 5-15R

Input:

Nominal input voltage

120V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connection Type

NEMA 5-15P

Cord Length

6 feet ( 1.83 meters )

Input voltage range for main operations

82 - 144V

Input voltage adjustable range for mains operation

75 - 154V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC4
RBC Quantity	1
Typical backup time at half load	15.7 minutes (195 Watts)
Typical backup time at full load	5.5 minutes (390 Watts)
Runtime Chart	Smart-UPS SC

Communications and Management:

Interface port	DB-9 RS-232
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Optional

Surge:

Surge energy rating	412 Joules
Filtering	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection	RJ-45 Modem/Fax/DSL/10-100 Base-T protection

Physical:

Maximum height	6.60 inches (168 mm)
Maximum width	4.70 inches (119 mm)
Maximum depth	14.50 inches (368 mm)
Net weight	27.00 lbs. (12.28 kg)
Shipping Weight	29.00 lbs. (13.18 kg)
