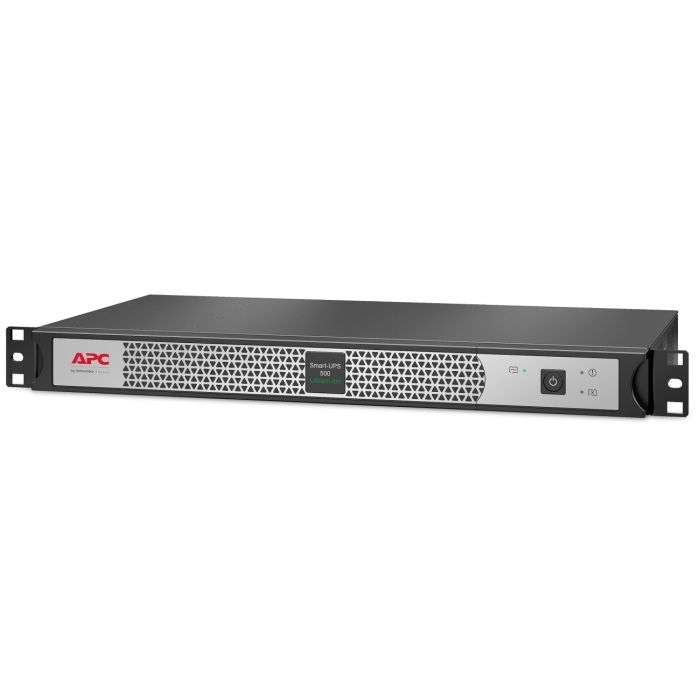

APC Smart-UPS SCL 500VA 300W 120V 1U Lithium-Ion Output:(4)5-15R, SCL500RM1U – Refurbished
APC Smart-UPS Lithium-Ion 500VA 300W
Model: SCL500RM1U
Input: NEMA 5-15P (120V – 15A)
Output: (4) NEMA 5-15R (Battery Backup + Surge Protection)
Topology: Line-Interactive UPS – Pure Sine Wave / Lithium-Ion
Condition: New Lithium-Ion Batteries, Refurbished UPS
Warranty: 1-Year Warranty Included
$349.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS Lithium-Ion 500VA 300W Rackmount 1U, 120V
Condition: Lithium-Ion Battery Pack, Refurbished UPS
Part Number: SCL500RM1U
Maximum output: 300W / 500VA
Typical backup time at half load: 9 minutes (150 Watts)
Typical backup time at full load: 3 minutes (300 Watts)
Warranty: 1-year full replacement warranty
APC Smart-UPS Lithium-Ion 500VA 300W - User's Manual
SCL500RM1U – APC Smart-UPS Lithium-Ion 500VA Specifications.-
Main
|
Main Input Voltage |
120V |
|
kW Rating |
300W |
|
Rated Power in VA |
500VA |
|
Output Connection Type |
(4) NEMA 5-15R (Battery + Surge) |
|
Cable Length |
6 ft (1.83 m) |
|
Number of Cables |
1 |
|
Battery Type |
Lithium-Ion |
|
Input Connections |
NEMA 5-15P |
General
|
Power Module Free Slots |
0 |
|
Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical
|
Color |
Black |
|
Height |
1.66 in (4.2 cm) |
|
Width |
17.0 in (43.2 cm) |
|
Depth |
9.27 in (23.5 cm) |
|
Net Weight |
11.5 lb (5.2 kg) |
|
Mounting Preference |
Rackmount |
|
Mounting Mode |
1U Rack-Mount |
|
Two-Post Mountable |
Yes (with rail kit) |
|
USB Compatible |
Yes |
Input
|
Input Frequency |
50/60 Hz auto-sensing |
|
Efficiency at Full Load |
>95% |
|
Max Input Current |
5A |
|
Switching Current Capacity |
15A |
Output
|
Max Configurable Power |
300W / 500VA |
|
Output Frequency |
50/60 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform |
Pure Sine Wave |
|
Transfer Time |
6 ms typical |
Conformance
|
Certifications |
UL, cUL, FCC Part 15 Class A |
Environmental
|
Operating Temperature |
32–104°F (0–40°C) |
|
Relative Humidity |
0–95% non-condensing |
|
Operating Altitude |
0–10,000 ft |
|
Storage Temperature |
5–113°F (−15–45°C) |
|
Storage Humidity |
0–95% |
|
Storage Altitude |
0–50,000 ft |
|
Audible Noise |
<40 dBA |
|
Heat Dissipation |
~50 BTU/hr |
Batteries & Runtime
|
Included Battery Modules |
1 internal Li-ion pack |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 hours |
|
Battery Life |
8–10 years |
|
Replacement Battery |
APC SCL Li-Ion Pack |
|
Extendable Runtime |
No |
Communications & Management
|
Control Panel |
Status LEDs + buttons |
|
Alarm |
On battery, low battery, overload |
Surge Protection & Filtering
|
Surge Energy Rating |
85–120 Joules |
|
Filtering |
EMI/RFI filtering |
|
Data Line Protection |
No |
|
Let-Through Voltage |
330V |
